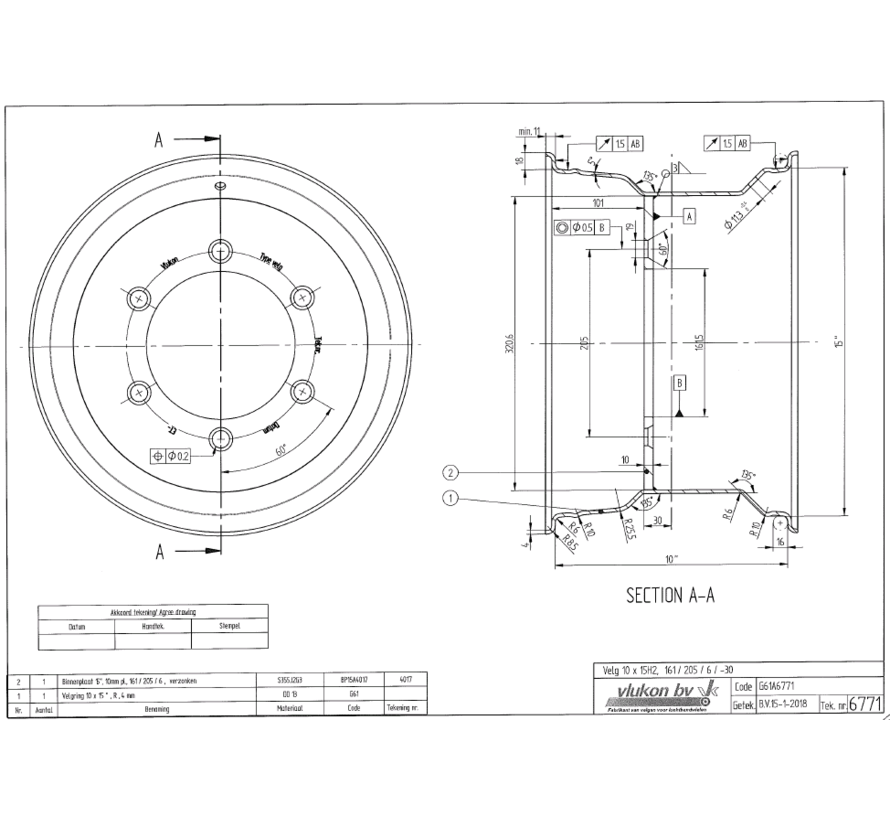

4.00 mm thick one piece welded wheel rim with double saftey hump | diameter: 15 inch | width: 10.0 inch | pcd: 205mm & center bore: 161mm l 6 bolt holes

Wheel rim 10.0X15 H2 ET: -30mm for forestry machinery, agricultural machinery, lawn mowers, horticulture transport carts
This rim can be fitted with tyre size(s):
✓ 26x12.00-12
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 10.0 inch
C - Diameter rim: 15 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO):
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 4.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 161 mm
V - Pitch circle diameter (PCD): 205 mm
W - Number of bolt / stud holes: 6
X - Studhole Ø: 19 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

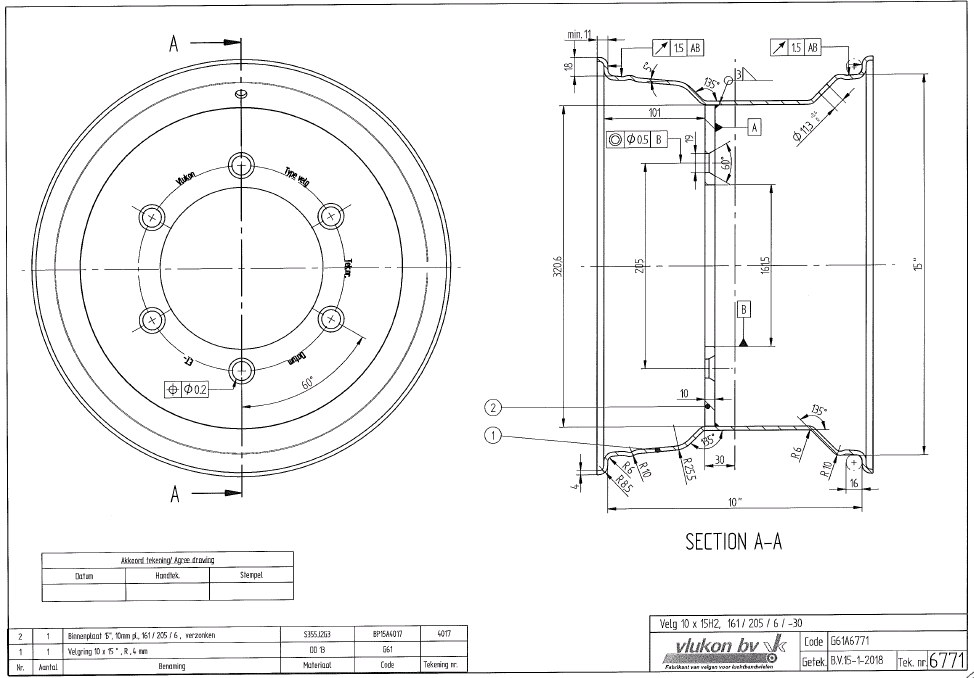

Vlukon Drawing ID: 6771
Old Vlukon ID: G61A6771
New Vlukon part number: R_10.0R15.0F4.00-2M6V1GA6771
