3.20 mm thick one piece welded wheel rim with double saftey hump | diameter: 12 inch | width: 10.50 inch | pcd: 140mm & center bore: 94mm l 5 Raised bolt holes

Wheel rim 10.50IX12 H2 for forestry machinery, agricultural machinery, lawn mowers, horticulture transport carts
This rim can be fitted with tyre size(s):
✓ 26x12.00-12
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 10.50 inch
C - Diameter rim: 12 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): I
E - Offset: Neutral / No offset
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 3.20 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 94 mm
V - Pitch circle diameter (PCD): 140 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

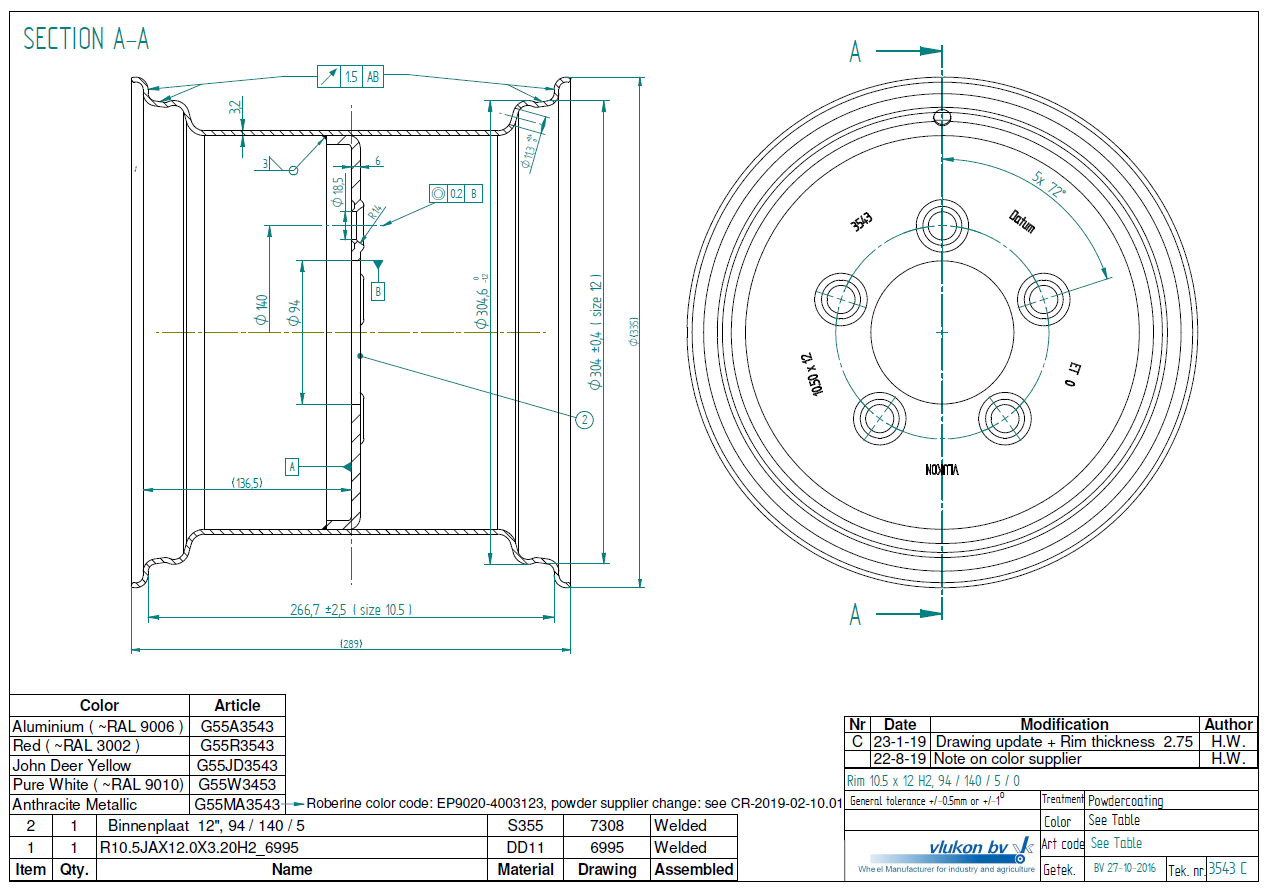

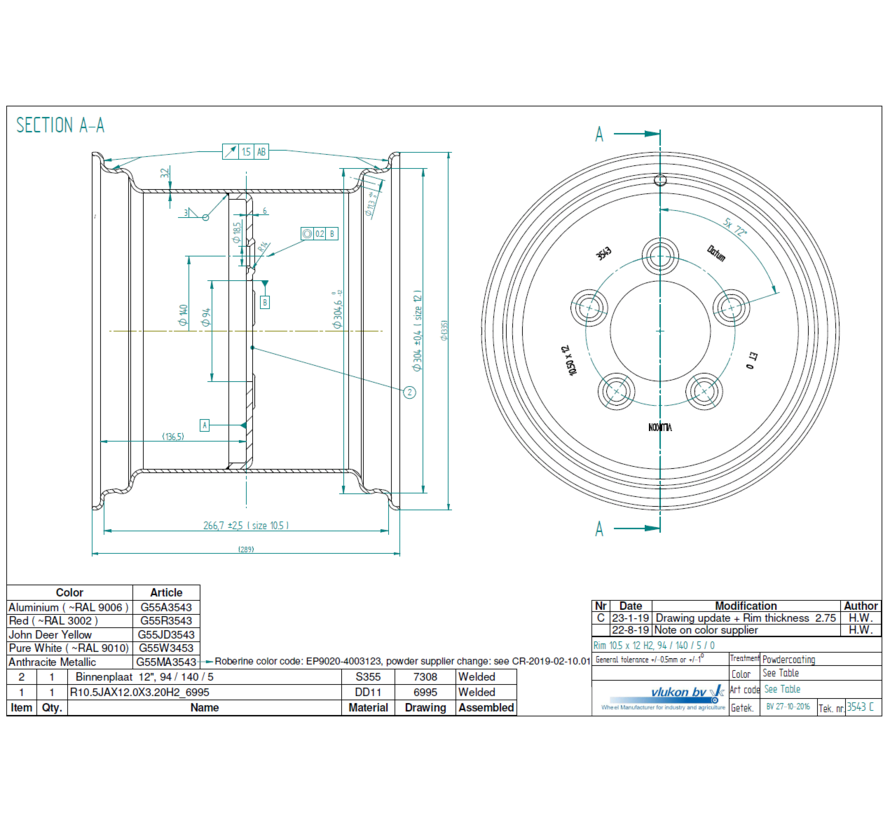

Vlukon Drawing ID: 3543
Old Vlukon ID: G55R3543
New Vlukon part number: R_10.50R12.0F3.20_2M5V4RC3543
