1.75 mm thick two piece divided rim | diameter: 4 inch | width: 2.10 inch | pcd: 70mm & center bore: 57mm l 4 bolt holes

Wheel rim 2.10-4 for horticulture transport carts, material handling, light solid industrial tires, wheelbarrows and light carts, tractors
This rim can be fitted with tyre size(s):
✓ 3.00-4
✓ 4.00-4
✓ 260x85
✓ 4.10/3.50-4
✓ 9x3.50-4
✓ 11x4.00-4


Technical details
A - Type: Assembled divided rim
B - Rim width: 2.10 inch
C - Diameter rim: 4 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO):
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 57 mm
V - Pitch circle diameter (PCD): 70 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 8,5 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

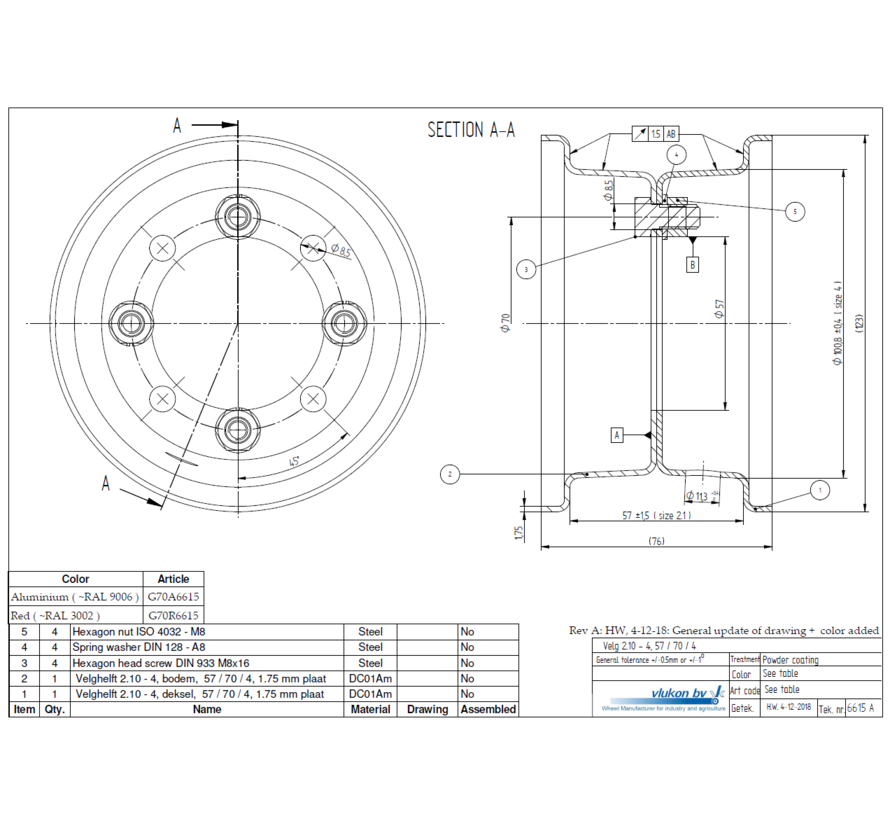

Vlukon Drawing ID: 6615
Old Vlukon ID: G70A6615
New Vlukon part number: R_2.10-4.00F1.75__M4V_GA6615
