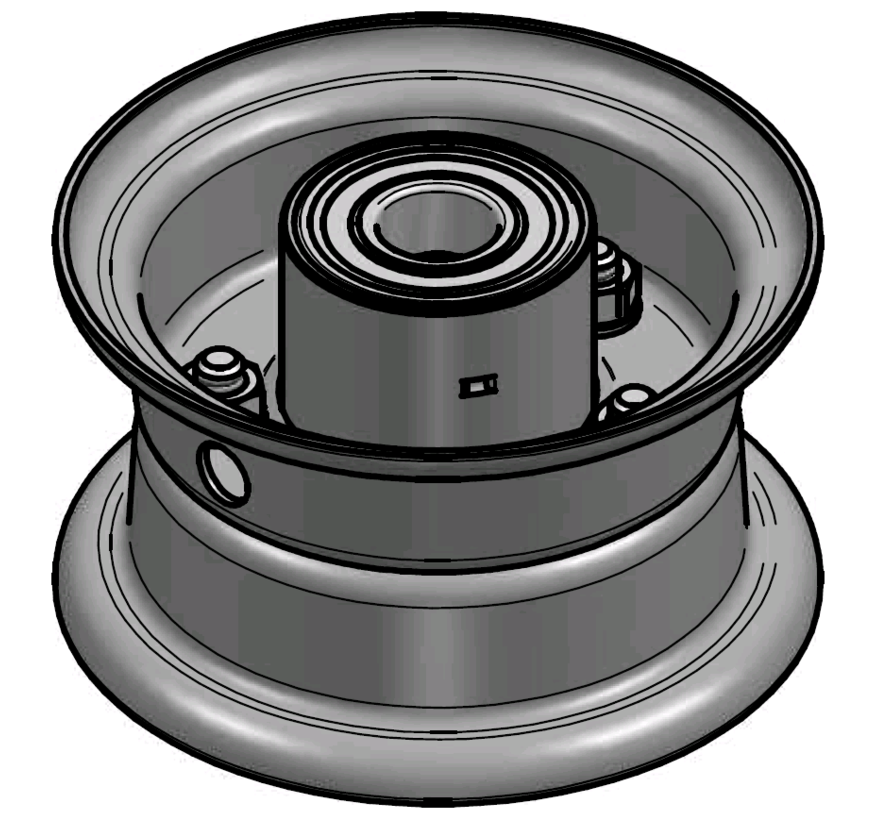

1.75 mm thick two piece divided rim | diameter: 4 inch | width: 2.10 inch | bearing in hub:

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 2.10-4 for horticulture transport carts, material handling, light solid industrial tires, wheelbarrows and light carts, tractors
This rim can be fitted with tyre size(s):
✓ 3.00-4
✓ 4.00-4
✓ 260x85
✓ 4.10/3.50-4
✓ 9x3.50-4
✓ 11x4.00-4

Technical details
A - Type: Assembled divided rim
B - Rim width: 2.10 inch
C - Diameter rim: 4 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO):
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 75 mm
J - Fitting length: 75 mm
L - Outer diameter hub: 51 mm
P - Axle hole diameter: 25/20 mm
Thickness of hub: 2 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

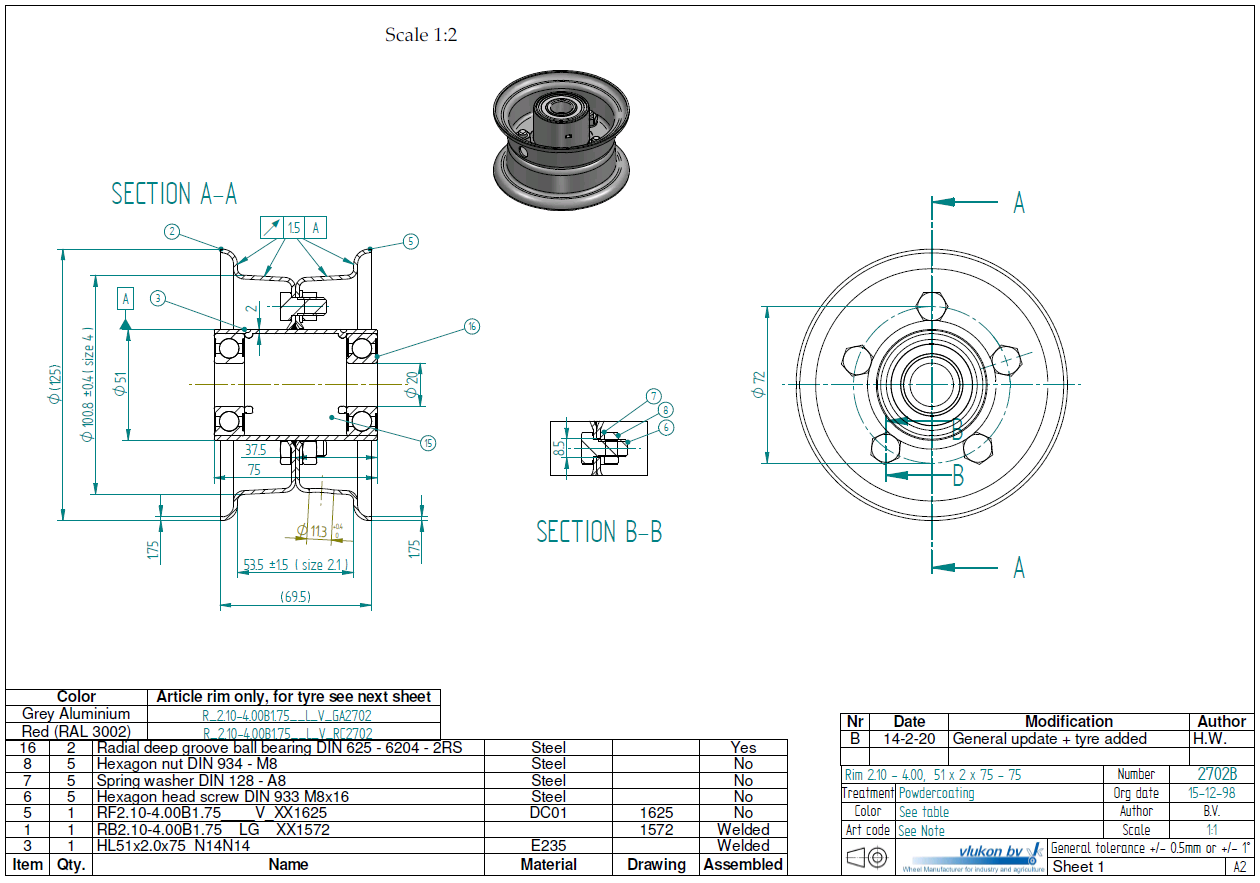

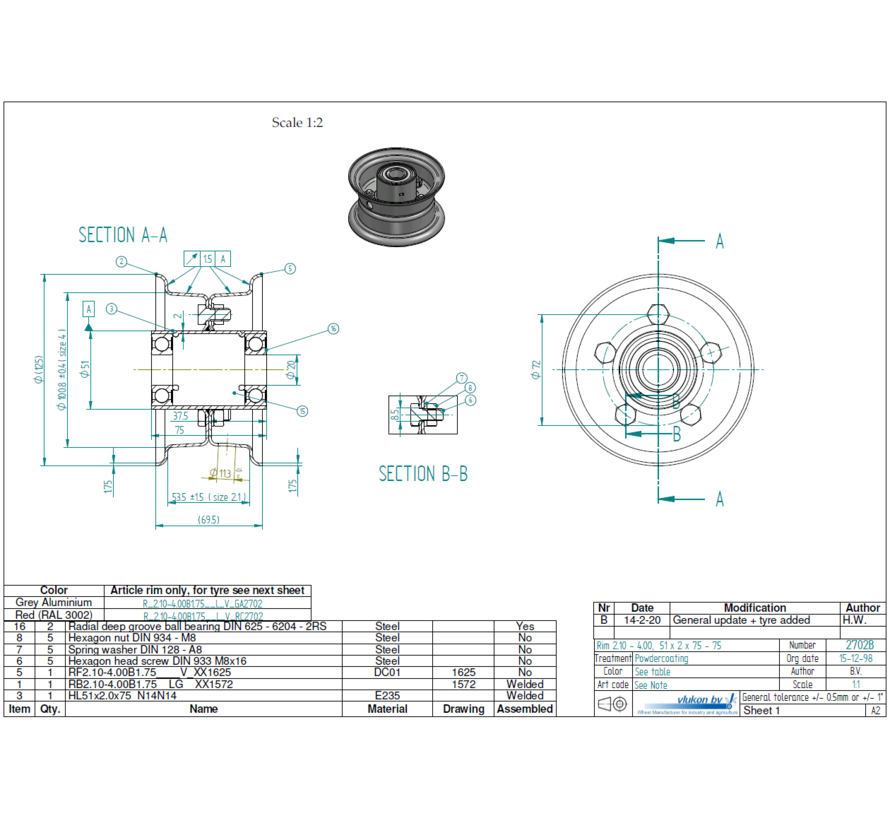

Vlukon Drawing ID: 2702
Old Vlukon ID: A70A2702
New Vlukon part number: R_2.10-4.00B1.75__L_V_GA2702
