2.50 mm thick two piece divided rim | diameter: 8 inch | width: 2.25 inch | pcd: 100mm & center bore: 61mm l 4 Raised bolt holes

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 2.25-8 ET: 7mm for airfiels ground support, agricultural machinery, lawn mowers, horticulture transport carts, hay tedders, material handling, light solid industrial tires, wheelbarrows and light carts, tractors
This rim can be fitted with tyre size(s):
✓ contact us

Technical details
A - Type: Assembled divided rim
B - Rim width: 2.25 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO):
E - Offset:
F - Safety hump: No hump
G - Rim thickness: 2.50 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 61 mm
V - Pitch circle diameter (PCD): 100 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 13,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

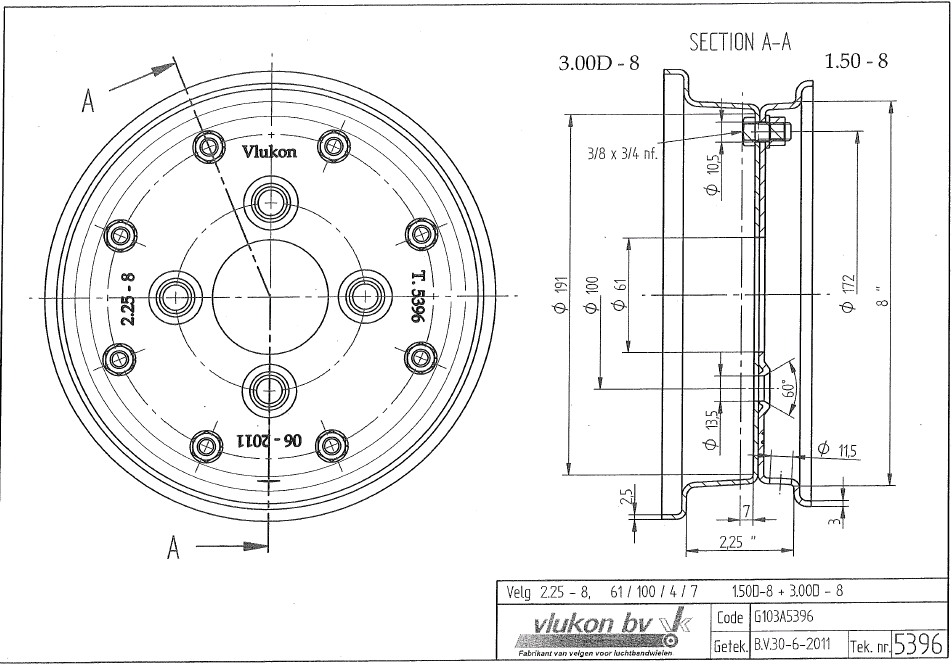

Vlukon Drawing ID: 5396
Old Vlukon ID: G103A5396
New Vlukon part number: R_2.25-8.00F2.50+_M4V4GA5396

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 2.50 mm thick two piece divided rim | diameter: 8 inch | width: 2.25 inch | pcd: 100mm & center bore: 61mm l 4 Raised bolt holes

Rim size 2.25-8 ET: +7 mm | 2.50 mm thick divided RIM | diameter: 8 inch | width: 2.25 inch | pcd: 100mm & center bore: 61mm l 4 Raised bolt holes
