Wheel rim 2.25-8 ET: 7mm for airfiels ground support, agricultural machinery, lawn mowers, horticulture transport carts, hay tedders, material handling, light solid industrial tires, wheelbarrows and light carts, tractors
This rim can be fitted with tyre size(s):
✓ contact us
Technical details
A - Type: Assembled divided rim
B - Rim width: 2.25 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO):
E - Offset:
F - Safety hump: No hump
G - Rim thickness: 2.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 85 mm
V - Pitch circle diameter (PCD): 130 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

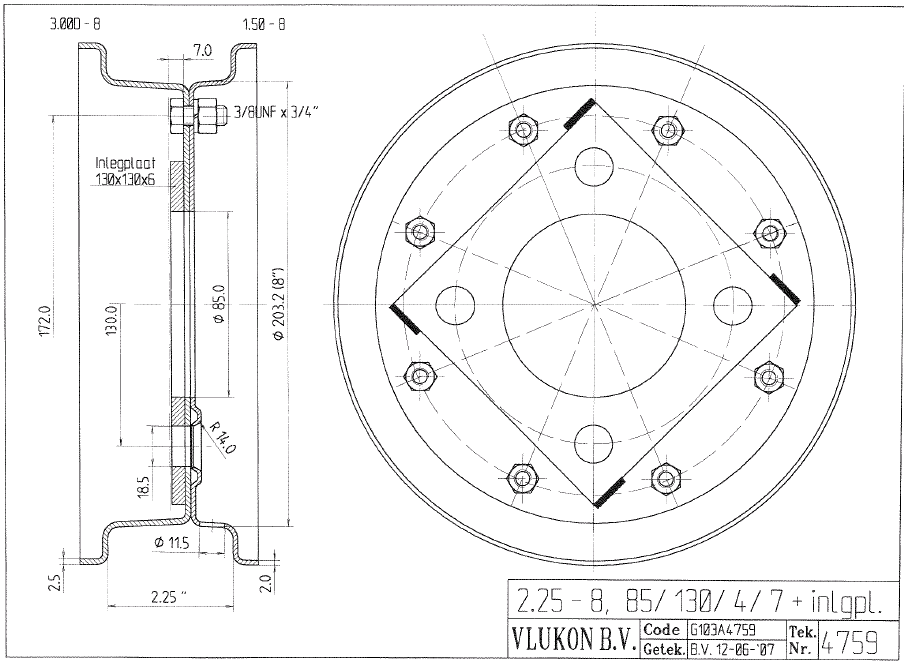

Vlukon Drawing ID: 4759
Old Vlukon ID: G103R4759
New Vlukon part number: R_2.25-8.00F2.00+_M4V4RC4759
2.00 mm thick two piece divided rim | diameter: 8 inch | width: 2.25 inch | pcd: 130mm & center bore: 85mm l 4 Raised bolt holes
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code G103R4759
- SKU R_2.25-8.00F2.00+_M4V4RC4759
Specifications
