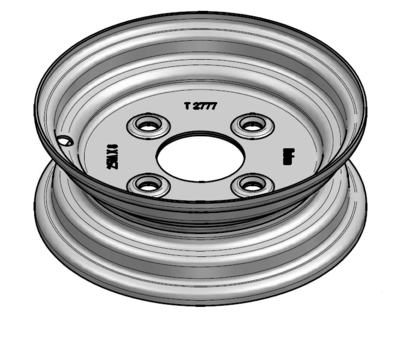

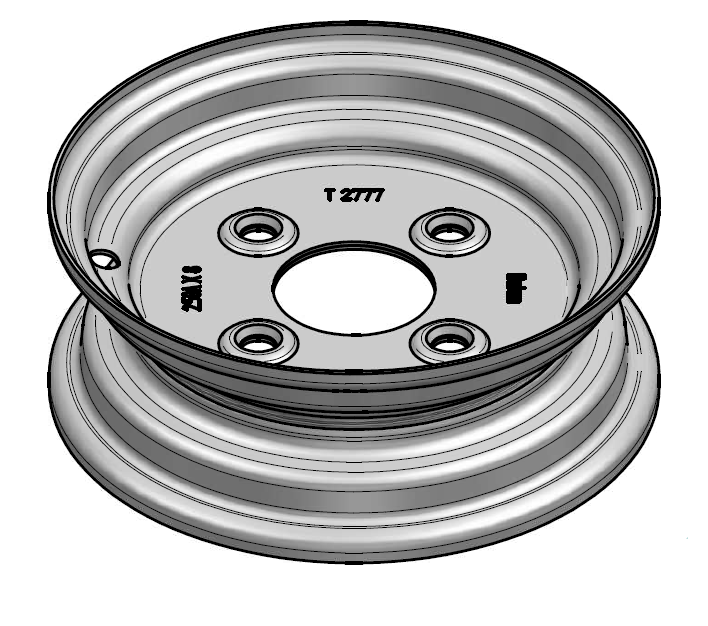

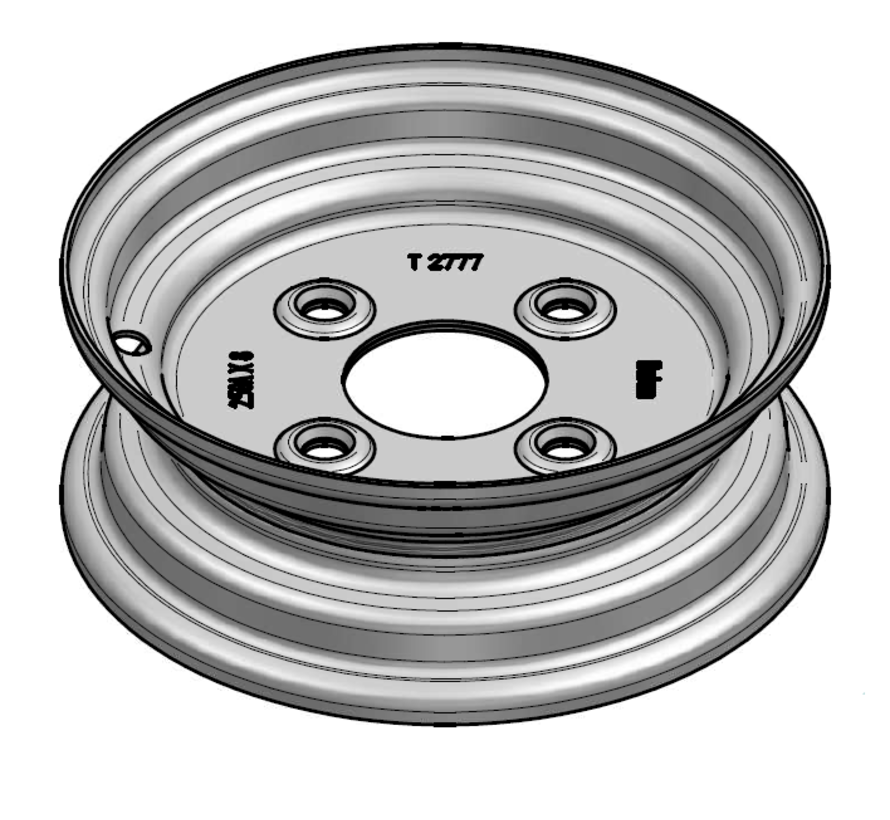

1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, pcd: 100mm & center bore: 60mm l 4 Raised bolt holes

Wheel rim 2.50AX8 for material handling, wheelbarrows and light carts, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.00-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 2.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 100 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 13,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: White
Ral Colour : RAL 9010

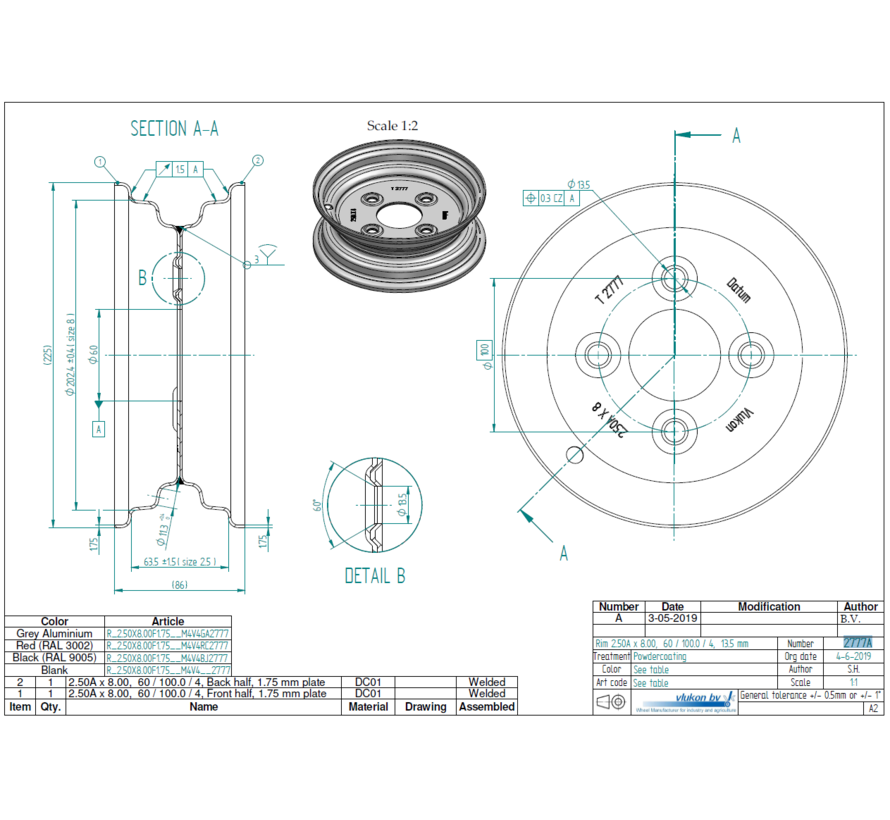

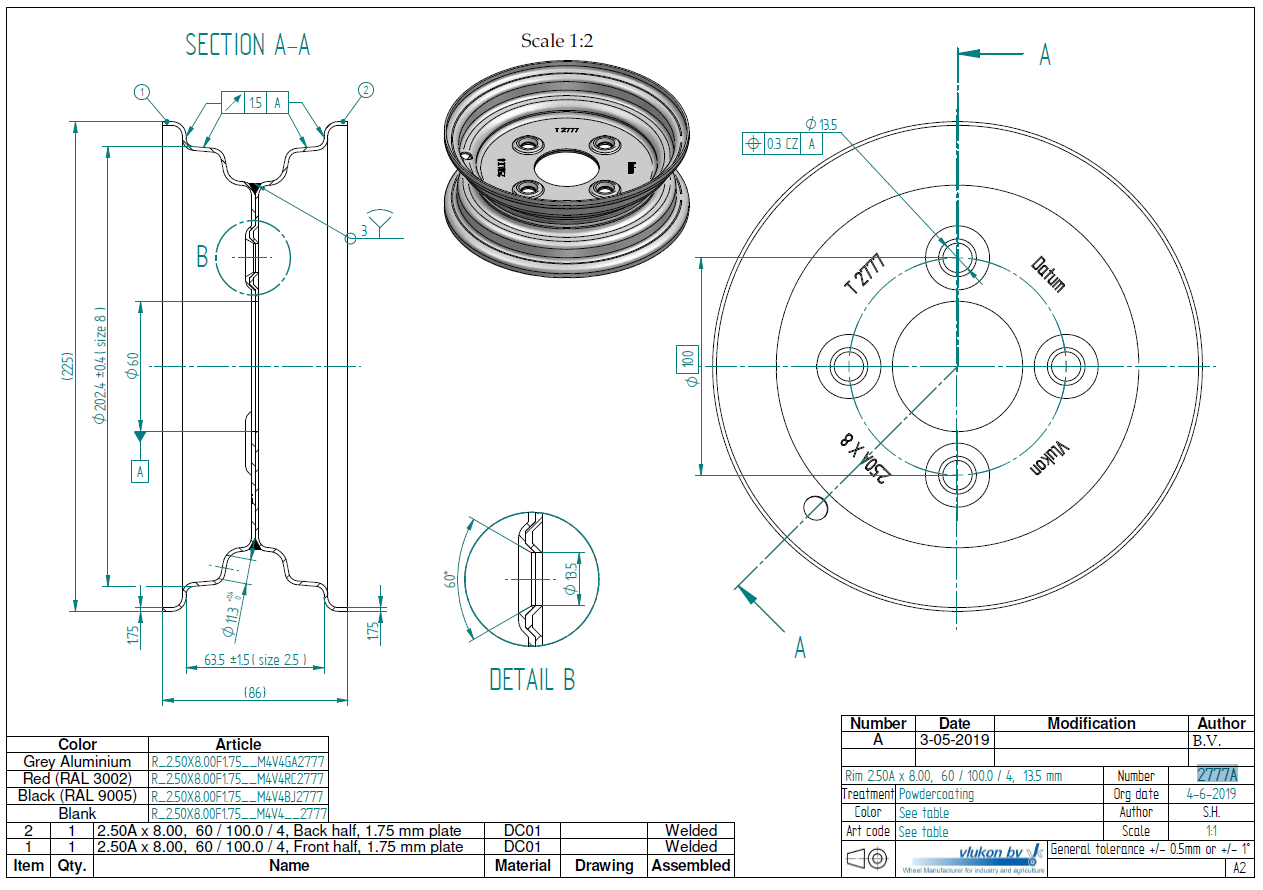

Vlukon Drawing ID: 2777
Old Vlukon ID: G22W2777
New Vlukon part number: R_2.50X8.00F1.75__M4V4WP2777
