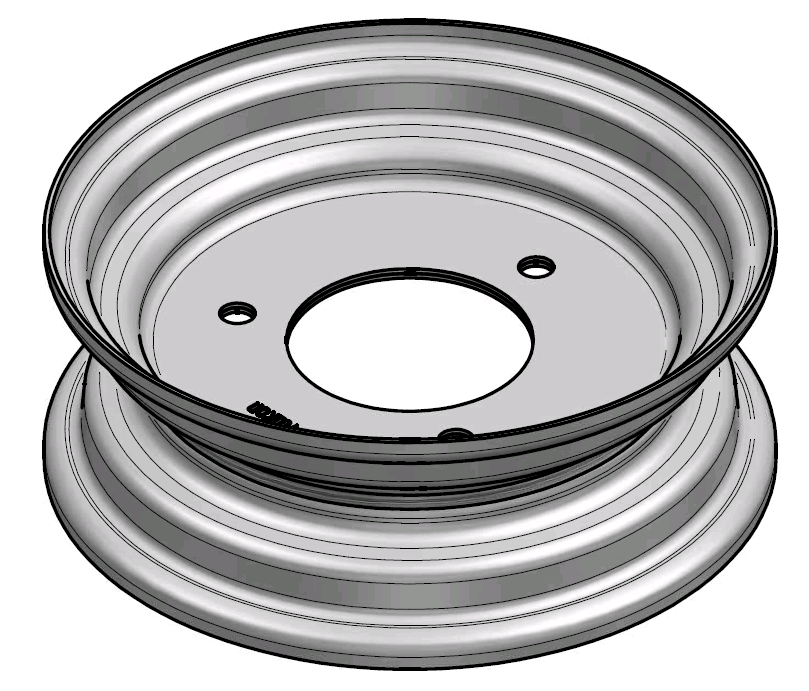

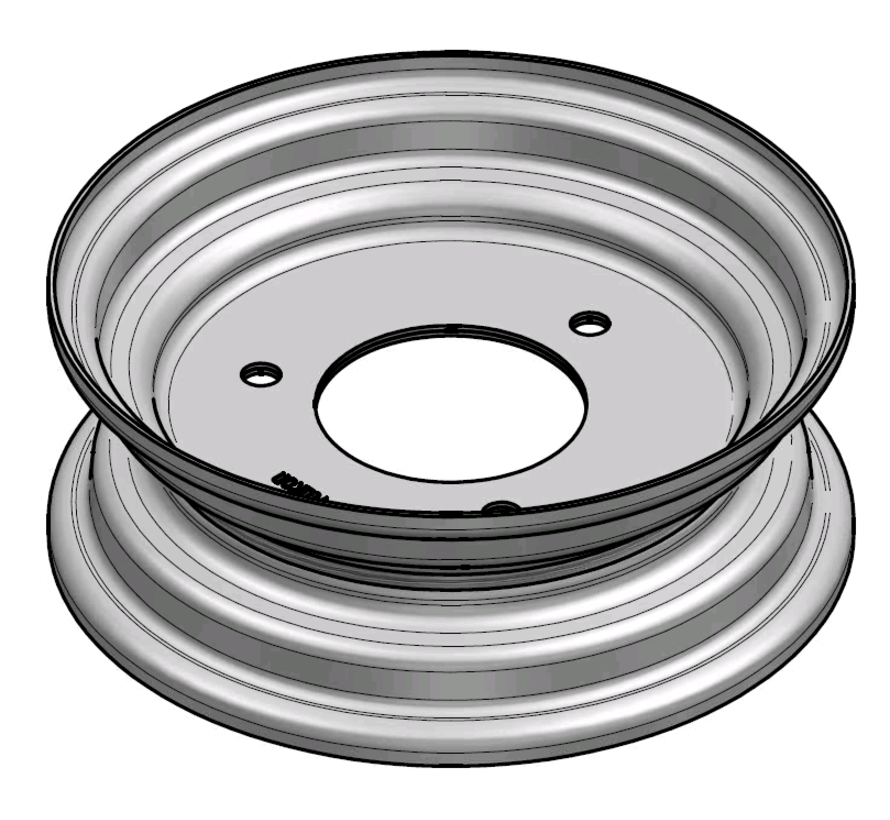

1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, pcd: 110mm & center bore: 76mm l 3 bolt holes

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 2.50AX8 for material handling, wheelbarrows and light carts, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.00-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 2.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 76 mm
V - Pitch circle diameter (PCD): 110 mm
W - Number of bolt / stud holes: 3
X - Studhole Ø: 11 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

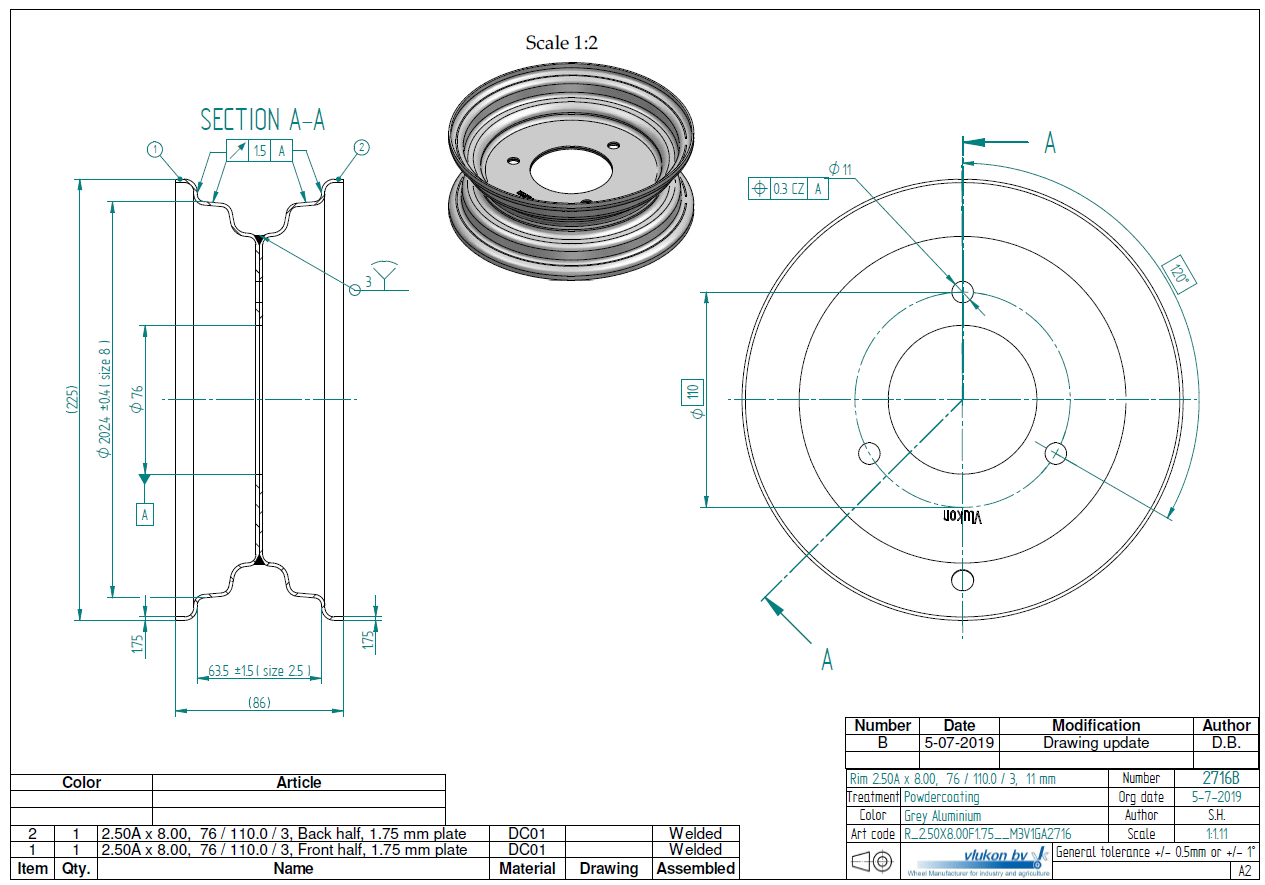

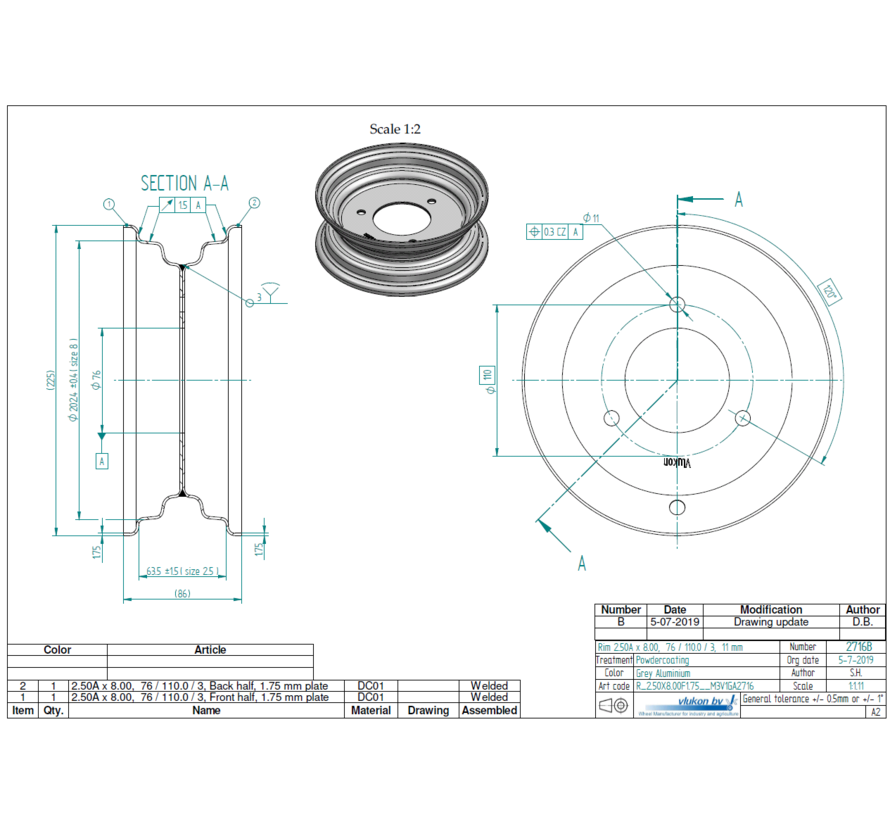

Vlukon Drawing ID: 2716
Old Vlukon ID: G22A2716
New Vlukon part number: R_2.50X8.00F1.75__M3V1GA2716

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, pcd: 110mm & center bore: 76mm l 3 bolt holes

Rim size 2.50AX8 | 1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, pcd: 110mm & center bore: 76mm l 3 bolt holes
