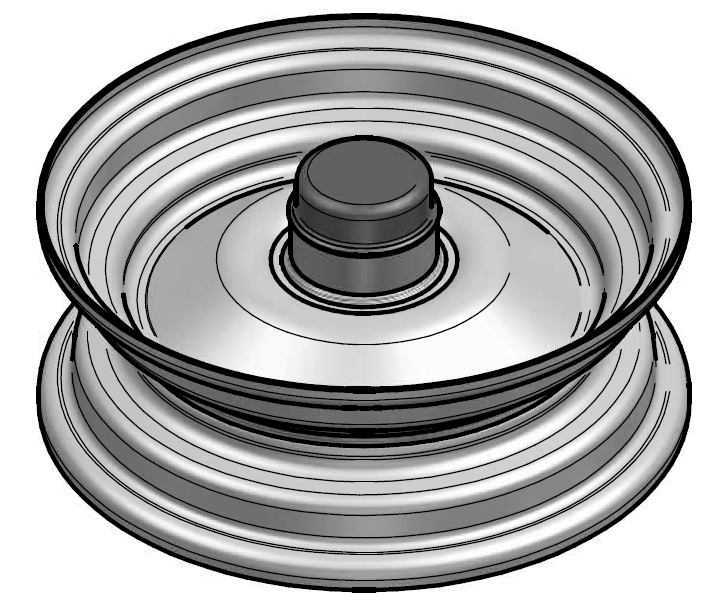

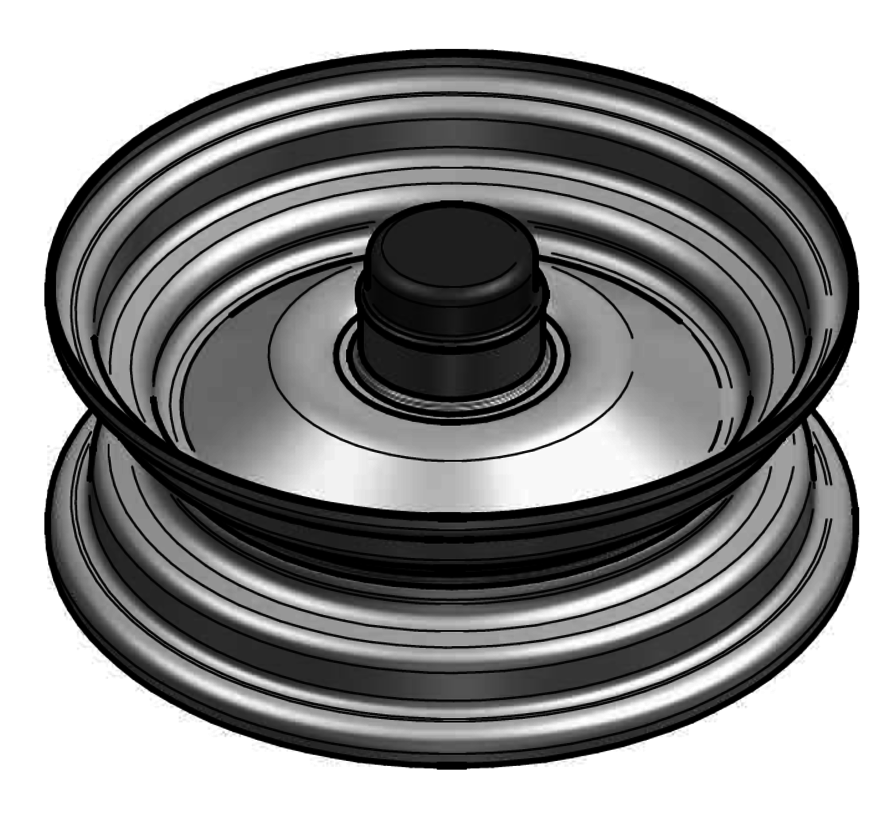

1.25 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, bearing in hub: 6005-2RS

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 2.50AX8 for material handling, wheelbarrows and light carts, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.00-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 2.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.25 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 74 mm
J - Fitting length: 66 mm
L - Outer diameter hub: 51 mm
N - Bearing in hub: 6005-2RS mm
P - Axle hole diameter: 25 mm
Thickness of hub: 2 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

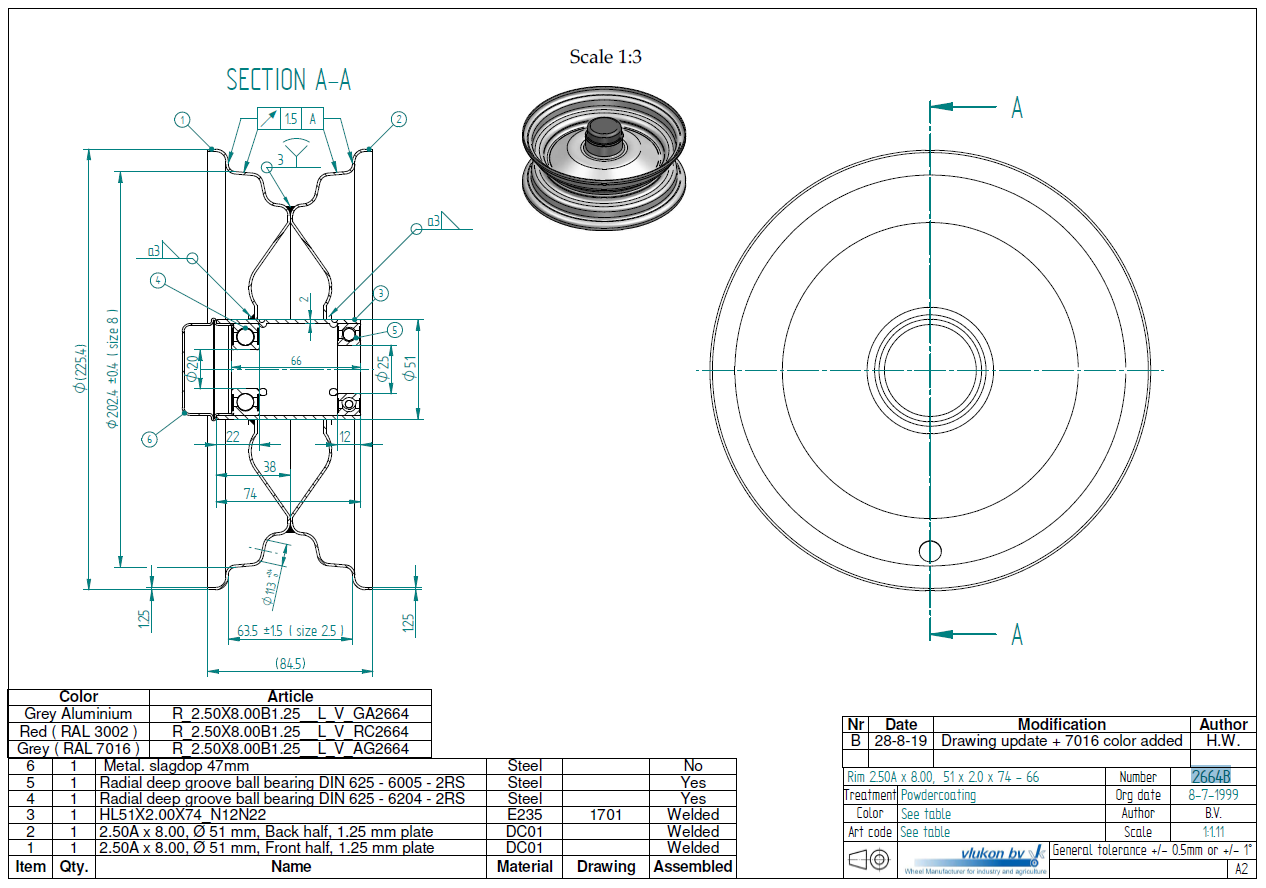

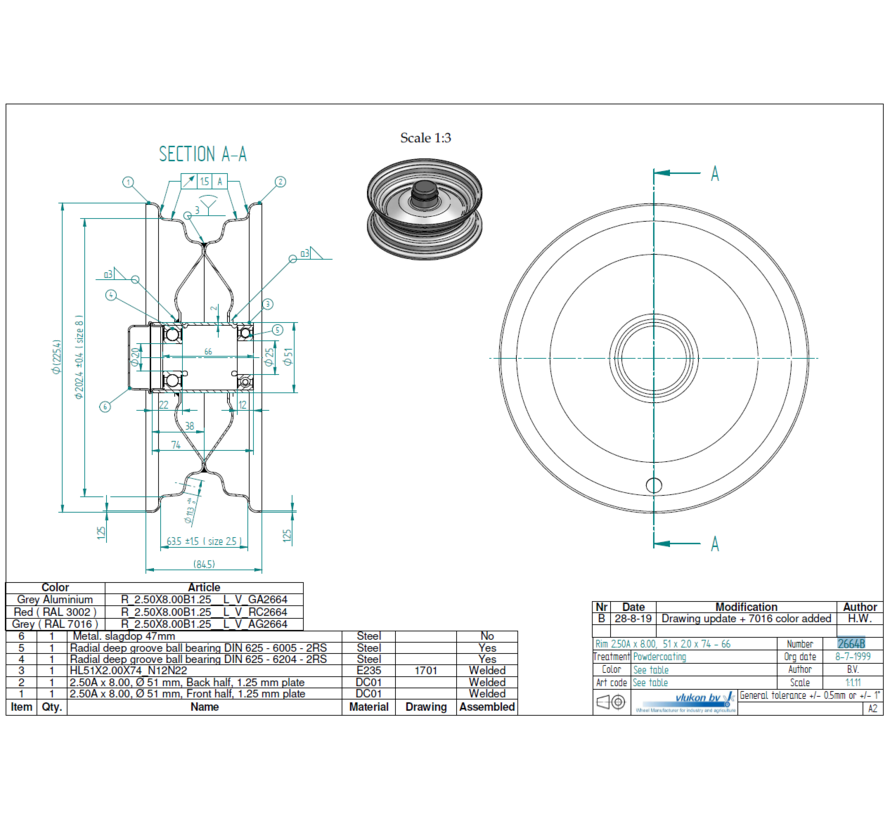

Vlukon Drawing ID: 2664
Old Vlukon ID: B23R2664
New Vlukon part number: R_2.50X8.00B1.25__L_V_RC2664

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 1.25 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, bearing in hub: 6005-2RS

Rim size 2.50AX8 | 1.25 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, bearing in hub: 6005-2RS
