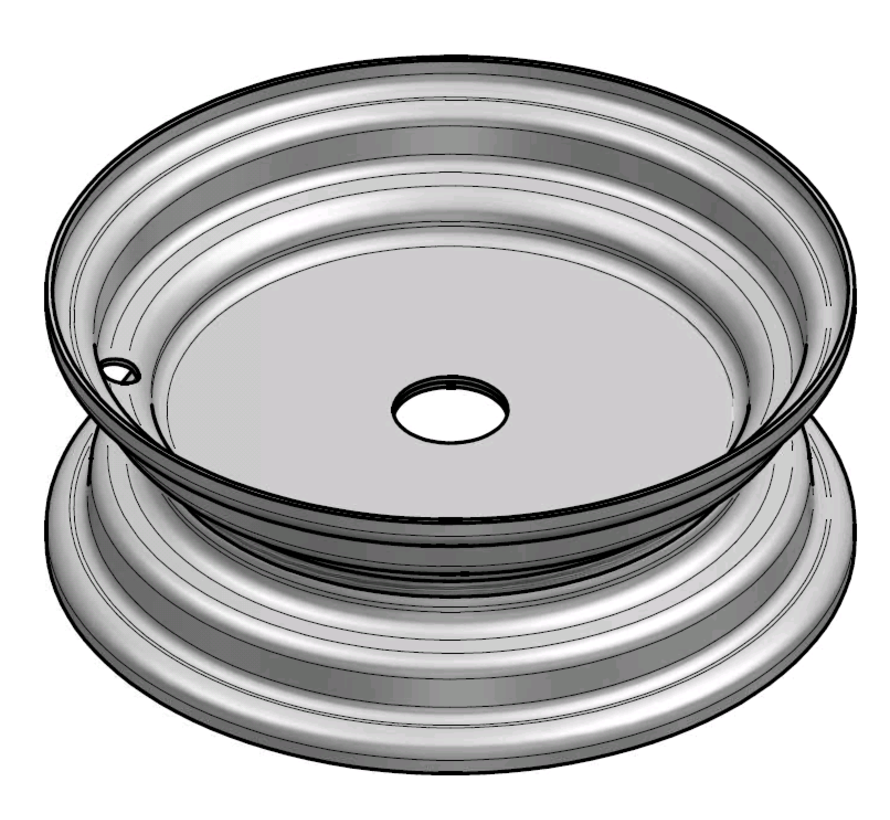

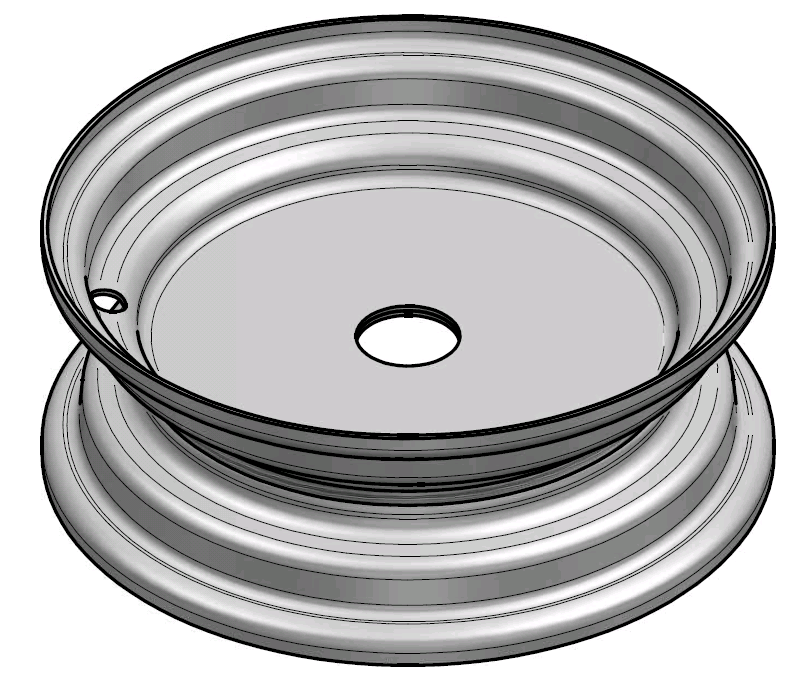

1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch,

Product description

Wheel rim 2.50AX8 for material handling, wheelbarrows and light carts, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.00-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 2.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: _
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Blank

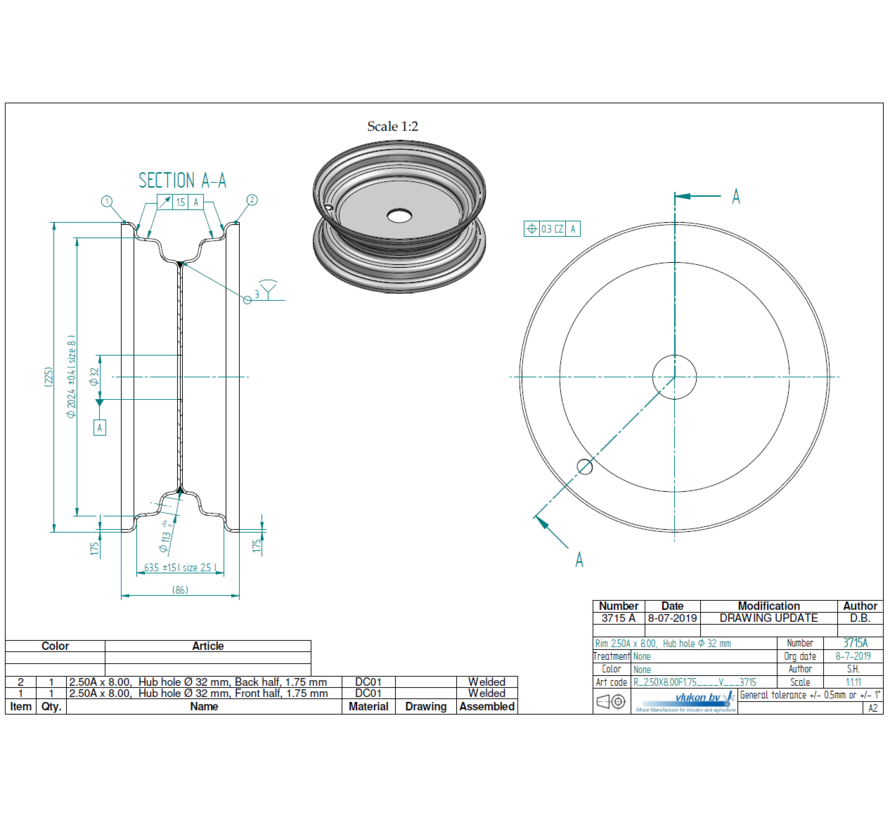

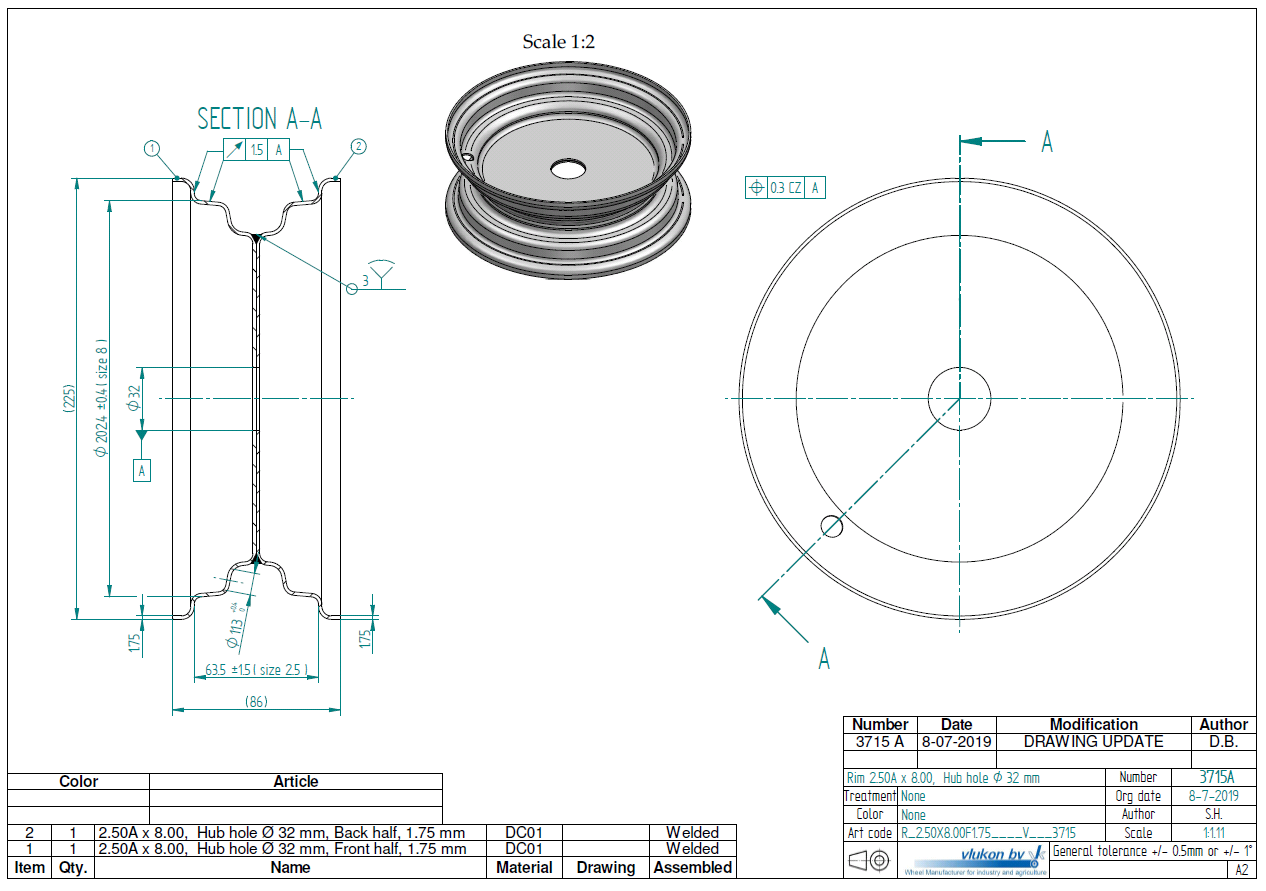

Vlukon Drawing ID: 3715
Old Vlukon ID: G22T3715BLA
New Vlukon part number: R_2.50X8.00F1.75____V___3715

Customizations & Development

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch,

Rim size 2.50AX8 | 1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch,

Enter the number of articles below and click

Ok

  • Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
  • Short delivery times
  • Highest quality available
  • Ask us any colour you need

Request special product

Download PDF

Product information

  • Article code G22T3715BLA
  • SKU R_2.50X8.00F1.75____V___3715
