Wheel rim 2.50C-4 for airfiels ground support, material handling, light solid industrial tires
This rim can be fitted with tyre size(s):
✓ contact us
Technical details
A - Type: Assembled divided rim
B - Rim width: 2.50 inch
C - Diameter rim: 4 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): C
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 3.00 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 75 mm
J - Fitting length: 75 mm
L - Outer diameter hub: 51 mm
P - Axle hole diameter: 25/20 mm
Thickness of hub: 2 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Blank

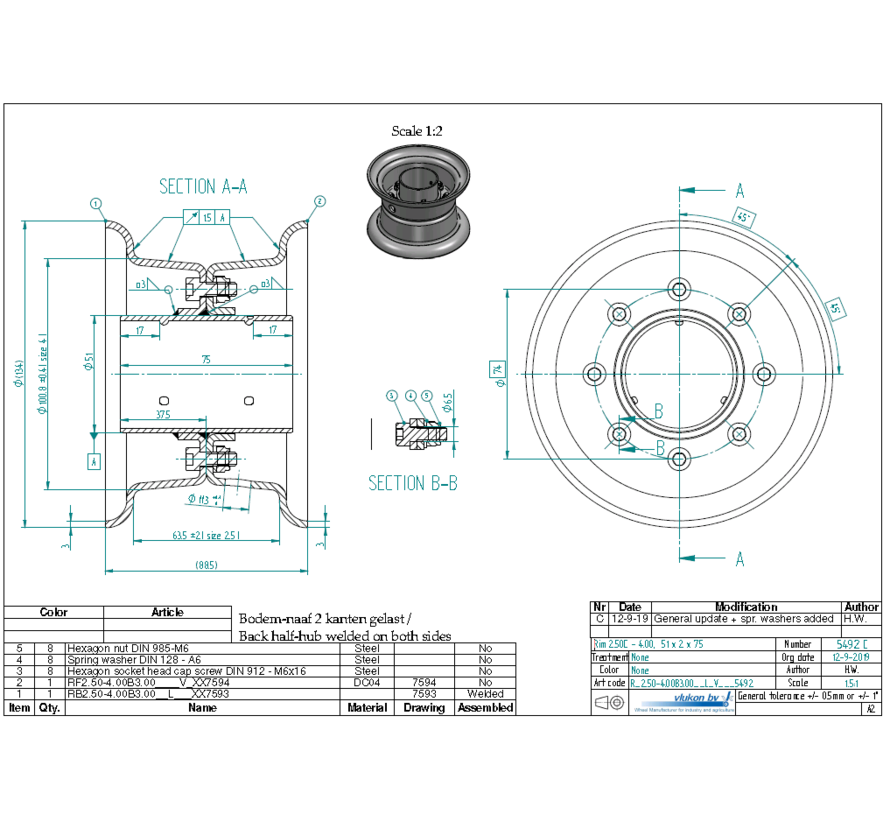

Vlukon Drawing ID: 5492
Old Vlukon ID: A73N5492
New Vlukon part number: R_2.50-4.00B3.00__L_V___5492
3.00 mm thick two piece divided rim | diameter: 4 inch | width: 2.50 inch | bearing in hub:
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code A73N5492
- SKU R_2.50-4.00B3.00__L_V___5492
