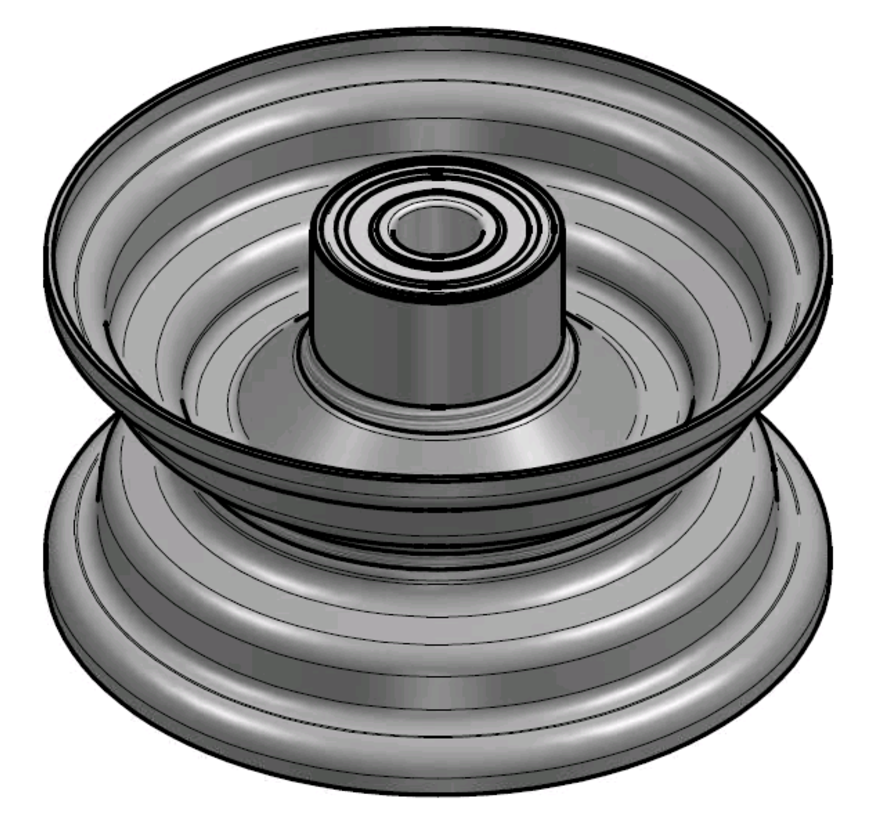

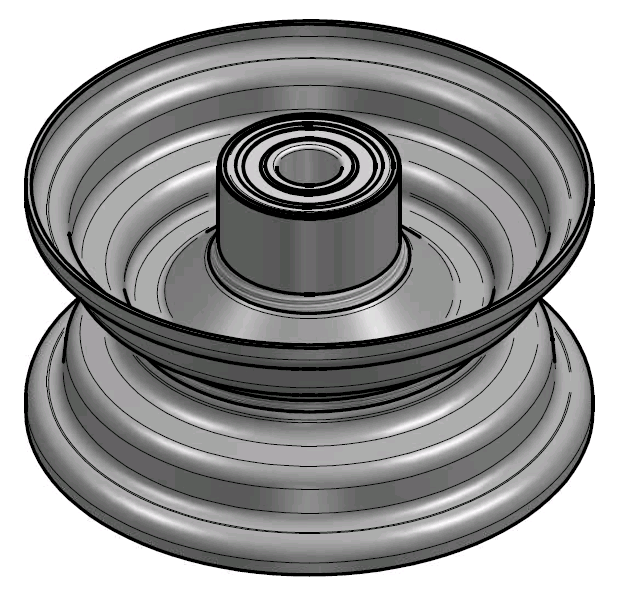

1.75 mm thick one piece welded RIM, diameter: 6 inch, width: 2.50 inch, bearing in hub: 6304-2RS

Wheel rim 2.50X6 for lawn mowers, material handling, light solid industrial tires, wheelbarrows and light carts, hand trolley, hand trolley
This rim can be fitted with tyre size(s):
✓ 3.50-6
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 2.50 inch
C - Diameter rim: 6 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO):
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 100 mm
J - Fitting length: 100 mm
L - Outer diameter hub: 56 mm
N - Bearing in hub: 6304-2RS mm
P - Axle hole diameter: 20 mm
Thickness of hub: 2 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

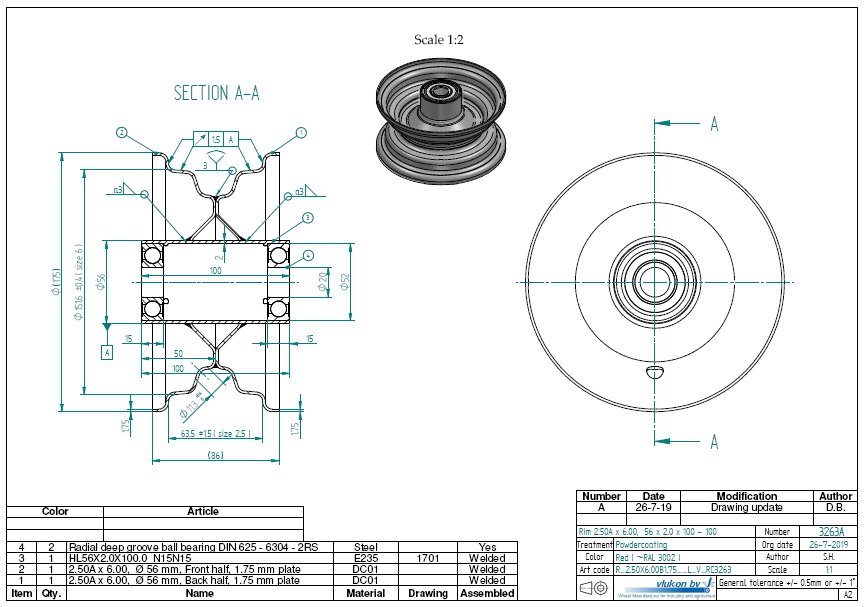

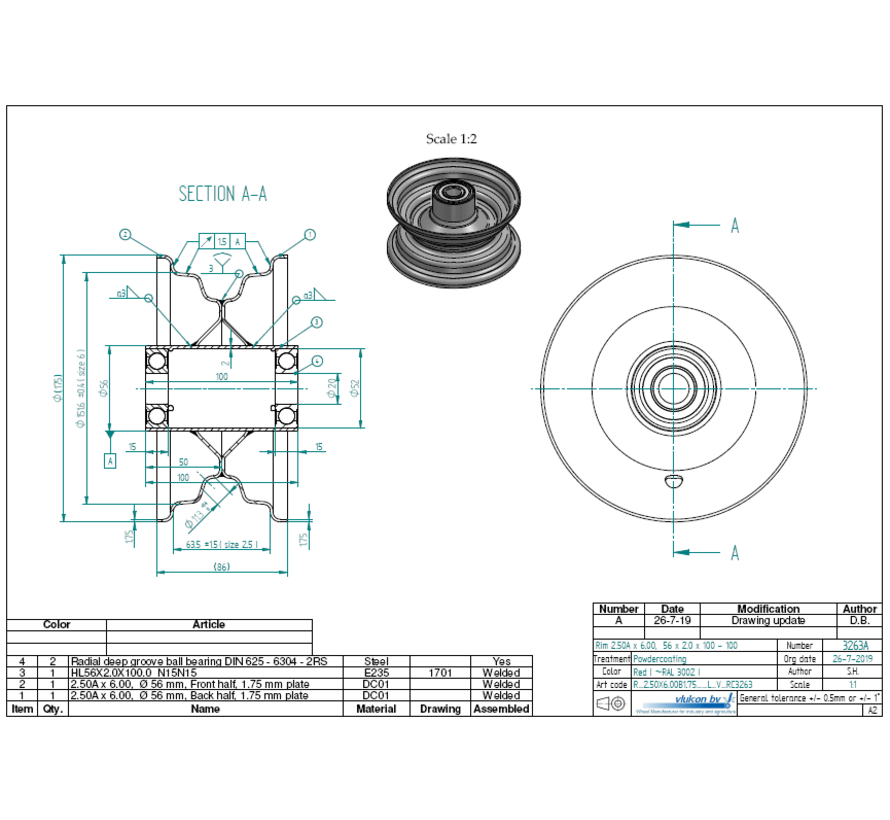

Vlukon Drawing ID: 3263
Old Vlukon ID: A15R3263
New Vlukon part number: R_2.50X6.00B1.75__L_V_RC3263
