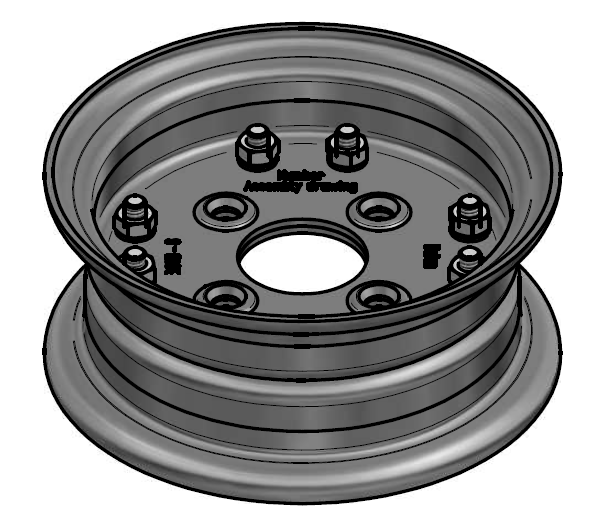

4.00 mm thick two piece divided rim | diameter: 8 inch | width: 3.00 inch | pcd: 100mm & center bore: 60mm l 4 Raised bolt holes

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 3.00D-8 for airfiels ground support, agricultural machinery, horticulture transport carts, material handling, industrial high load trailers, aerial lift, forklift
This rim can be fitted with tyre size(s):
✓ 5.00-8
✓ 4.00-8
✓ 15x4.50-8

Technical details
A - Type: Assembled divided rim
B - Rim width: 3.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 4.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 100 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 13,5 mm
Y - Studhole shape: Raised
AB - Valve hole: _
Paint finish: Powder coating
Colour: Grey Aluminium

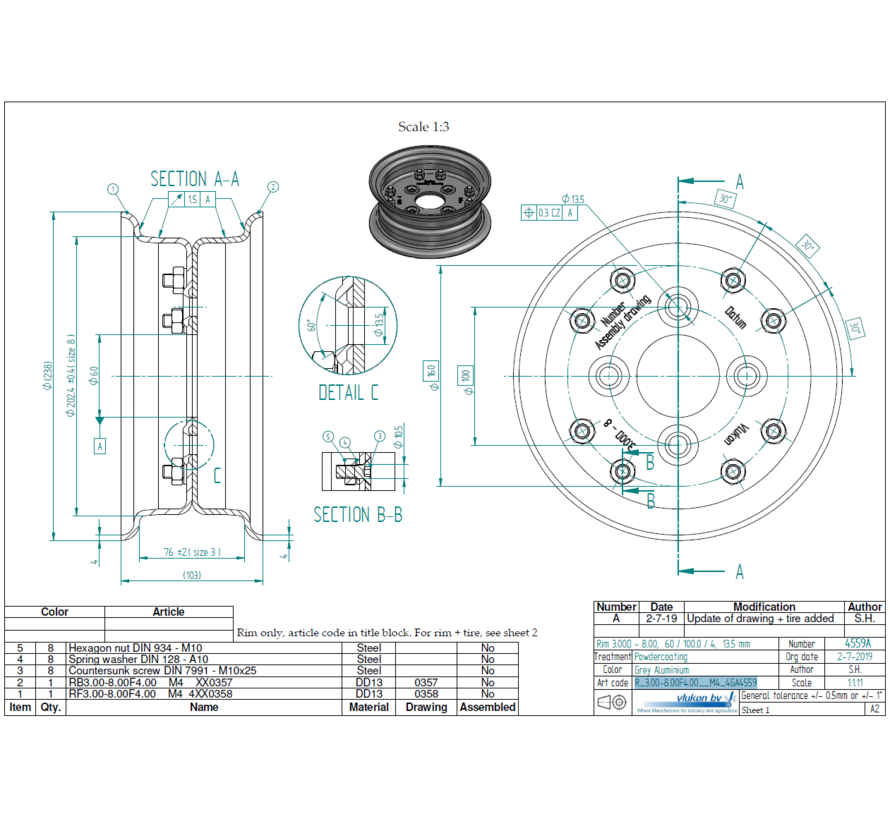

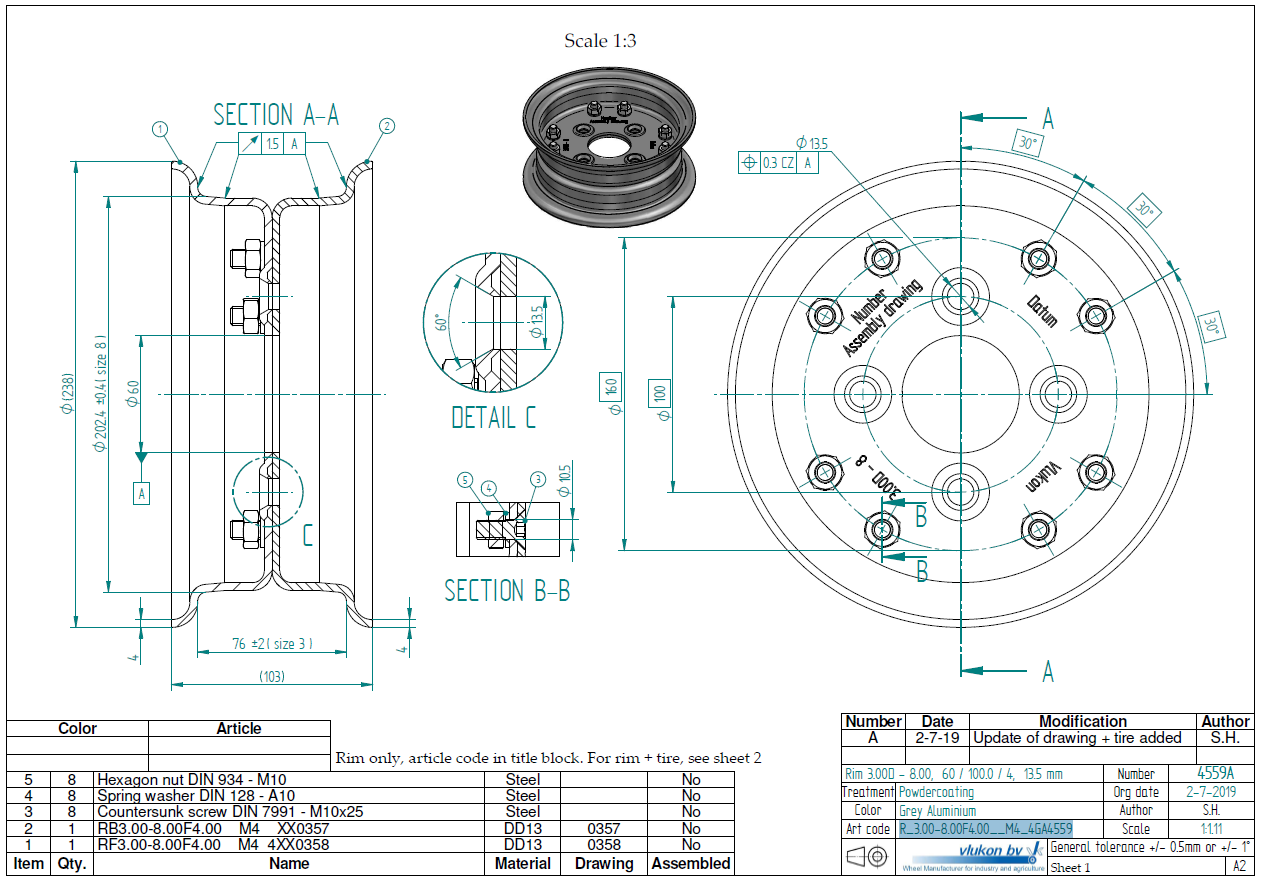

Vlukon Drawing ID: 4559
Old Vlukon ID: D810A4559
New Vlukon part number: R_3.00-8.00F4.00__M4_4GA4559
