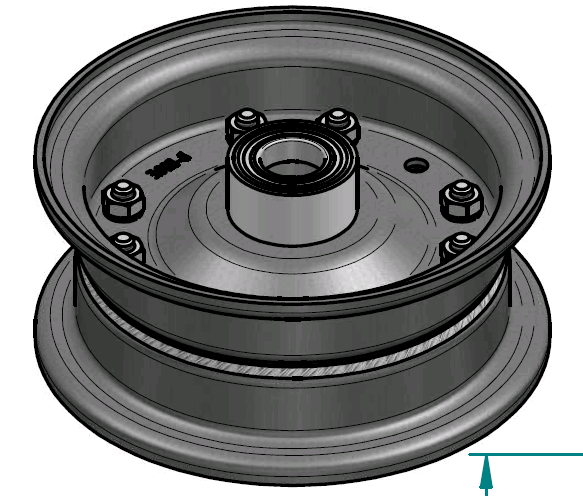

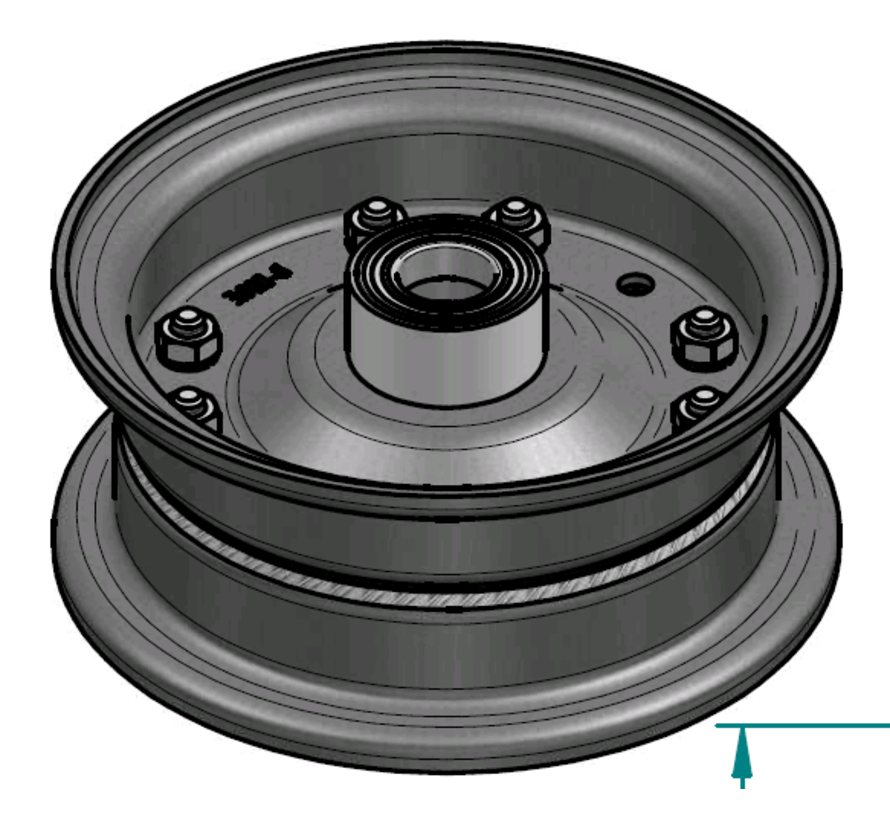

4.00 mm thick two piece divided rim | diameter: 8 inch | width: 3.00 inch | bearing in hub: 6006-2RS

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 3.00D-8 for airfiels ground support, agricultural machinery, horticulture transport carts, material handling, industrial high load trailers, aerial lift, forklift
This rim can be fitted with tyre size(s):
✓ 5.00-8
✓ 4.00-8
✓ 15x4.50-8

Technical details
A - Type: Assembled divided rim
B - Rim width: 3.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 4.00 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 100 mm
J - Fitting length: 100 mm
L - Outer diameter hub: 60 mm
N - Bearing in hub: 6006-2RS mm
P - Axle hole diameter: 30 mm
Thickness of hub: 6 mm
AB - Valve hole: _
Paint finish: Powder coating
Colour: Grey Aluminium

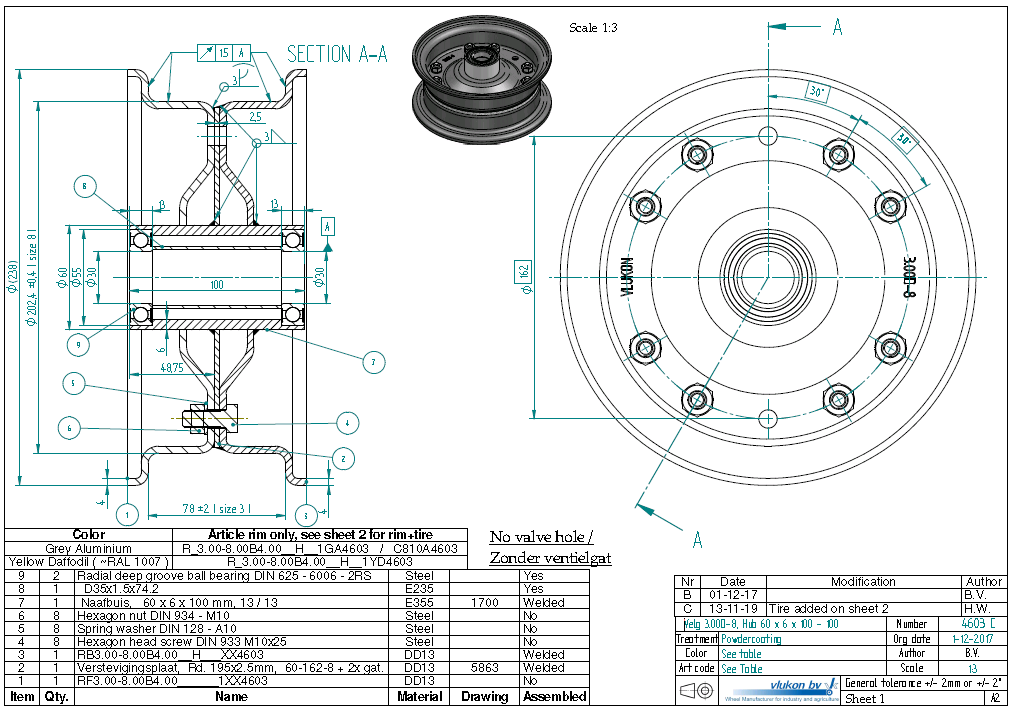

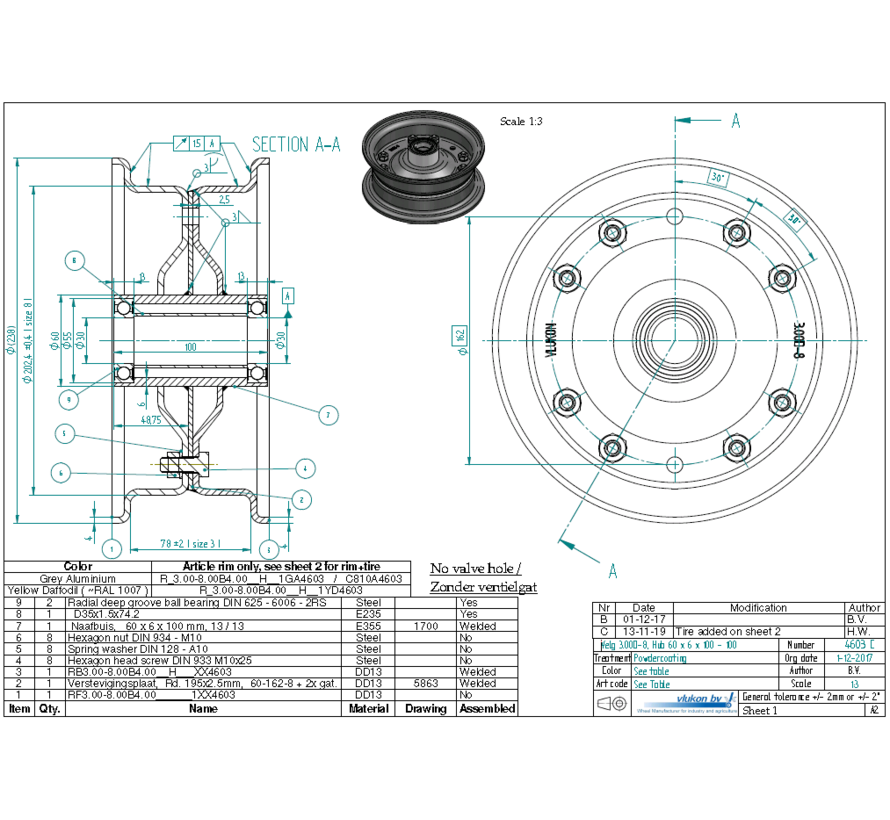

Vlukon Drawing ID: 4603
Old Vlukon ID: C810A4603
New Vlukon part number: R_3.00-8.00B4.00__H__1GA4603

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 4.00 mm thick two piece divided rim | diameter: 8 inch | width: 3.00 inch | bearing in hub: 6006-2RS

Rim size 3.00D-8 | 4.00 mm thick divided RIM | diameter: 8 inch | width: 3.00 inch | bearing in hub: 6006-2RS

Quantity

Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
Short delivery times
Highest quality available
Ask us any colour you need
