Wheel rim 3.00D-8 for airfiels ground support, agricultural machinery, horticulture transport carts, material handling, industrial high load trailers, aerial lift, forklift
This rim can be fitted with tyre size(s):
✓ 5.00-8
✓ 4.00-8
✓ 15x4.50-8
Technical details
A - Type: Assembled divided rim
B - Rim width: 3.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 4.00 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 90 mm
J - Fitting length: 90 mm
L - Outer diameter hub: 60 mm
N - Bearing in hub: 6006-2RS mm
P - Axle hole diameter: 30 mm
Thickness of hub: 6 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

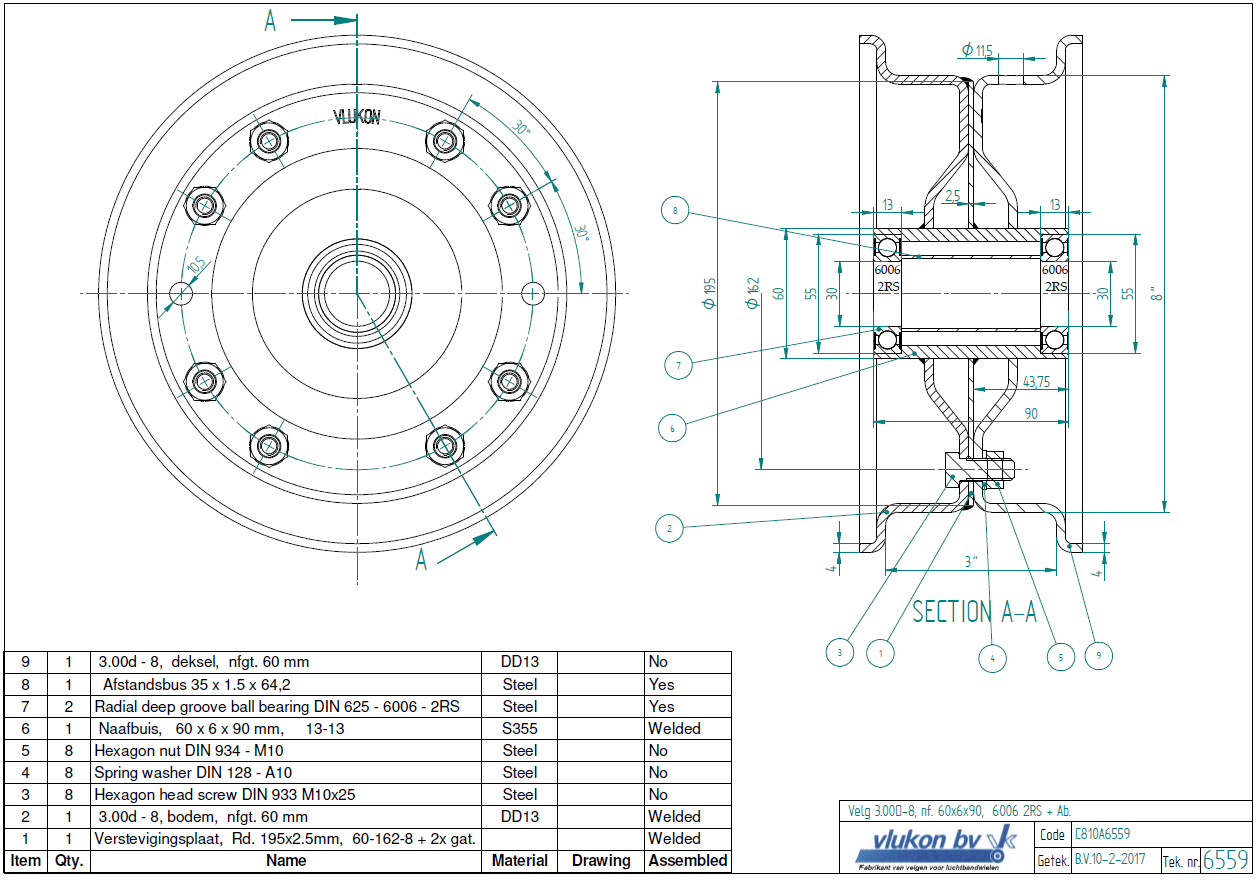

Vlukon Drawing ID: 6559
Old Vlukon ID: C810A6559
New Vlukon part number: R_3.00-8.00B4.00__H_V_GA6559

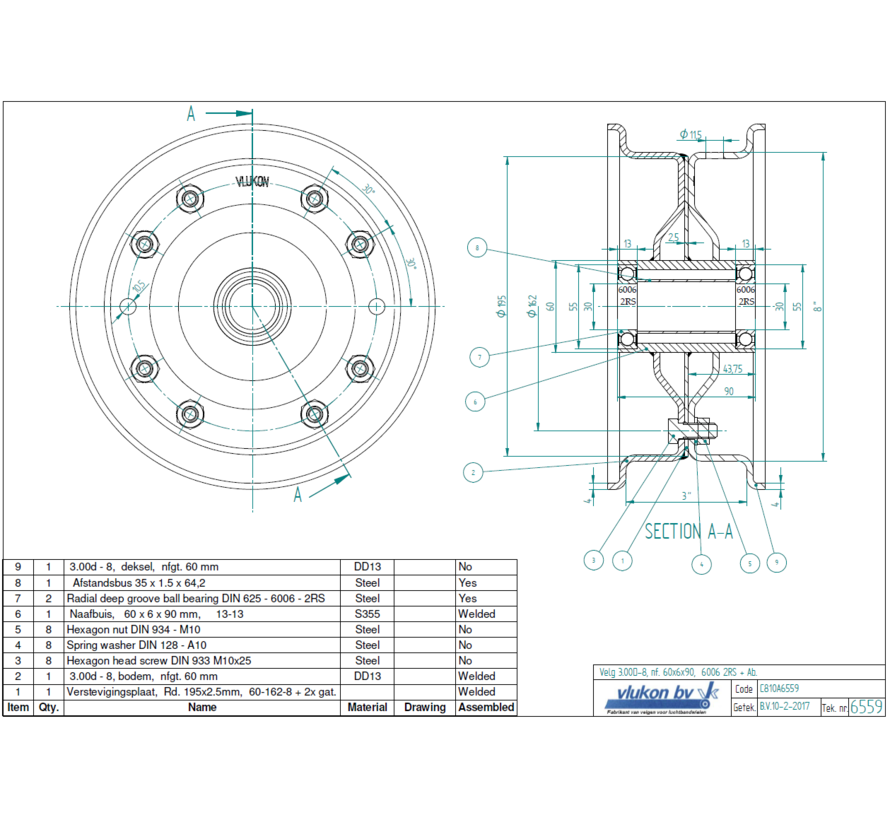

4.00 mm thick two piece divided rim | diameter: 8 inch | width: 3.00 inch | bearing in hub: 6006-2RS
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code C810A6559
- SKU R_3.00-8.00B4.00__H_V_GA6559
