2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 3.00 inch, bearing in hub: 6206-2RS

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 3.00DX8 for agricultural machinery, horticulture transport carts
This rim can be fitted with tyre size(s):
✓ 5.00-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 3.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 2.50 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 89 mm
J - Fitting length: 81 mm
L - Outer diameter hub: 68 mm
N - Bearing in hub: 6206-2RS mm
P - Axle hole diameter: 30 mm
Thickness of hub: 3 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

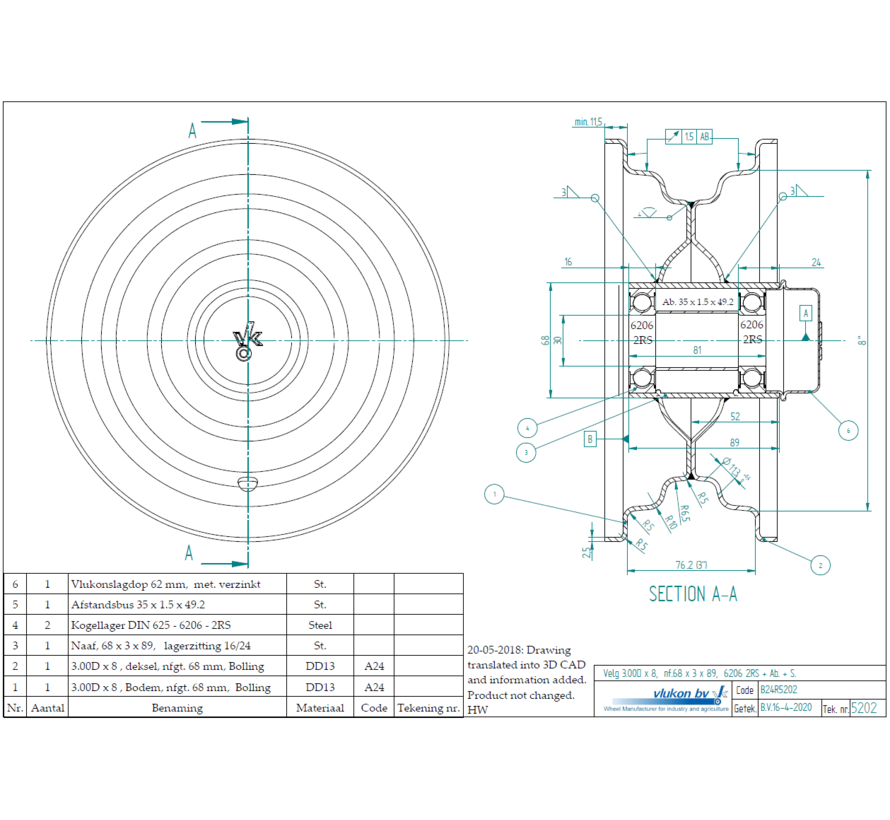

Vlukon Drawing ID: 5202
Old Vlukon ID: B24A5202
New Vlukon part number: R_3.00X8.00B2.50__L_V_GA5202
