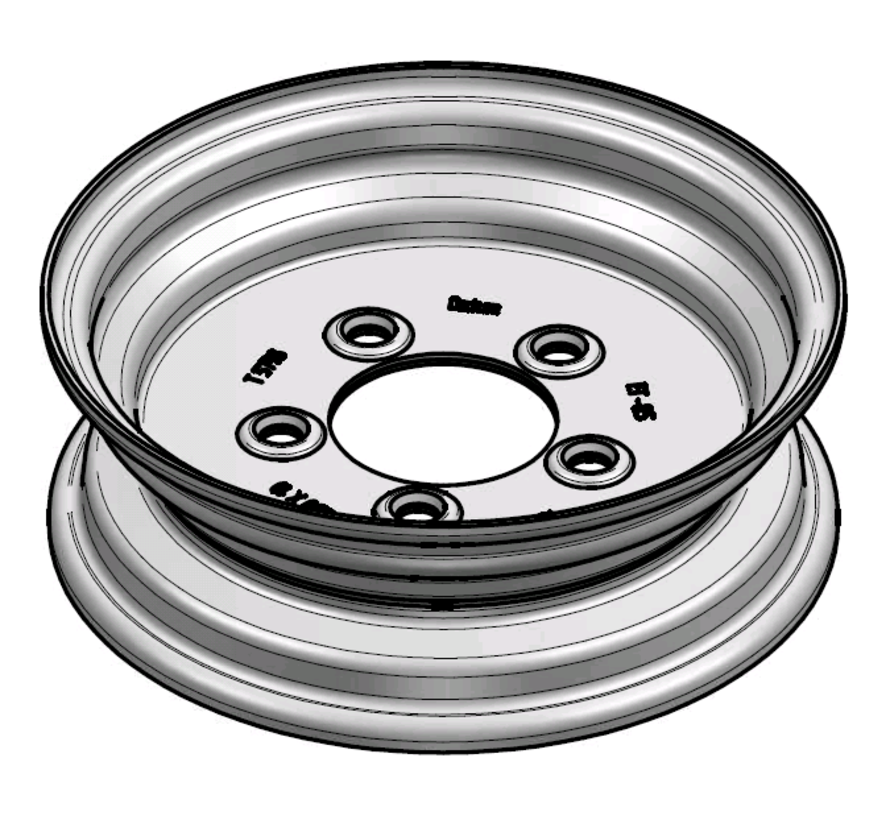

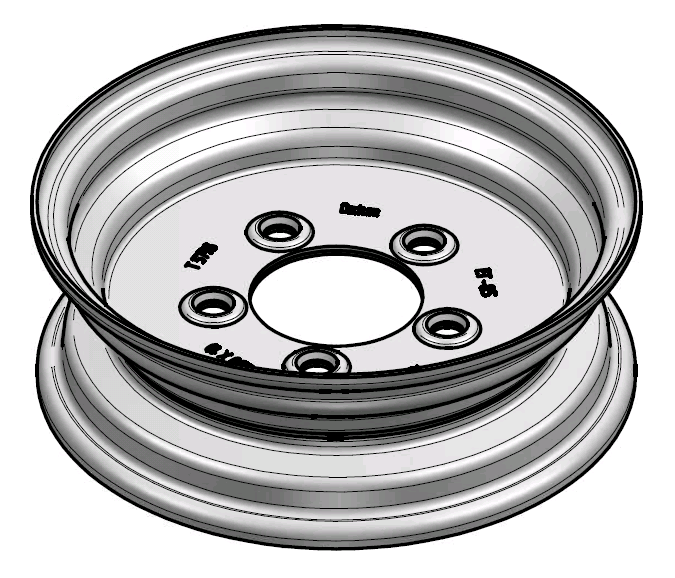

2.00 mm thick one piece welded RIM, diameter: 10 inch, width: 3.00 inch, pcd: 115mm & center bore: 80mm l 5 Raised bolt holes

Wheel rim 3.00X10 ET: -8,5mm for lawn mowers, horticulture transport carts, light solid industrial tires
This rim can be fitted with tyre size(s):
✓ contact us
Because the rim is welded airtight all around and has a safety hump (H1 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 3.00 inch
C - Diameter rim: 10 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO):
E - Offset: negative offset -8,5 mm
F - Safety hump: (H1) Safety hump
G - Rim thickness: 2.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 80 mm
V - Pitch circle diameter (PCD): 115 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 15 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

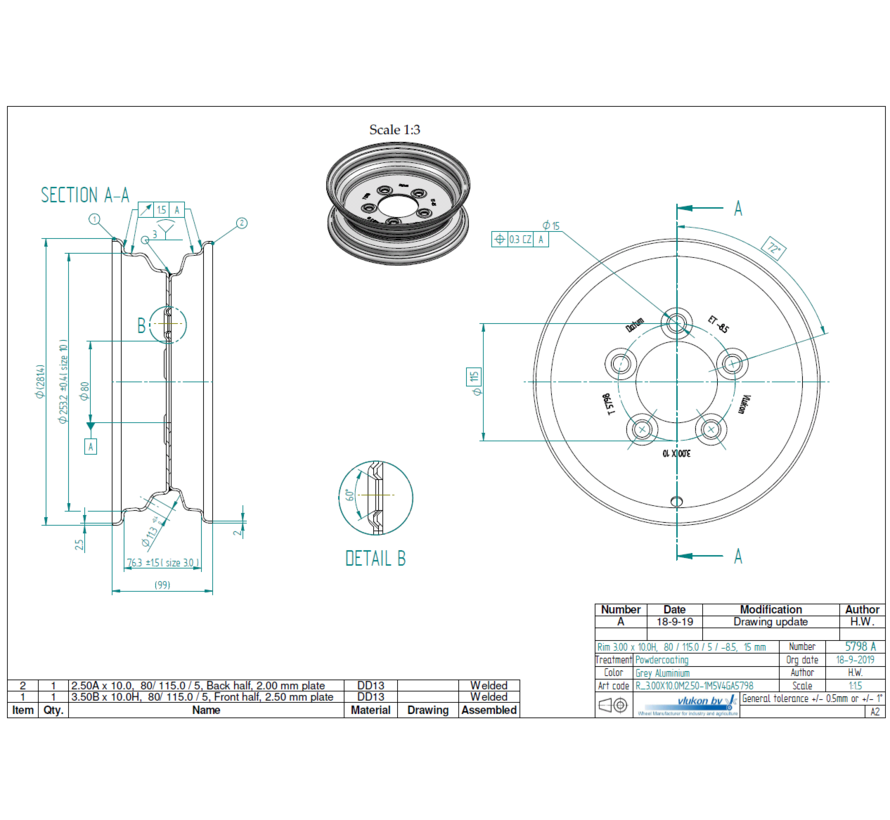

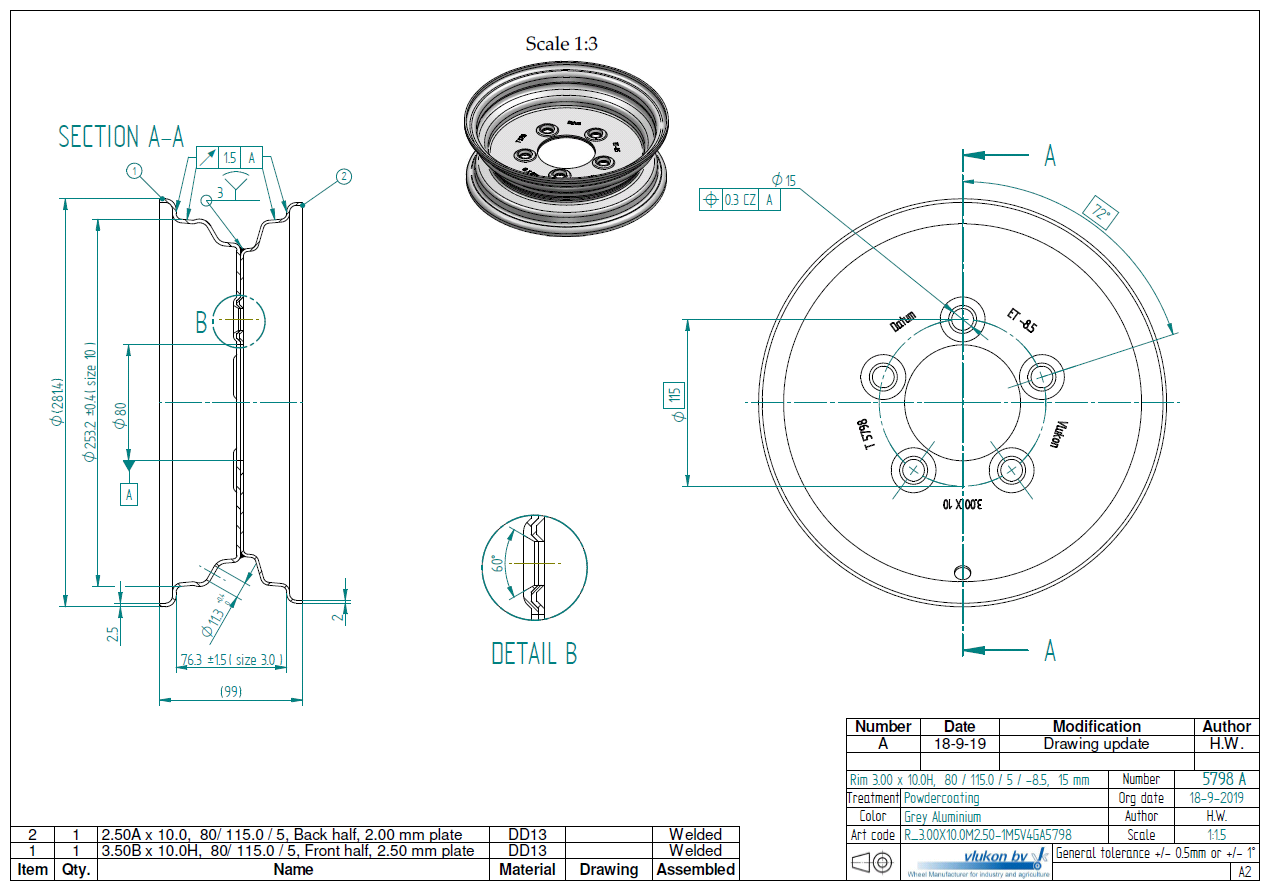

Vlukon Drawing ID: 5798
Old Vlukon ID: G41A5798
New Vlukon part number: R_3.00X10.0F2.00-1M5V4GA5798
