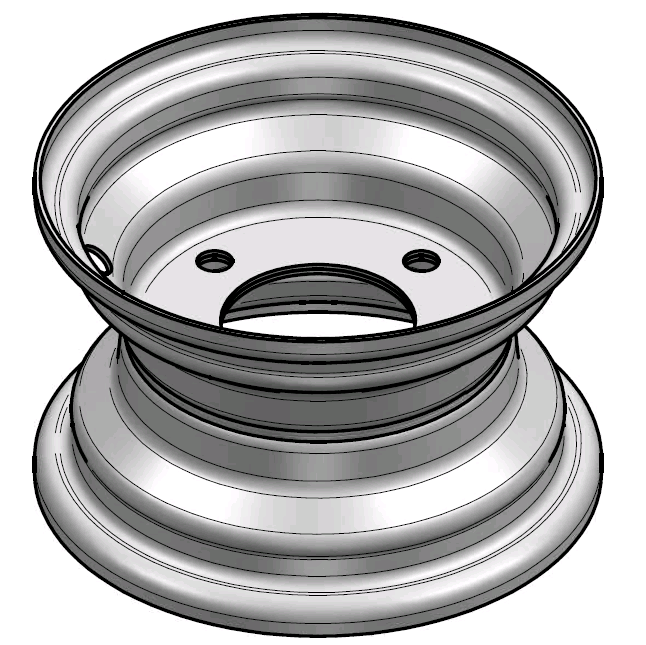

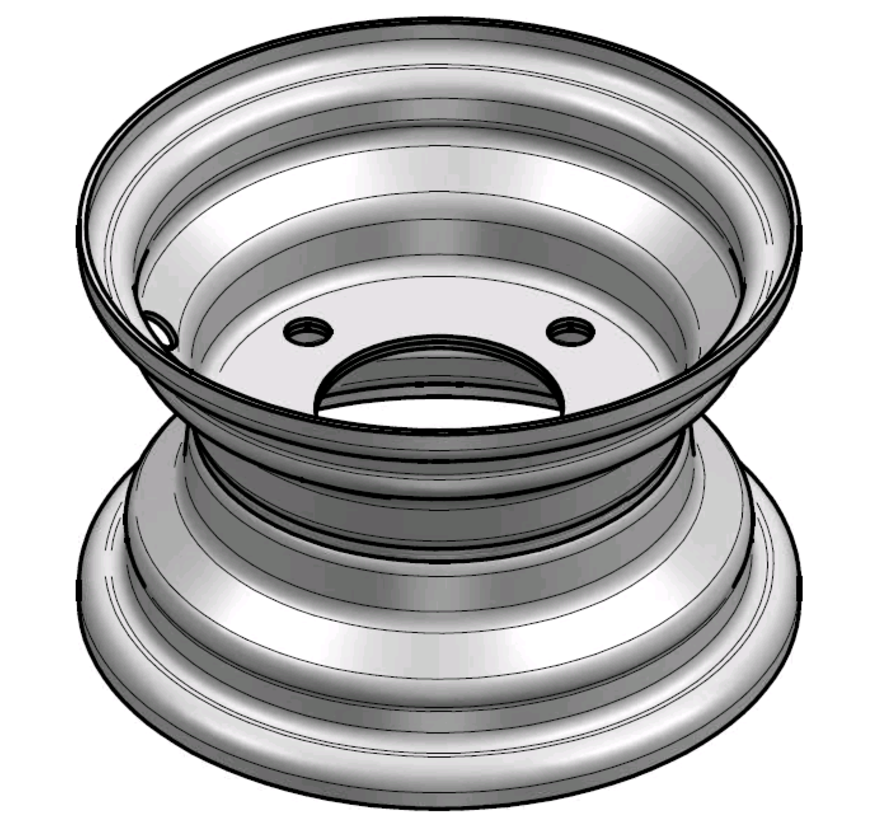

1.75 mm thick one piece welded RIM, diameter: 6 inch, width: 3.50 inch, pcd: 90mm & center bore: 60mm l 4 bolt holes

Wheel rim 3.50AX6 for agricultural machinery, lawn mowers, light solid industrial tires, tractors
This rim can be fitted with tyre size(s):
✓ 13x5.00-6
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 3.50 inch
C - Diameter rim: 6 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 1.75 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 90 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 11 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

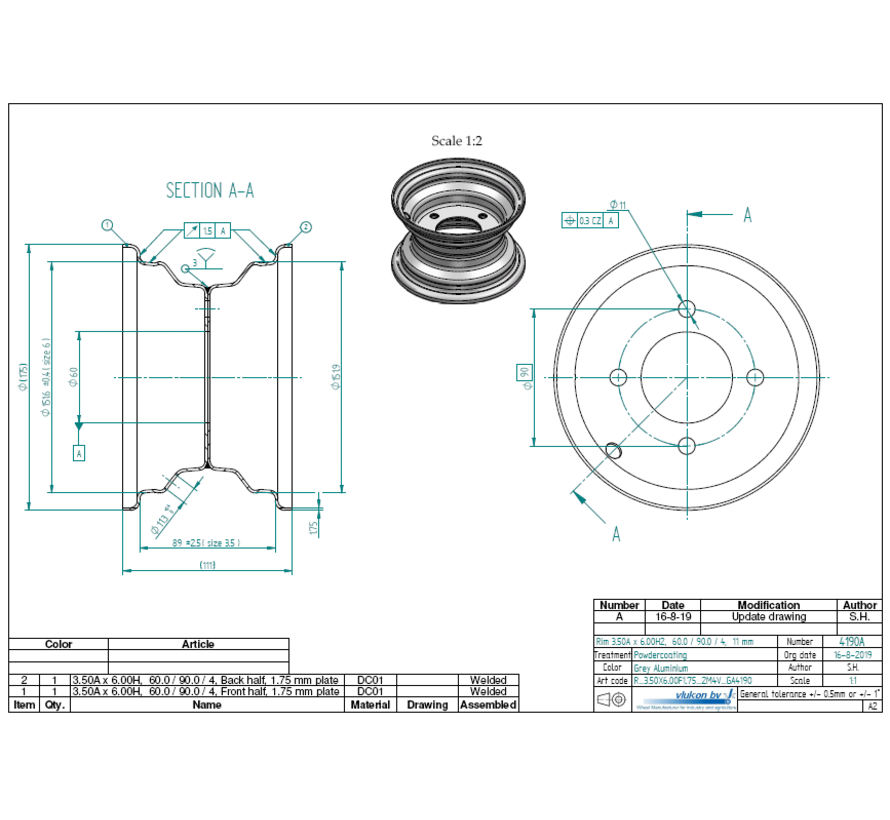

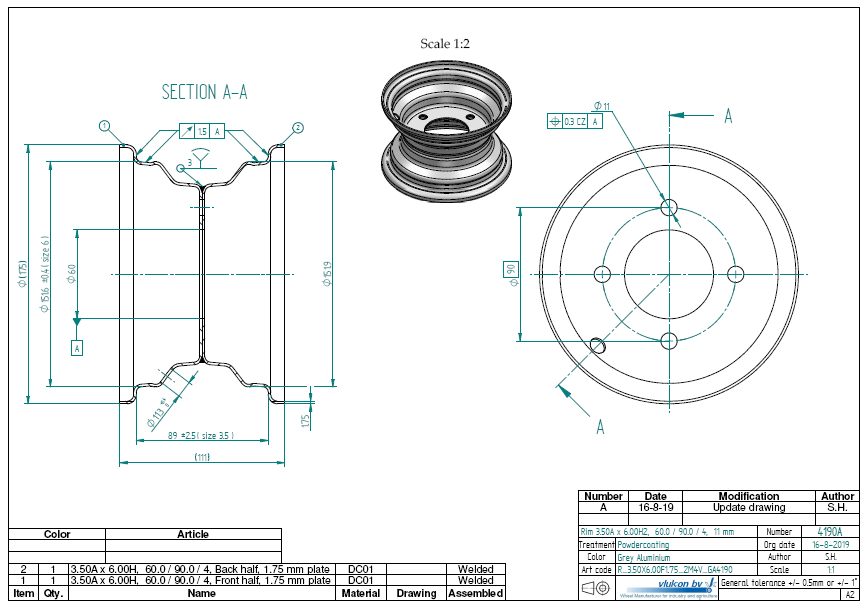

Vlukon Drawing ID: 4190
Old Vlukon ID: G17A4190
New Vlukon part number: R_3.50X6.00F1.75_2M4V_GA4190
