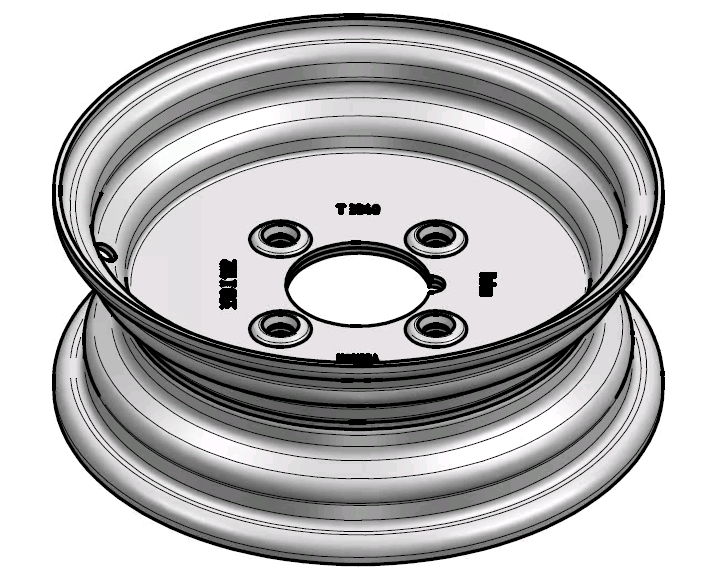

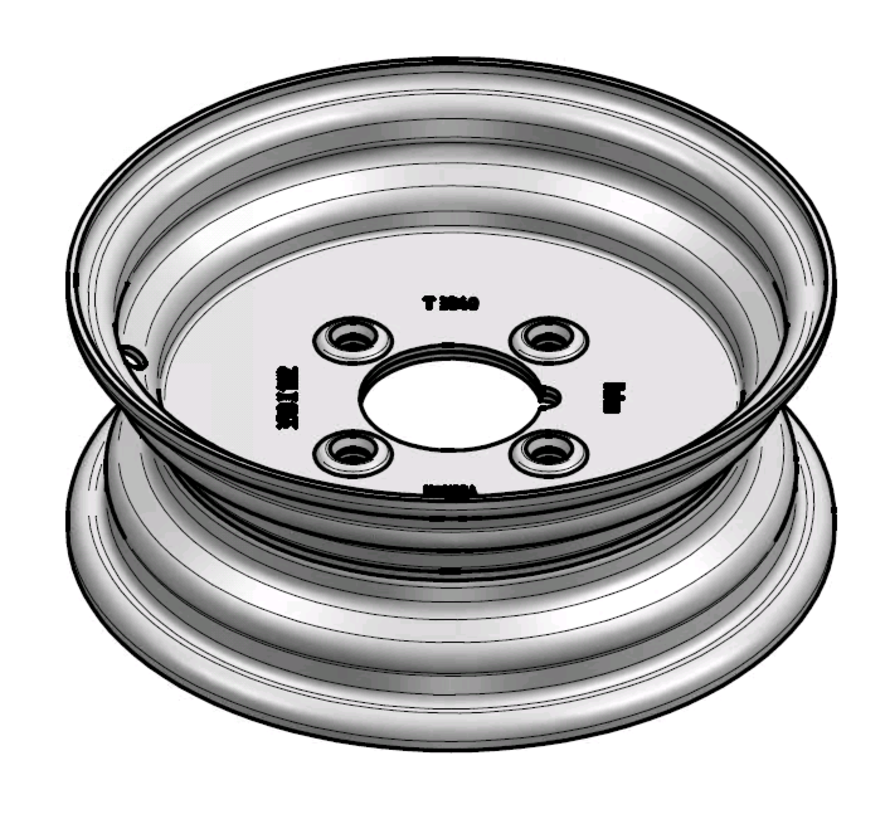

3.00 mm thick one piece welded RIM, diameter: 10 inch, width: 3.50 inch, pcd: 101,6mm & center bore: 67mm l 4 Raised bolt holes

Wheel rim 3.50BX10 H2 for agricultural machinery, horticulture transport carts, material handling, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.50-10
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 3.50 inch
C - Diameter rim: 10 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): B
E - Offset: Neutral / No offset
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 3.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 67 mm
V - Pitch circle diameter (PCD): 101,6 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 12,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

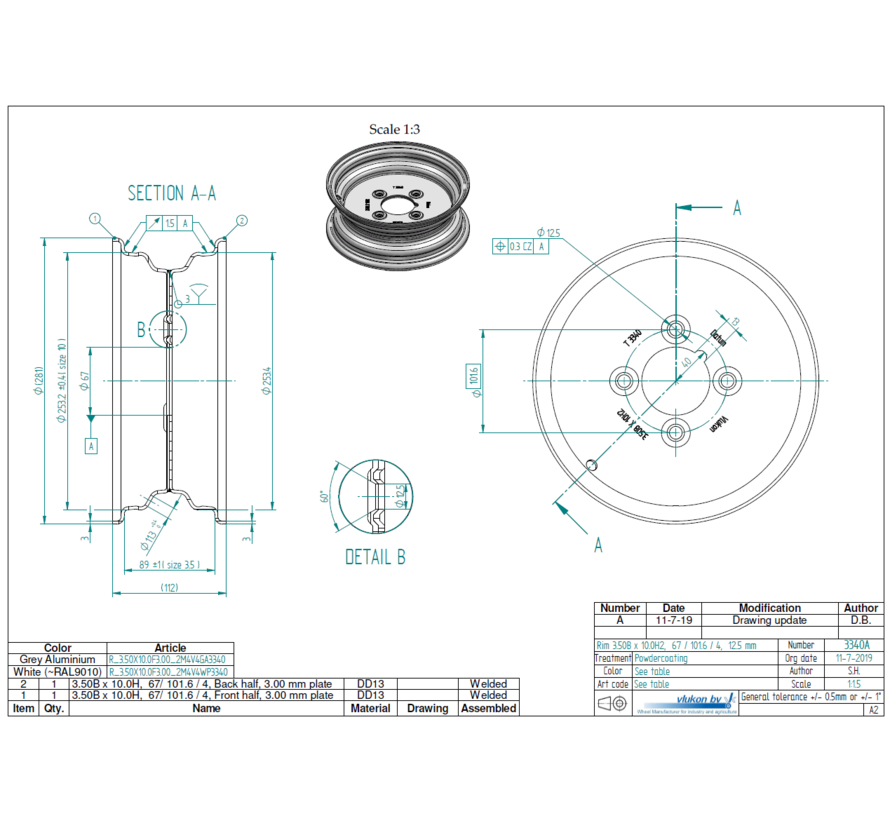

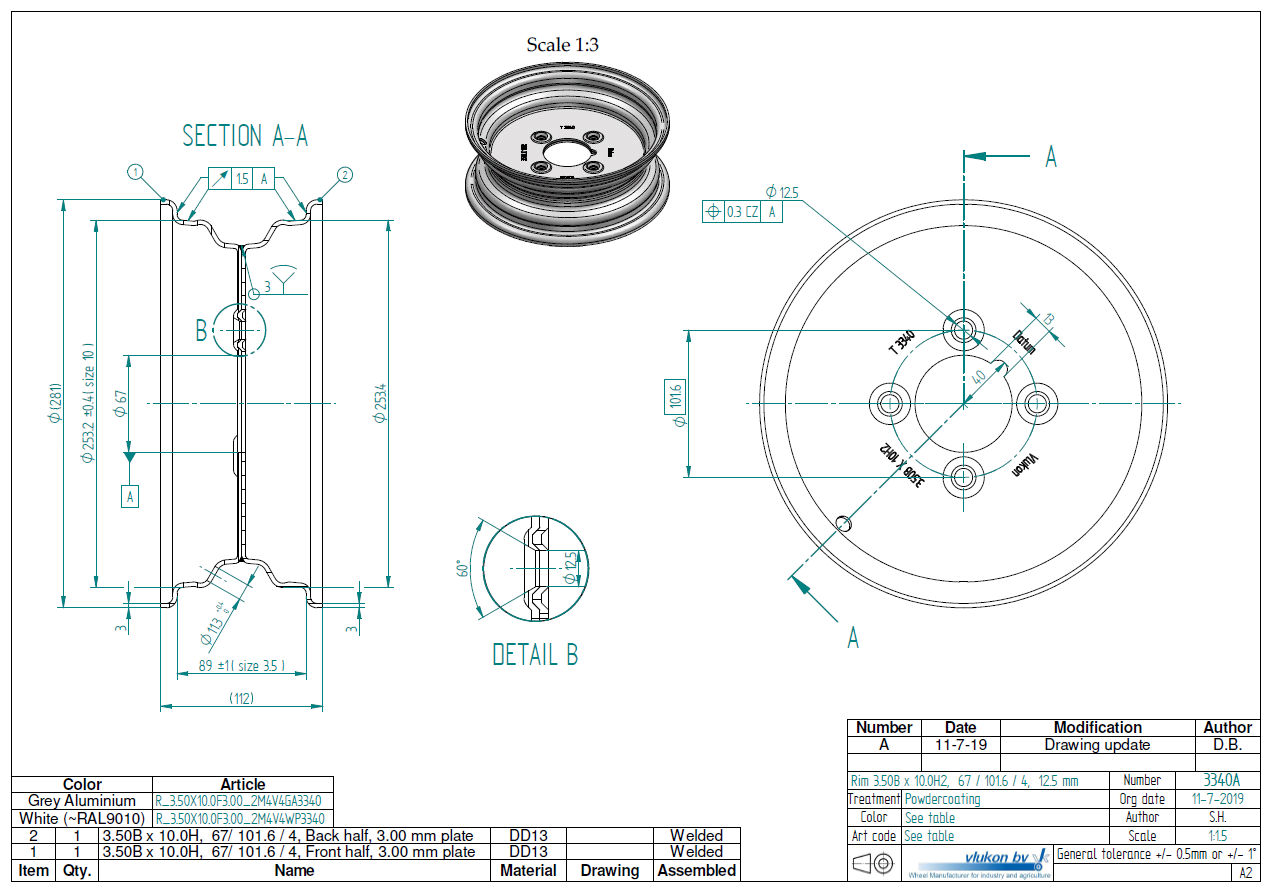

Vlukon Drawing ID: 3340
Old Vlukon ID: G42A3340
New Vlukon part number: R_3.50X10.0F3.00_2M4V4GA3340
