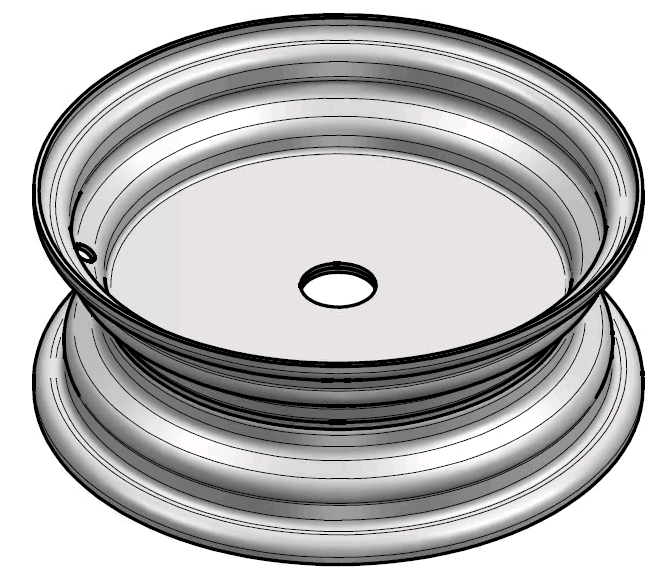

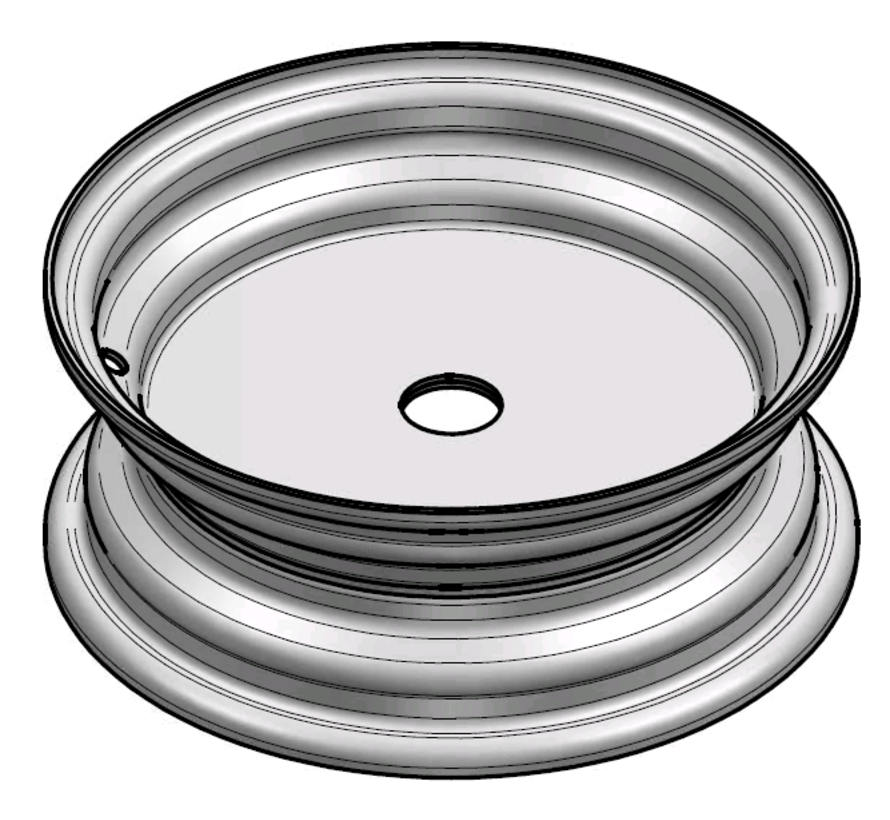

2.50 mm thick one piece welded RIM, diameter: 10 inch, width: 3.50 inch,

Product description

Wheel rim 3.50BX10 H2 for agricultural machinery, horticulture transport carts, material handling, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.50-10
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 3.50 inch
C - Diameter rim: 10 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): B
E - Offset: Neutral / No offset
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 2.50 mm
Rim connection: _
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

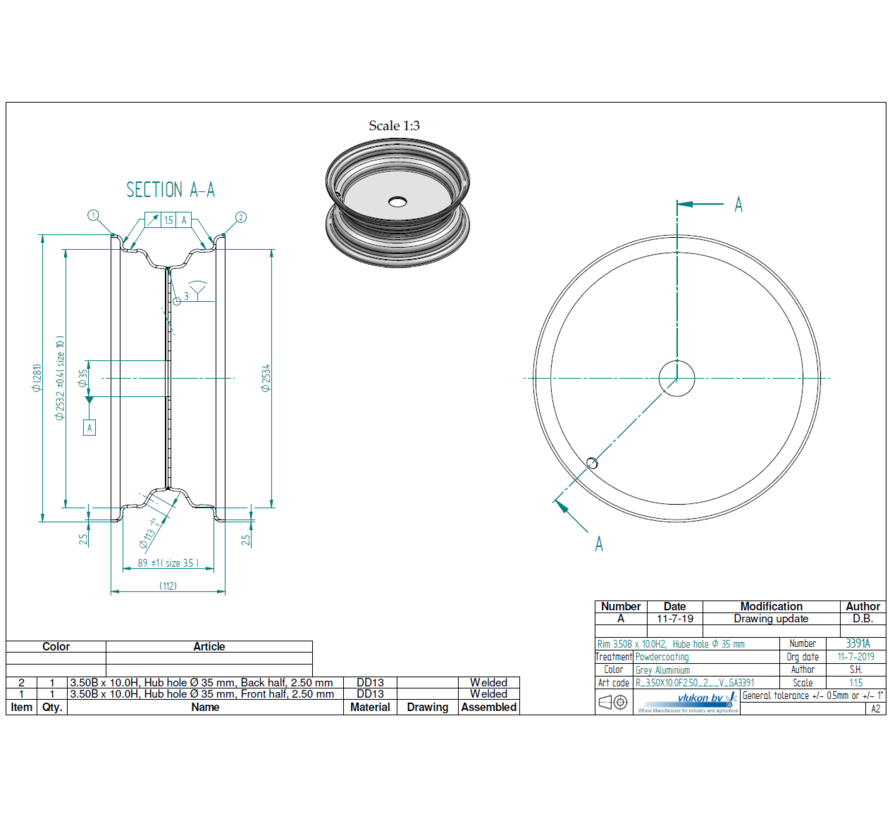

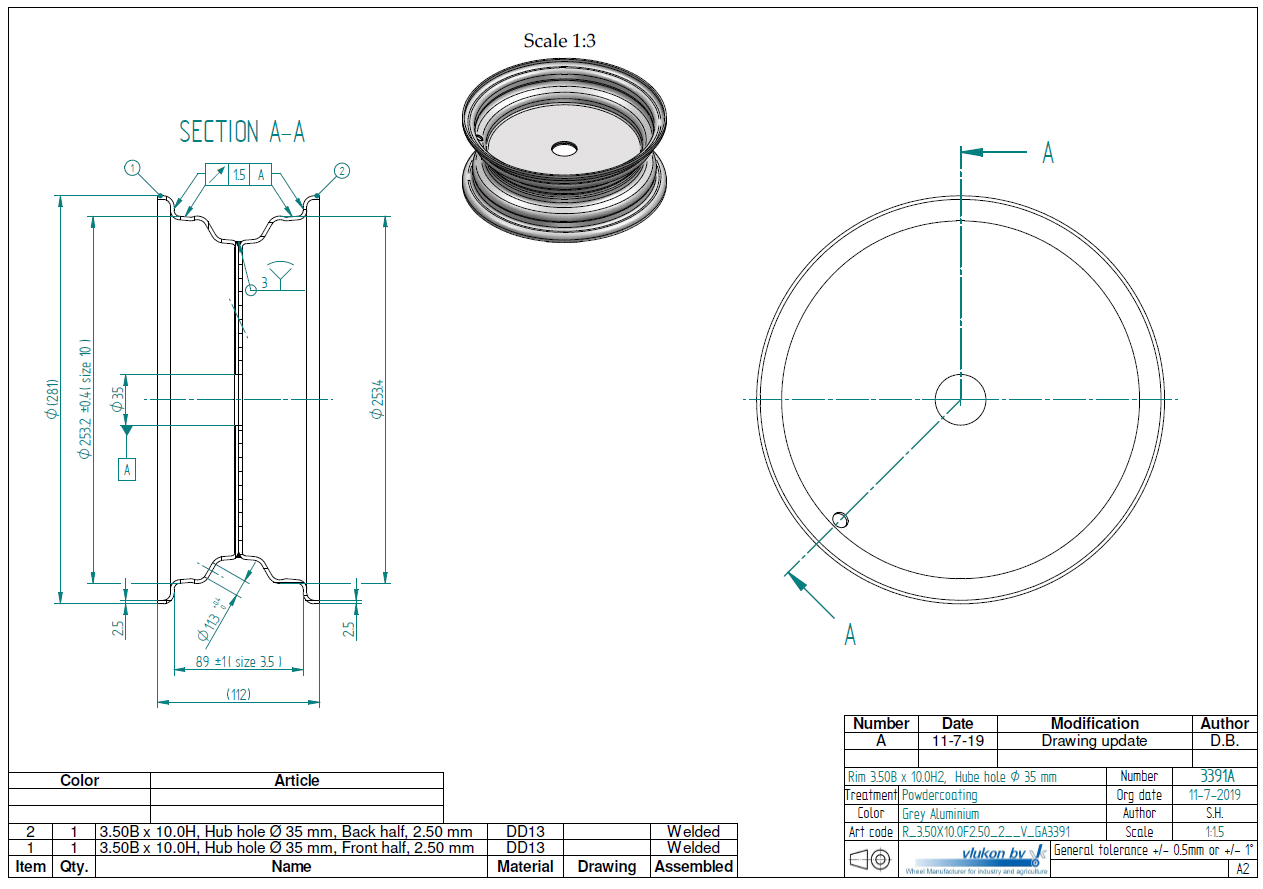

Vlukon Drawing ID: 3391
Old Vlukon ID: G42A3391
New Vlukon part number: R_3.50X10.0F2.50_2__V_GA3391

Customizations & Development

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 2.50 mm thick one piece welded RIM, diameter: 10 inch, width: 3.50 inch,

Rim size 3.50BX10H2 | 2.50 mm thick one piece welded RIM, diameter: 10 inch, width: 3.50 inch,

Enter the number of articles below and click

Ok

  • Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
  • Short delivery times
  • Highest quality available
  • Ask us any colour you need

Request special product

Download PDF

Product information

  • Article code G42A3391
  • SKU R_3.50X10.0F2.50_2__V_GA3391
