5.00 mm thick two piece divided rim | diameter: 9 inch | width: 4.00 inch | pcd: 140mm & center bore: 94mm l 5 Raised bolt holes

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 4.00E-9 for forestry machinery, agricultural machinery, horticulture transport carts, tractors
This rim can be fitted with tyre size(s):
✓ 21x6.75-9

Technical details
A - Type: Assembled divided rim
B - Rim width: 4.00 inch
C - Diameter rim: 9 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): E
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 5.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 94 mm
V - Pitch circle diameter (PCD): 140 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Black
Ral Colour : RAL 9005

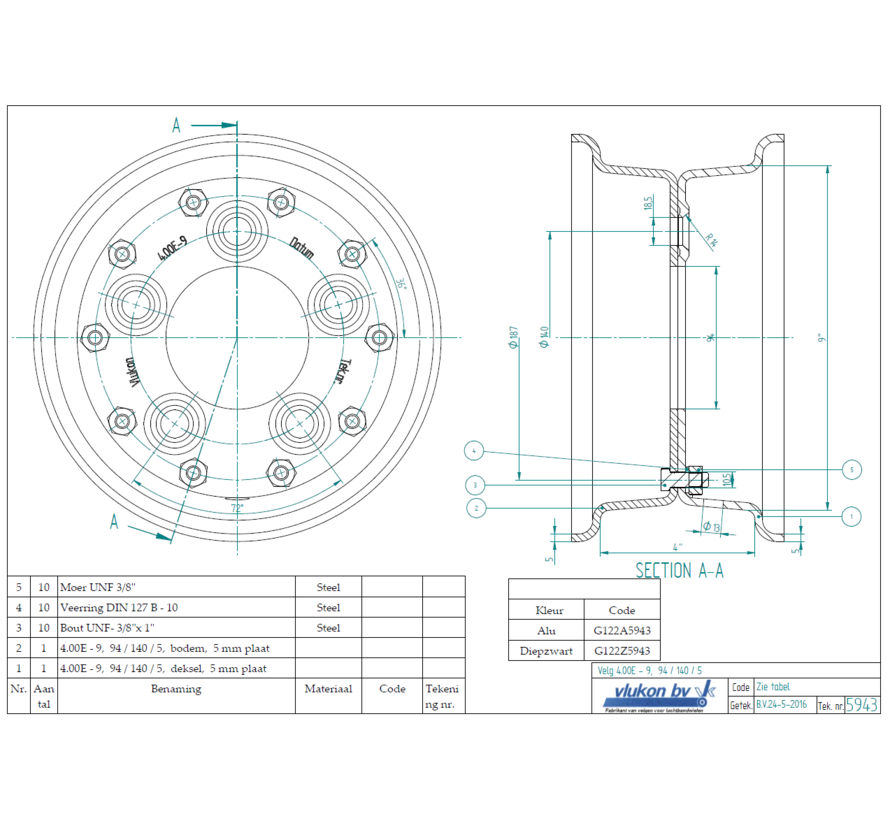

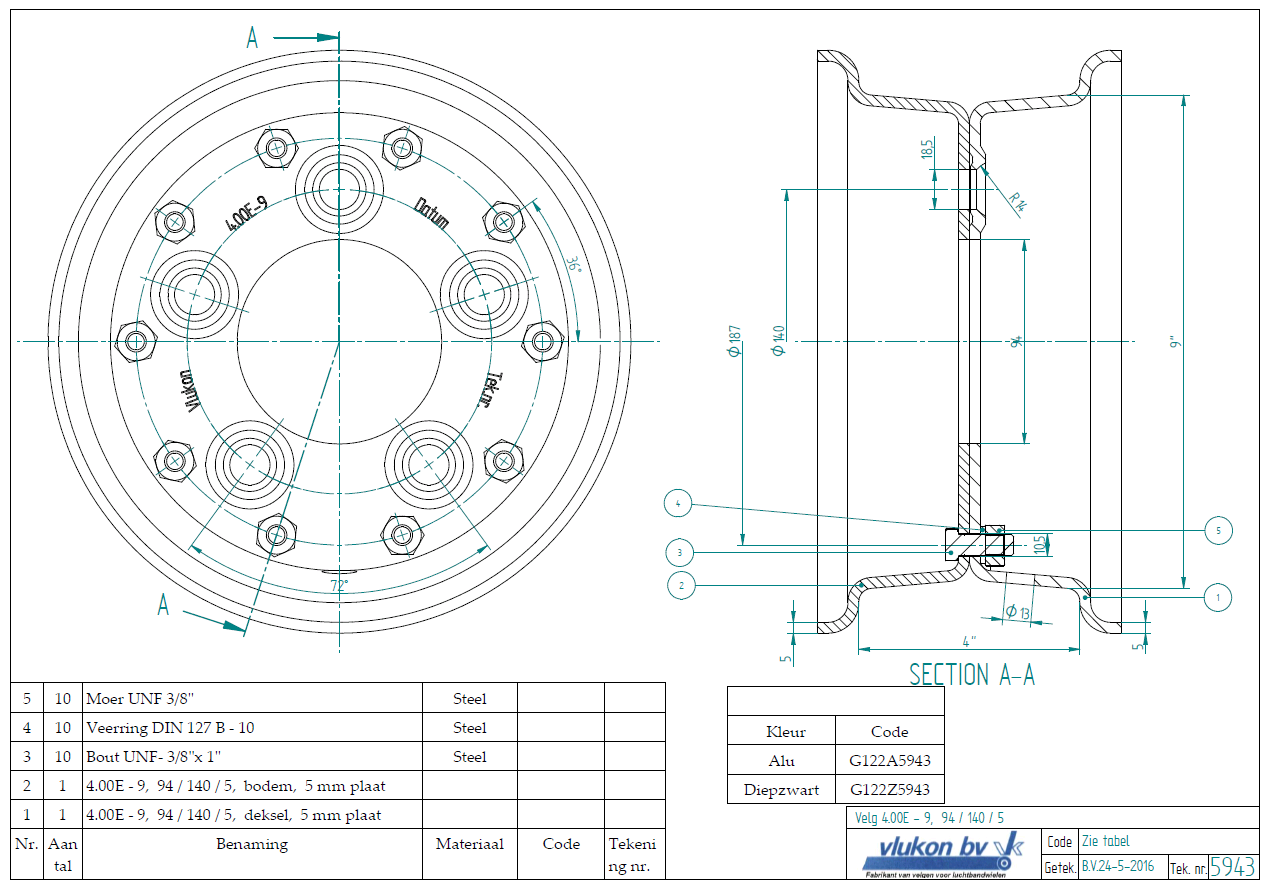

Vlukon Drawing ID: 5943
Old Vlukon ID: G122Z5943
New Vlukon part number: R_4.00-9.00F5.00__M5V4BJ5943
