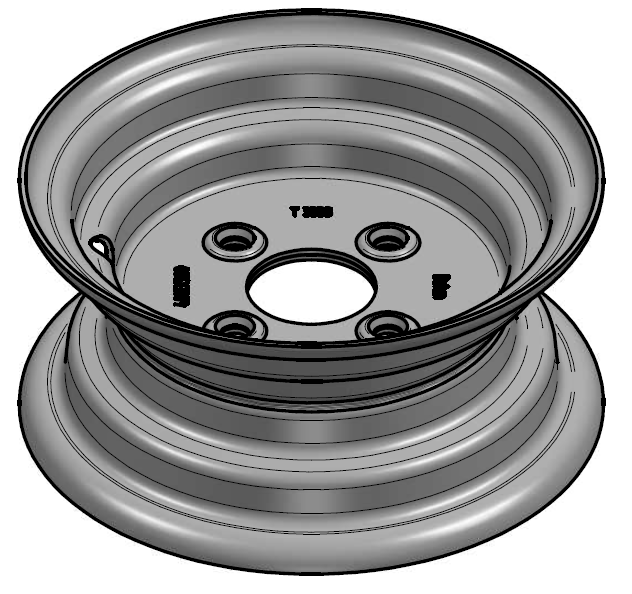

3.00 mm thick one piece welded RIM, diameter: 9 inch, width: 4.00 inch, pcd: 100mm & center bore: 60mm l 4 Raised bolt holes

Wheel rim 4.00Ex9 for agricultural machinery, material handling, industrial high load trailers, caravans & mobile homes
This rim can be fitted with tyre size(s):
✓ 6.00-9
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 4.00 inch
C - Diameter rim: 9 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): E
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 3.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 100 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 13,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

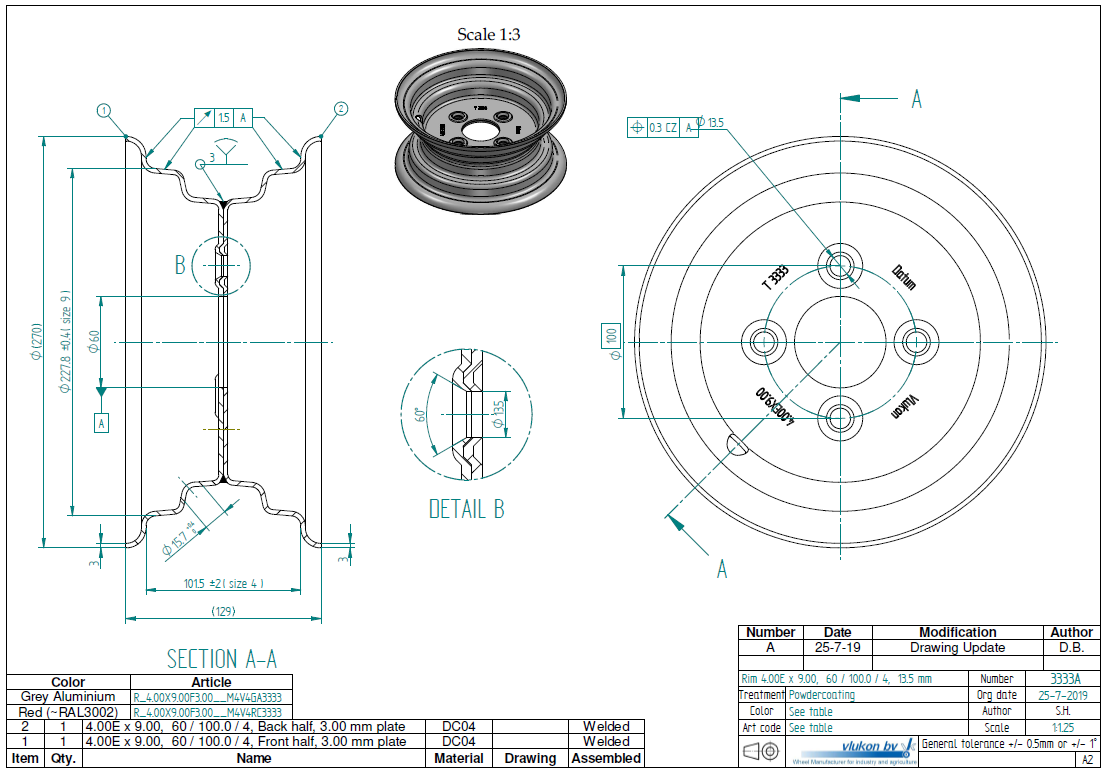

Vlukon Drawing ID: 3333
Old Vlukon ID: G30R3333
New Vlukon part number: R_4.00X9.00F3.00__M4V4RC3333
