5.00 mm thick two piece divided rim | diameter: 8 inch | width: 4.33 inch | pcd: 98mm & center bore: 60mm l 4 Raised bolt holes

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 4.33R-8 for agricultural machinery, horticulture transport carts, material handling, industrial high load trailers, caravans & mobile homes
This rim can be fitted with tyre size(s):
✓ 18x7-8

Technical details
A - Type: Assembled divided rim
B - Rim width: 4.33 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): R
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 5.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 98 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 13,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

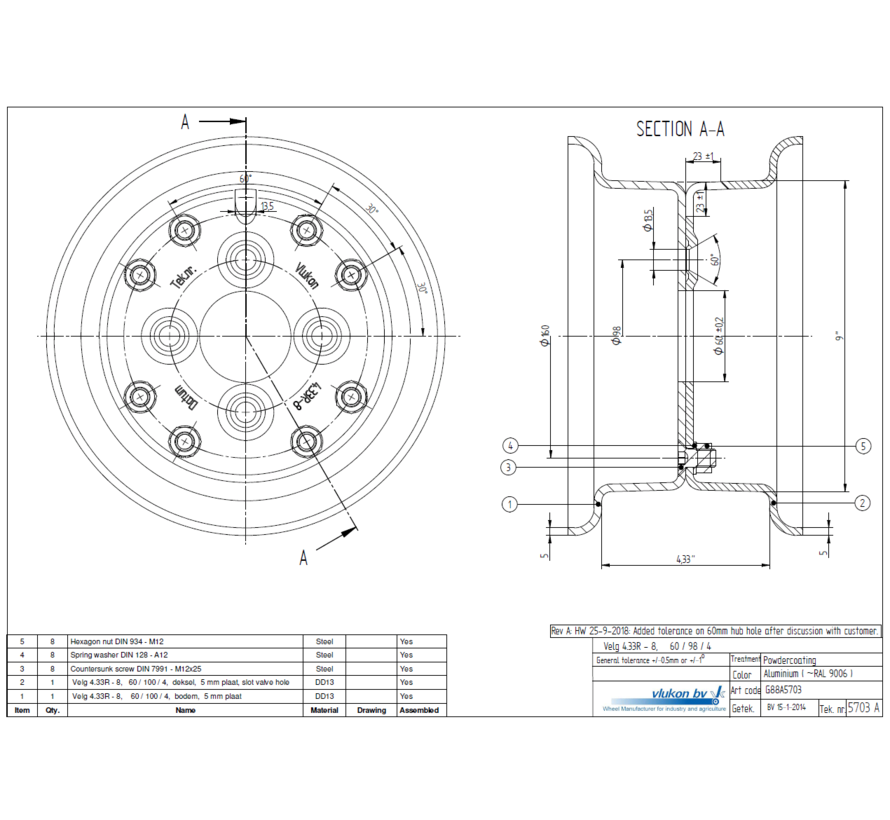

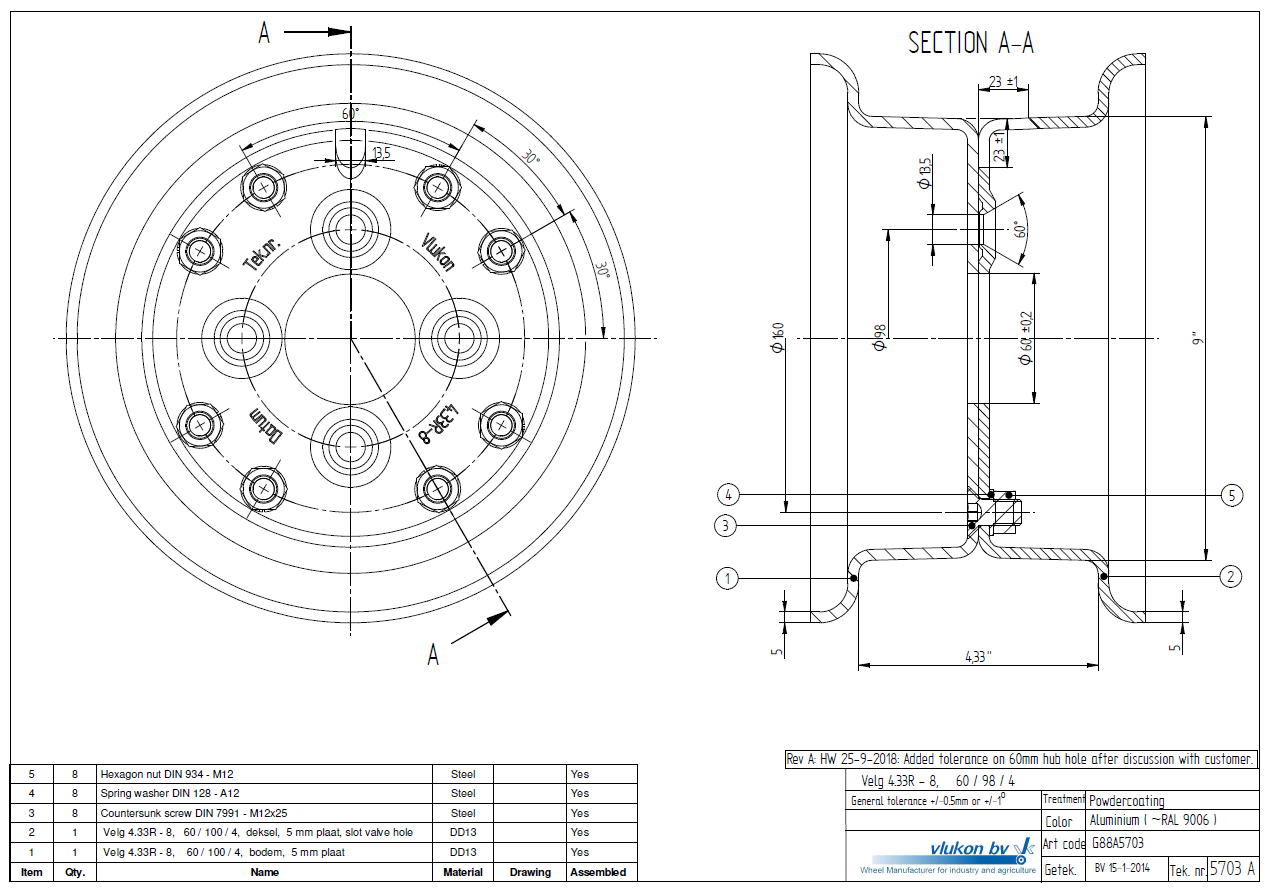

Vlukon Drawing ID: 5703
Old Vlukon ID: G88A5703
New Vlukon part number: R_4.33-8.00F5.00__M4V4GA5703

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 5.00 mm thick two piece divided rim | diameter: 8 inch | width: 4.33 inch | pcd: 98mm & center bore: 60mm l 4 Raised bolt holes

Rim size 4.33R-8 | 5.00 mm thick divided RIM | diameter: 8 inch | width: 4.33 inch | pcd: 98mm & center bore: 60mm l 4 Raised bolt holes
