Wheel rim 4.33R-8 for agricultural machinery, horticulture transport carts, material handling, industrial high load trailers, caravans & mobile homes
This rim can be fitted with tyre size(s):
✓ 18x7-8
Technical details
A - Type: Assembled divided rim
B - Rim width: 4.33 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): R
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 5.00 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 170 mm
J - Fitting length: 170 mm
L - Outer diameter hub: 70 mm
P - Axle hole diameter: 35 mm
Thickness of hub: 6,3 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

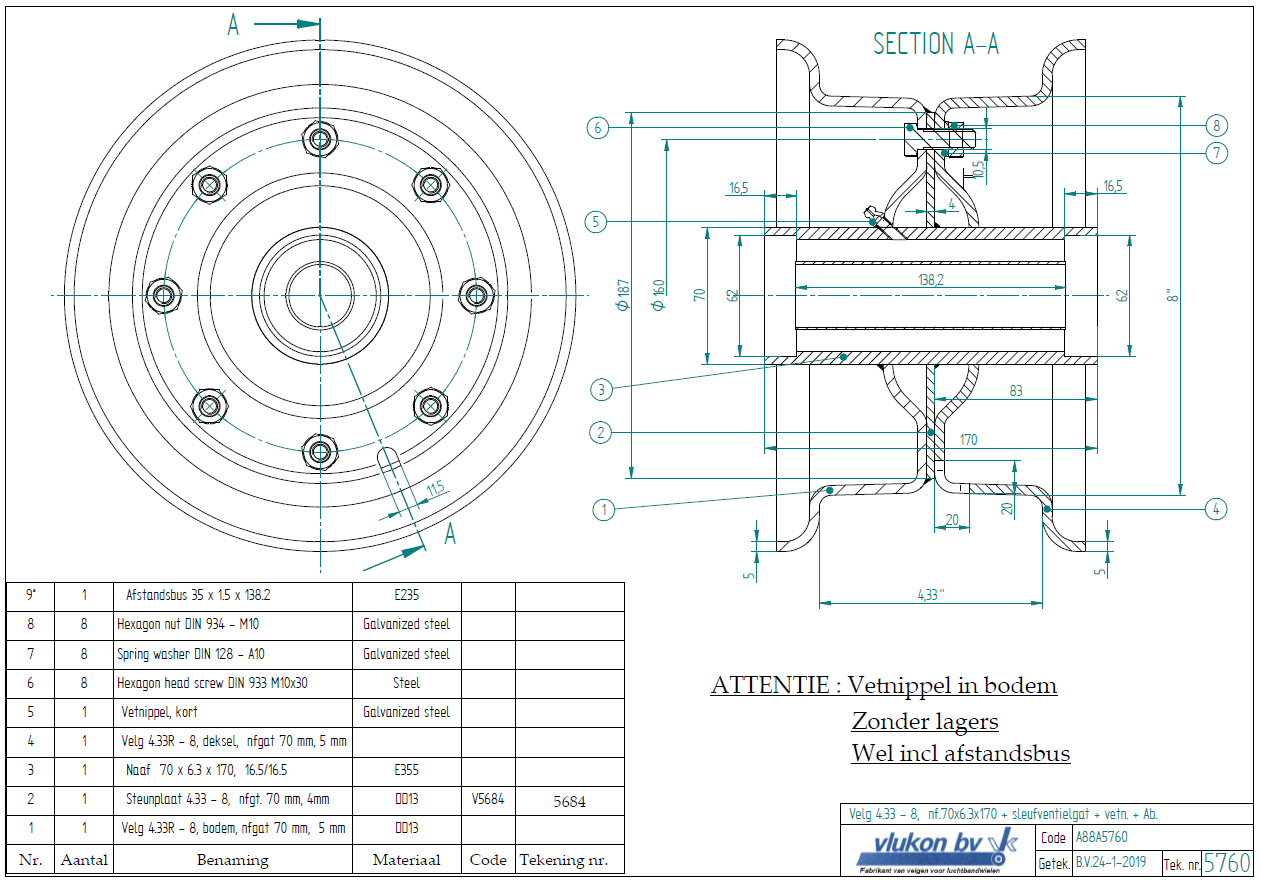

Vlukon Drawing ID: 5760
Old Vlukon ID: A88A5760
New Vlukon part number: R_4.33-8.00B5.00__HGV_GA5760
5.00 mm thick two piece divided rim | diameter: 8 inch | width: 4.33 inch | bearing in hub:
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code A88A5760
- SKU R_4.33-8.00B5.00__HGV_GA5760
