3.00 mm thick two piece divided rim | diameter: 8 inch | width: 4.40 inch | pcd: 130mm & center bore: 85mm l 4 Raised bolt holes

Product description

Wheel rim 4.40D-8 for agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 16x6.00-8


Technical details
A - Type: Assembled divided rim
B - Rim width: 4.40 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 3.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 85 mm
V - Pitch circle diameter (PCD): 130 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

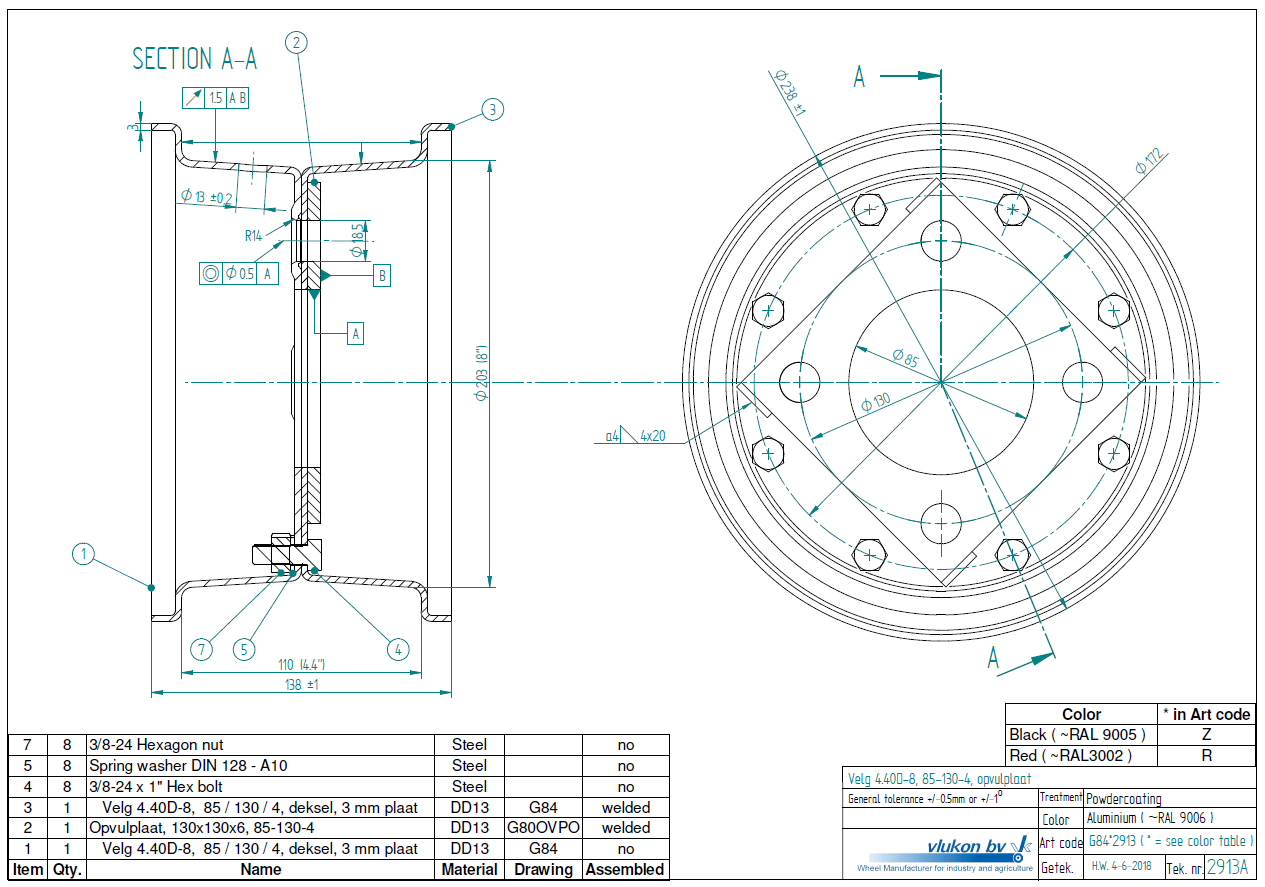

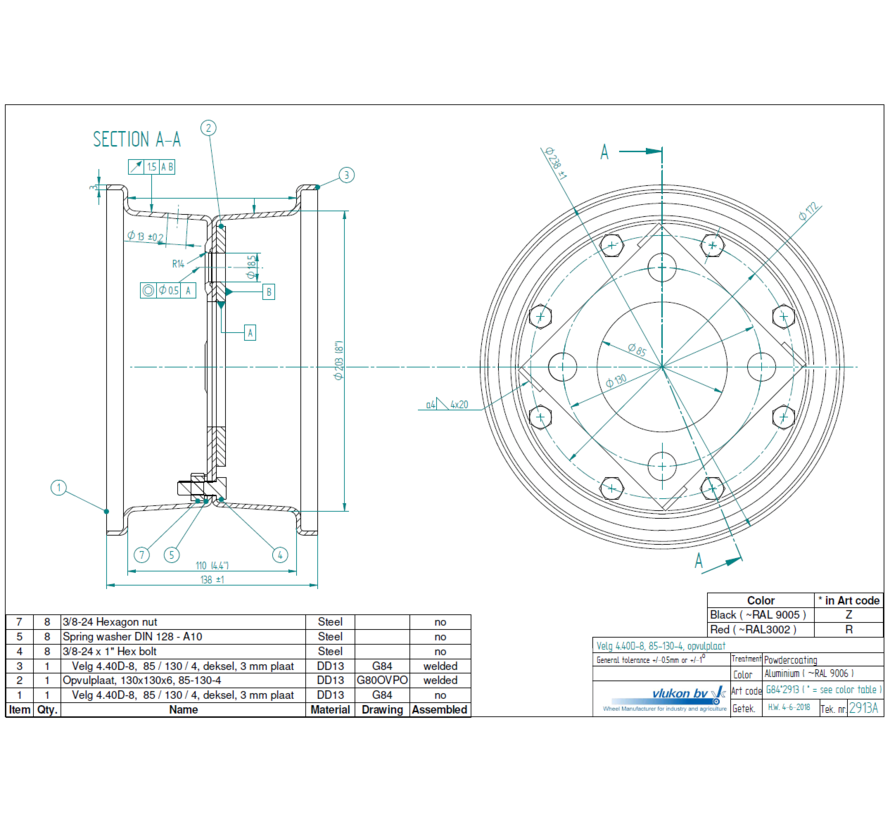

Vlukon Drawing ID: 2913
Old Vlukon ID: G84A2913
New Vlukon part number: R_4.40-8.00F3.00__M4V4GA2913

Customizations & Development

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 3.00 mm thick two piece divided rim | diameter: 8 inch | width: 4.40 inch | pcd: 130mm & center bore: 85mm l 4 Raised bolt holes

Rim size 4.40D-8 | 3.00 mm thick divided RIM | diameter: 8 inch | width: 4.40 inch | pcd: 130mm & center bore: 85mm l 4 Raised bolt holes

Enter the number of articles below and click

Ok

  • Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
  • Short delivery times
  • Highest quality available
  • Ask us any colour you need

Request special product

Download PDF

Product information

  • Article code G84A2913
  • SKU R_4.40-8.00F3.00__M4V4GA2913

Specifications
