Wheel rim 4.40D-8 for agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 16x6.00-8
Technical details
A - Type: Assembled divided rim
B - Rim width: 4.40 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 3.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 94 mm
V - Pitch circle diameter (PCD): 140 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Valve hole protection cap
Paint finish: Powder coating
Colour: Grey Aluminium

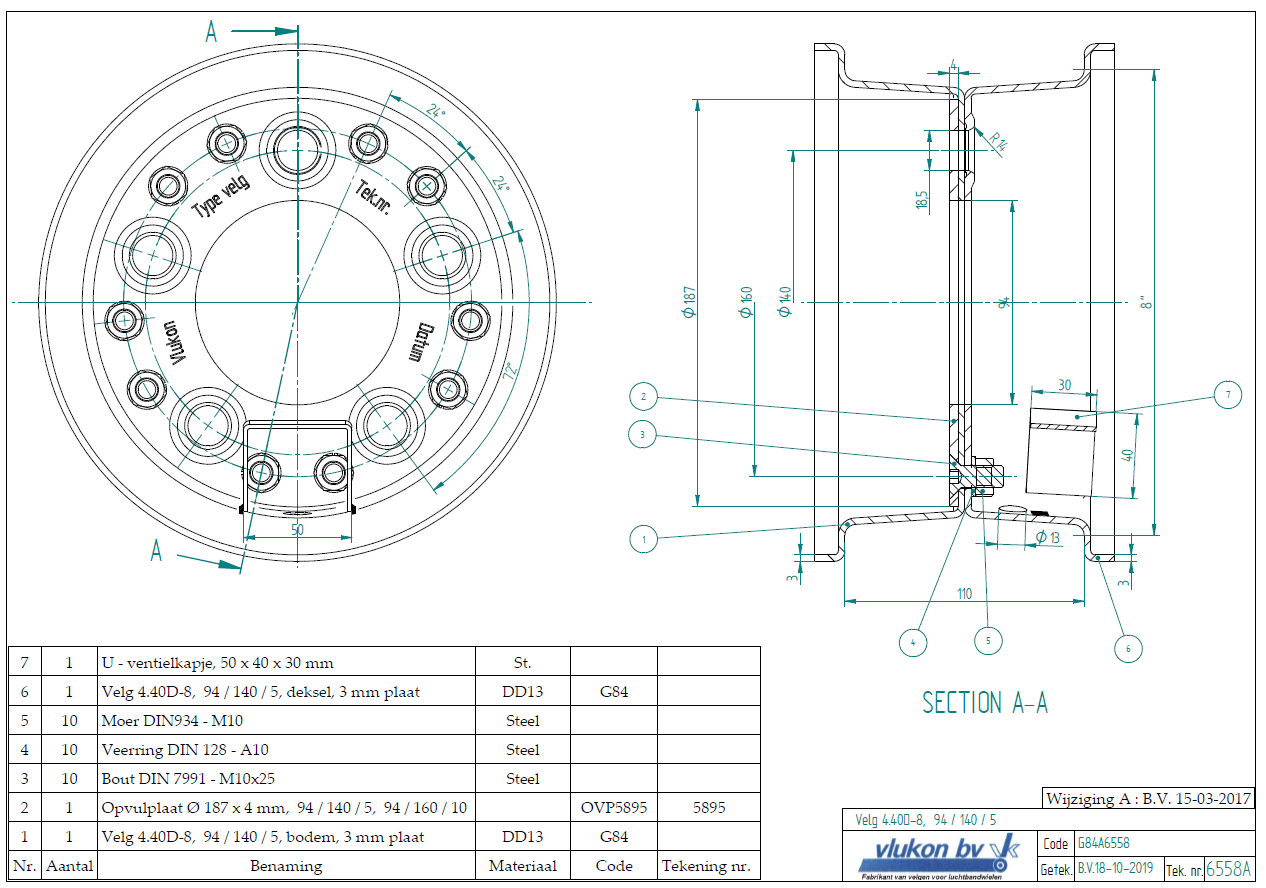

Vlukon Drawing ID: 6558
Old Vlukon ID: G84A6558
New Vlukon part number: R_4.40-8.00F3.00__M5P4GA6558

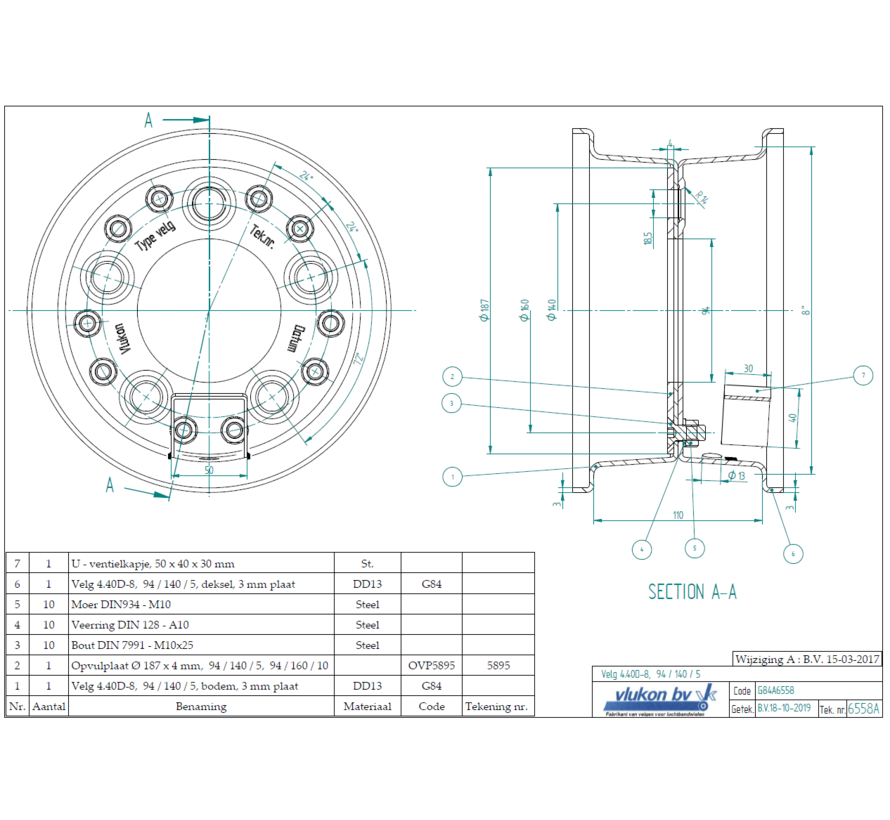

3.00 mm thick two piece divided rim | diameter: 8 inch | width: 4.40 inch | pcd: 140mm & center bore: 94mm l 5 Raised bolt holes
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code G84A6558
- SKU R_4.40-8.00F3.00__M5P4GA6558
