Wheel rim 4.50D-6 for agricultural machinery, horticulture transport carts, tractors
This rim can be fitted with tyre size(s):
✓ 140-6
Technical details
A - Type: Assembled divided rim
B - Rim width: 4.50 inch
C - Diameter rim: 6 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 4.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 100 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 14,5 mm
AB - Valve hole: _
Paint finish: Powder coating
Colour: Black
Ral Colour : RAL 9005

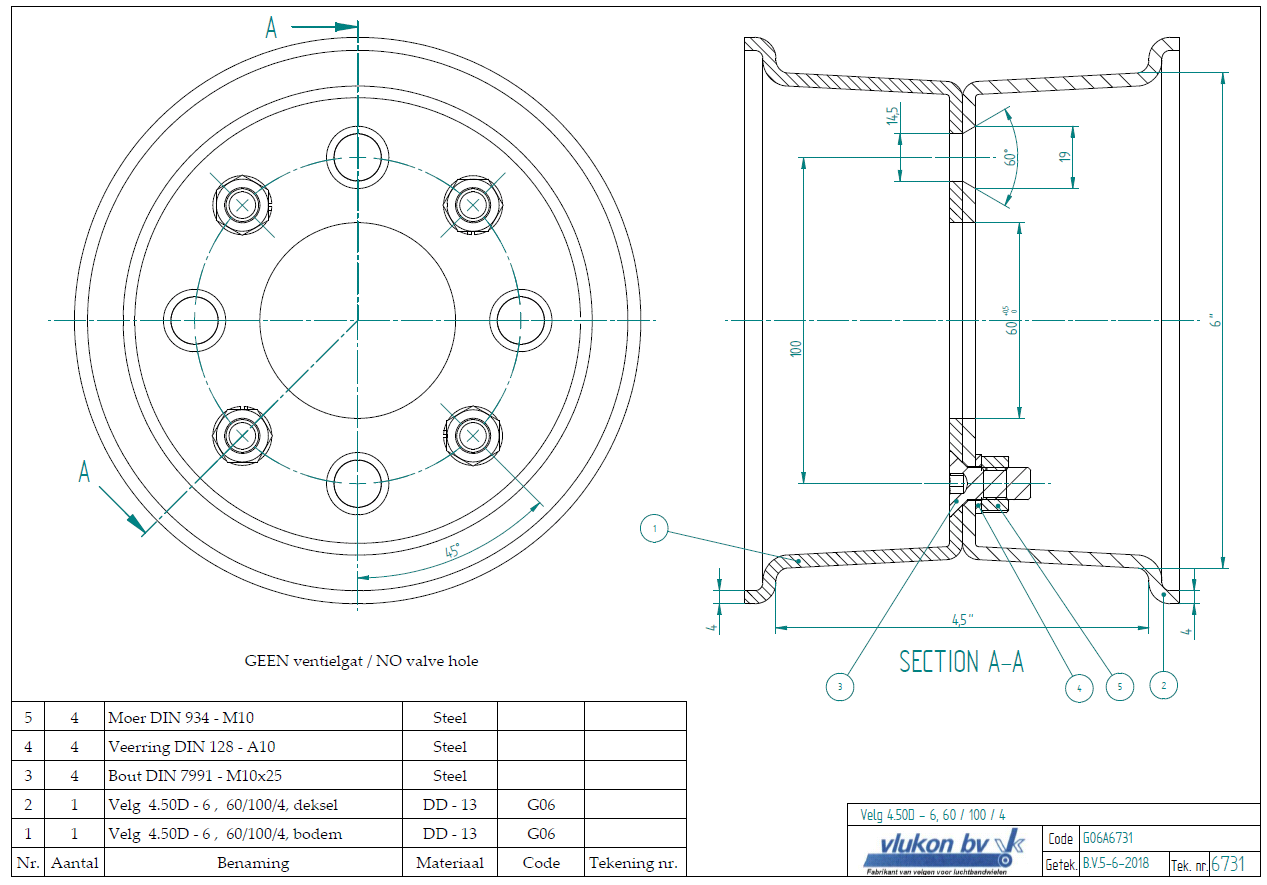

Vlukon Drawing ID: 6731
Old Vlukon ID: G06Z6731
New Vlukon part number: R_4.50-6.00F4.00__M4__BJ6731

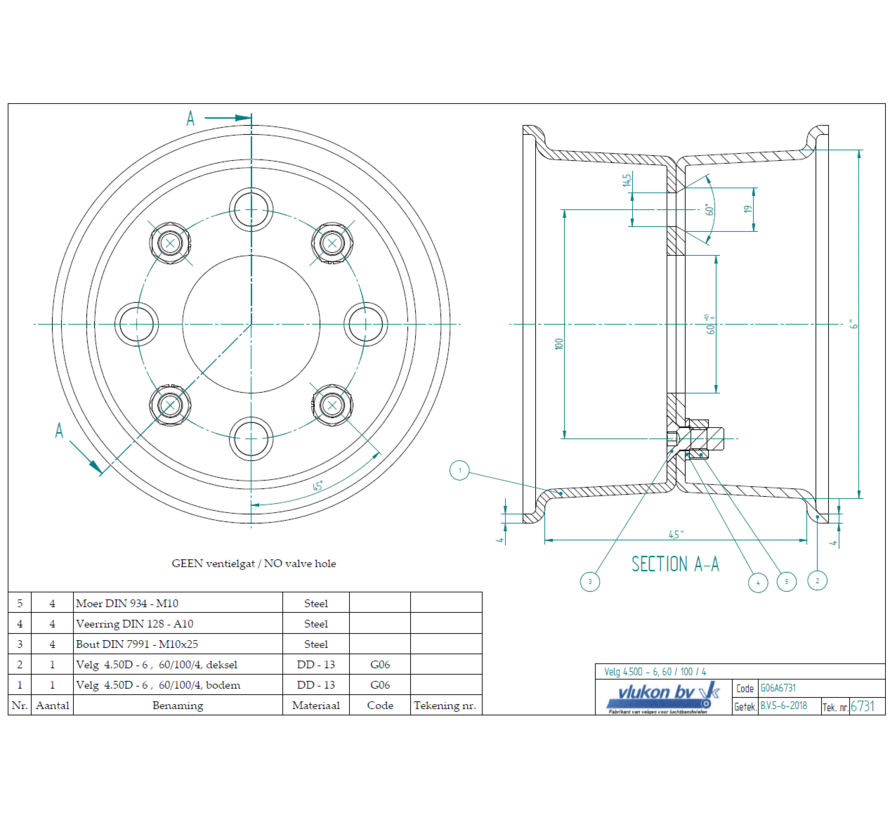

4.00 mm thick two piece divided rim | diameter: 6 inch | width: 4.50 inch | pcd: 100mm & center bore: 60mm l 4 bolt holes
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code G06Z6731
- SKU R_4.50-6.00F4.00__M4__BJ6731
