3.00 mm thick two piece divided rim | diameter: 6 inch | width: 4.50 inch | bearing in hub: 6204-2RS-C3

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 4.50D-6 for agricultural machinery, horticulture transport carts, tractors
This rim can be fitted with tyre size(s):
✓ 140-6

Technical details
A - Type: Assembled divided rim
B - Rim width: 4.50 inch
C - Diameter rim: 6 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): D
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 3.00 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 125 mm
J - Fitting length: 145 mm
L - Outer diameter hub: 51 mm
N - Bearing in hub: 6204-2RS-C3 mm
P - Axle hole diameter: 20 mm
Thickness of hub: 2 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

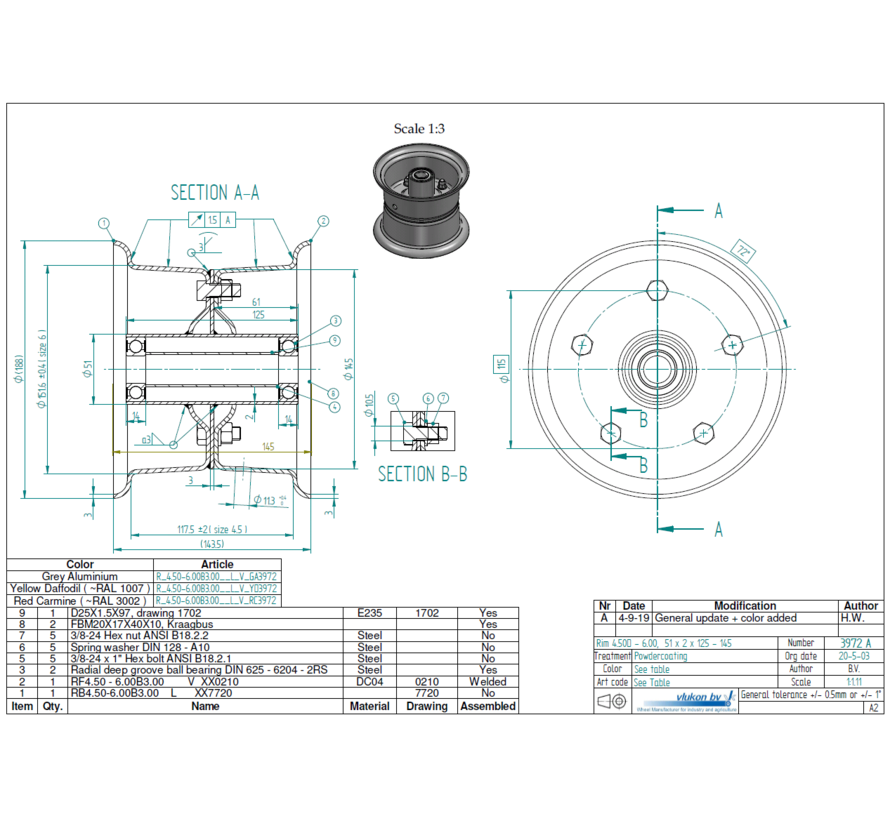

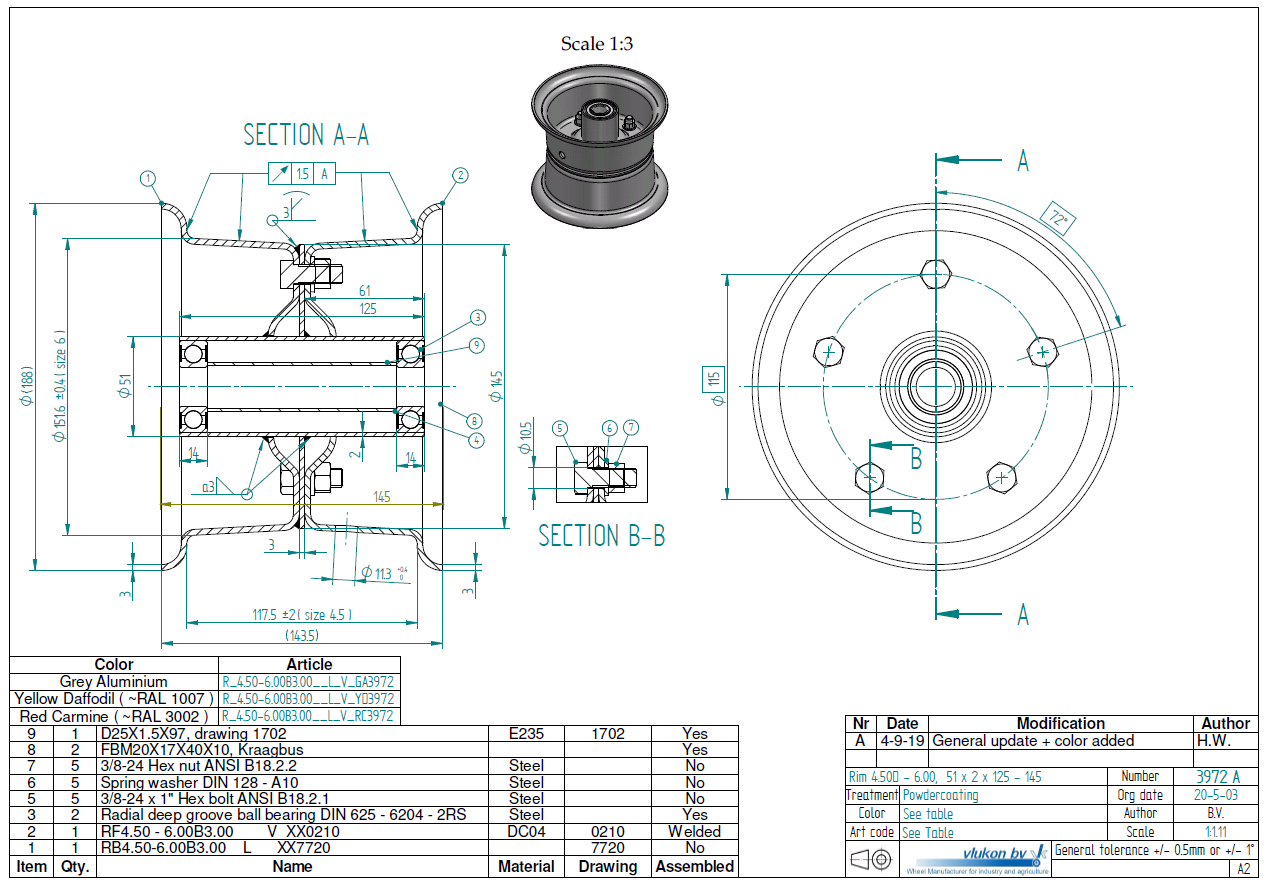

Vlukon Drawing ID: 3972
Old Vlukon ID: A08R3972
New Vlukon part number: R_4.50-6.00B3.00__L_V_RC3972

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 3.00 mm thick two piece divided rim | diameter: 6 inch | width: 4.50 inch | bearing in hub: 6204-2RS-C3

Rim size 4.50D-6 | 3.00 mm thick divided RIM | diameter: 6 inch | width: 4.50 inch | bearing in hub: 6204-2RS-C3

Quantity

Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
Short delivery times
Highest quality available
Ask us any colour you need
