3.00 mm thick one piece welded RIM, diameter: 12 inch, width: 4.50 inch, pcd: 120mm & center bore: 80mm l 6 bolt holes

Wheel rim 4.50JX12 H2 for material handling, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 155/70R12
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 4.50 inch
C - Diameter rim: 12 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): J
E - Offset: Neutral / No offset
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 3.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 80 mm
V - Pitch circle diameter (PCD): 120 mm
W - Number of bolt / stud holes: 6
X - Studhole Ø: 13 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Vermillion
Ral Colour : RAL 2002

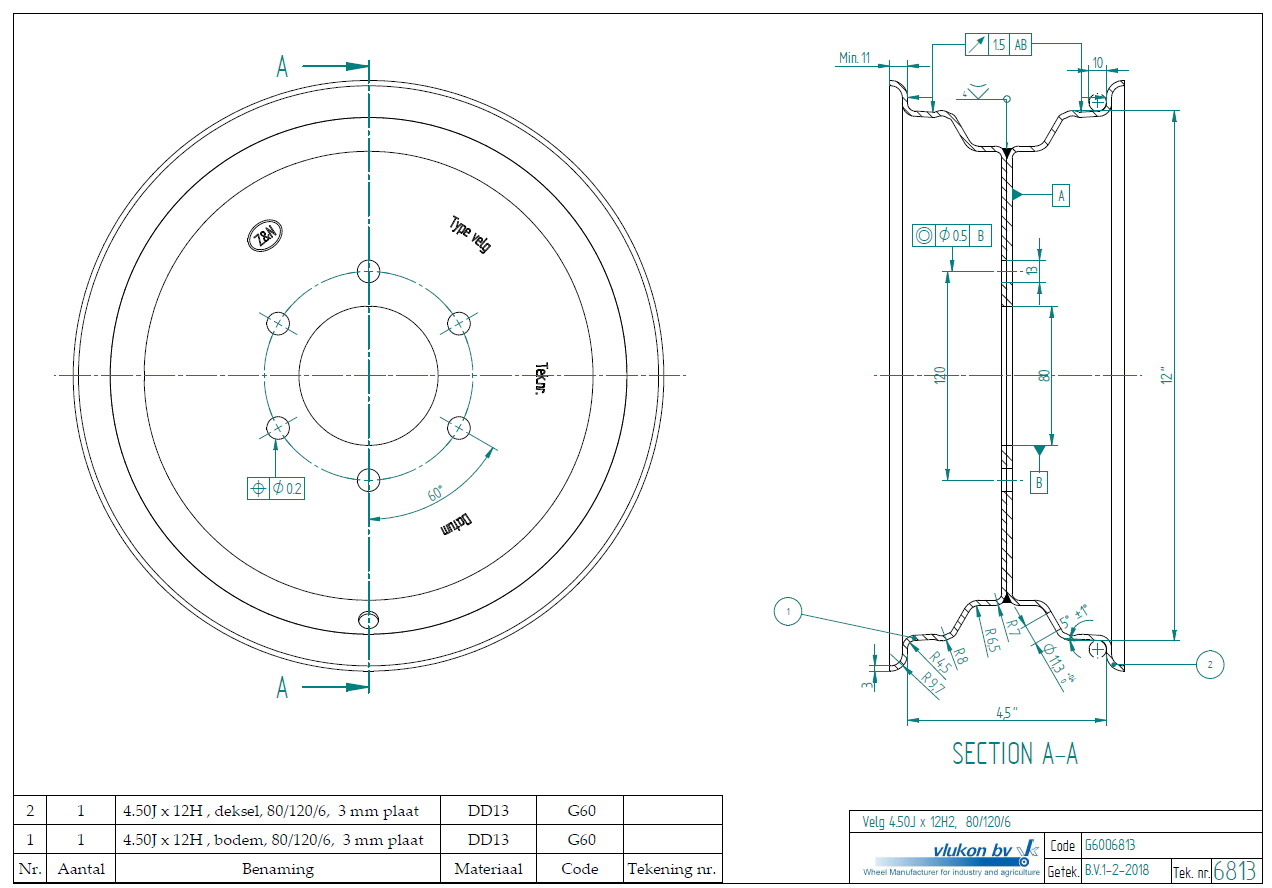

Vlukon Drawing ID: 6813
Old Vlukon ID: G60O6813
New Vlukon part number: R_4.50X12.00F3.00_2M6V1VN6813
