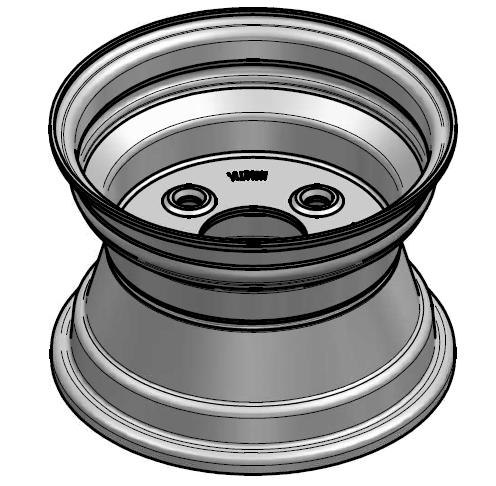

2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 5.50 inch, pcd: 100mm & center bore: 60mm l 4 Raised bolt holes

Wheel rim 5.50AX8 for agricultural machinery, lawn mowers, horticulture transport carts, hay tedders, material handling, light solid industrial tires, industrial high load trailers, forklift, aircraft tyres
This rim can be fitted with tyre size(s):
✓ 16x6.50-8
Because the rim is welded airtight all around and has a safety hump (H1 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 5.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: (H1) Safety hump
G - Rim thickness: 2.50 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 60 mm
V - Pitch circle diameter (PCD): 100 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: White
Ral Colour : RAL 9010

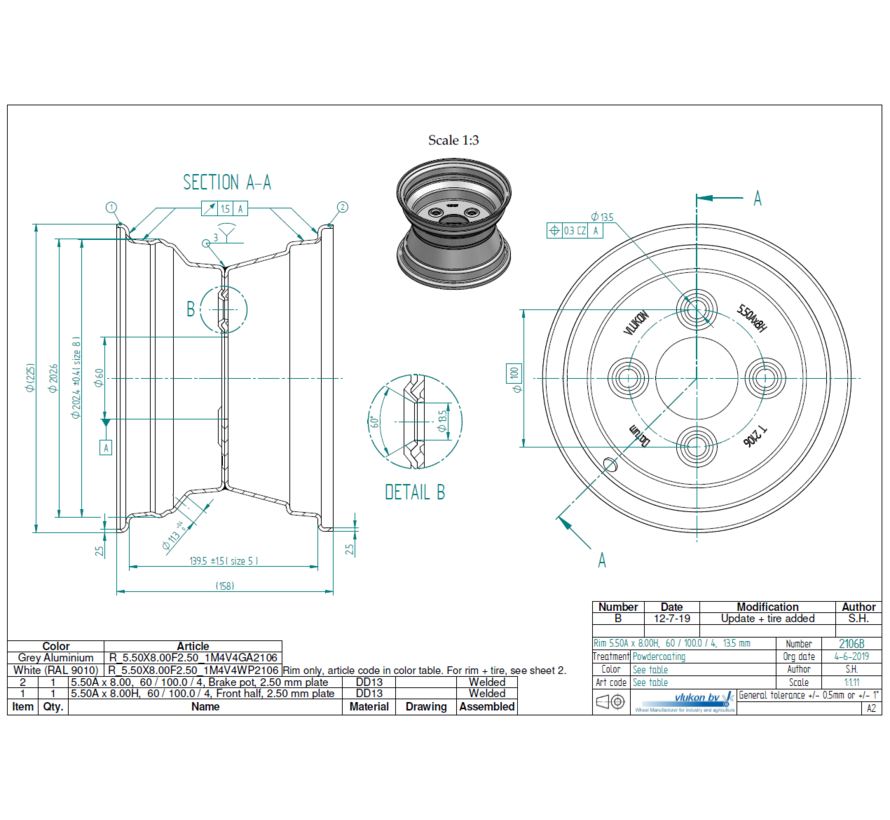

Vlukon Drawing ID: 2106
Old Vlukon ID: G26W2106
New Vlukon part number: R_5.50X8.00F2.50_1M4V4WP2106
