Wheel rim 5.50AX8 H2 for material handling, industrial high load trailers, caravans & mobile homes
This rim can be fitted with tyre size(s):
✓ 16x6.50-8
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.
Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 5.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk flat+ Bulge
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 2.50 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 55 mm
J - Fitting length: 55 mm
L - Outer diameter hub: 48 mm
N - Bearing in hub: keyway mm
P - Axle hole diameter: 20 mm
Thickness of hub: 14 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Yellow
Ral Colour : RAL 1023

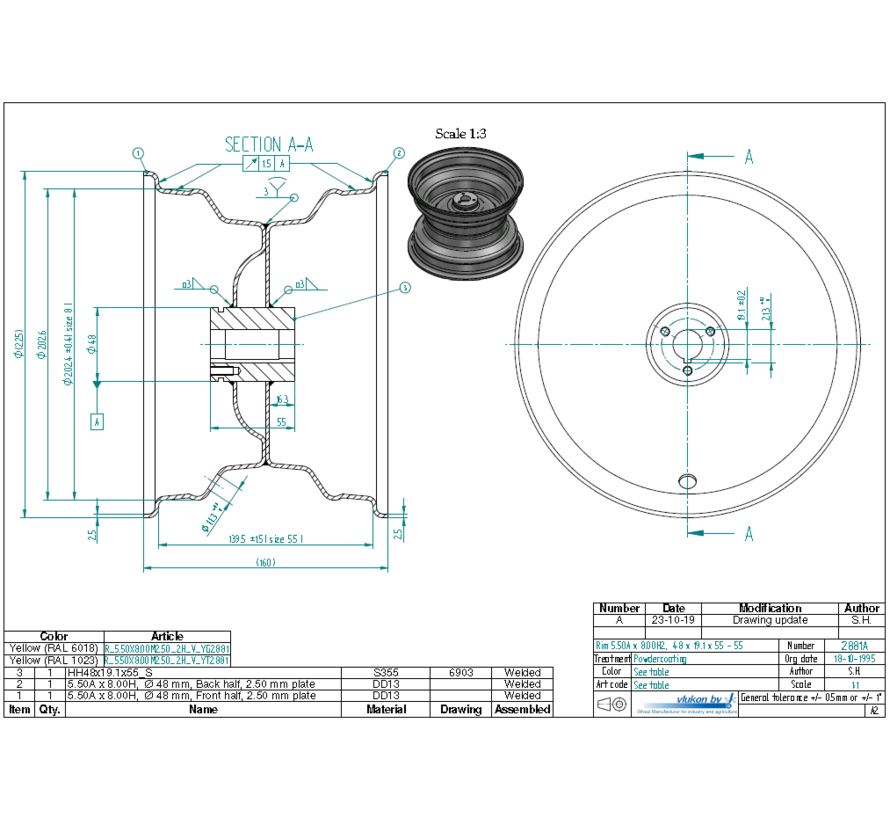

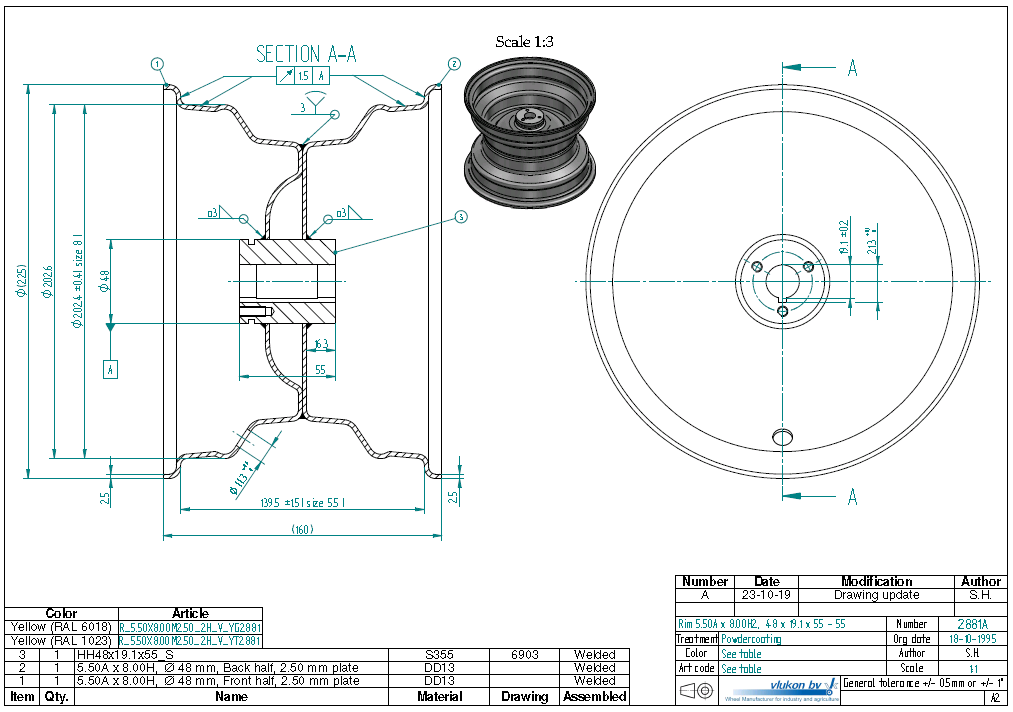

Vlukon Drawing ID: 2881
Old Vlukon ID: A26G2881TR413
New Vlukon part number: RV5.50X8.00M2.50_2H_V_YT2881

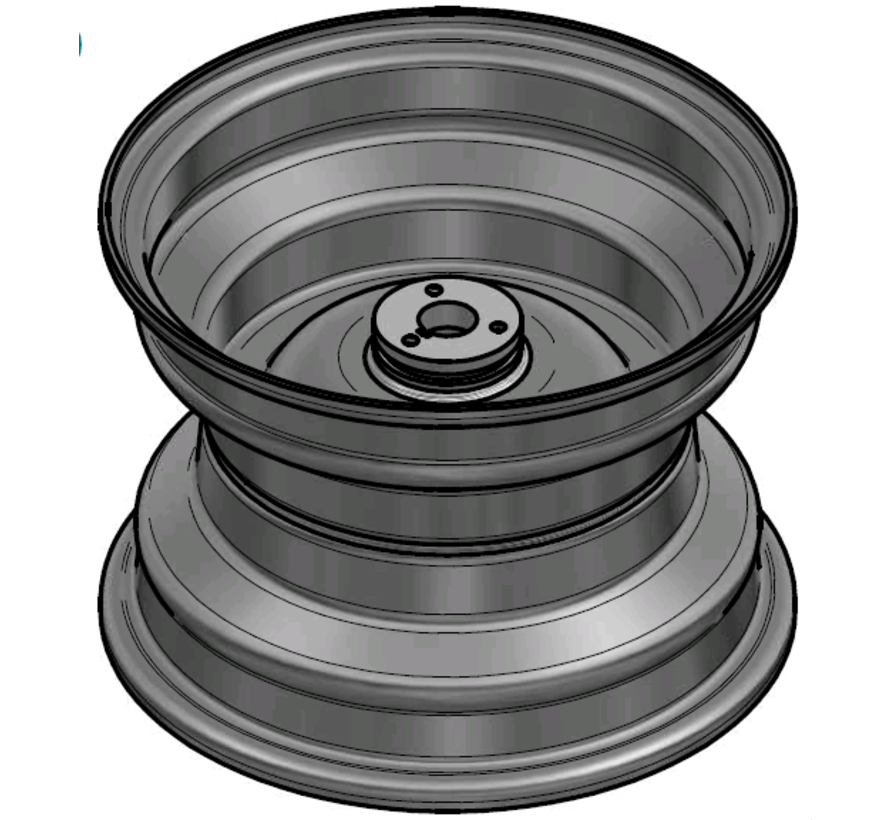

2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 5.50 inch, bearing in hub:
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code A26G2881TR413
- SKU RV5.50X8.00M2.50_2H_V_YT2881
