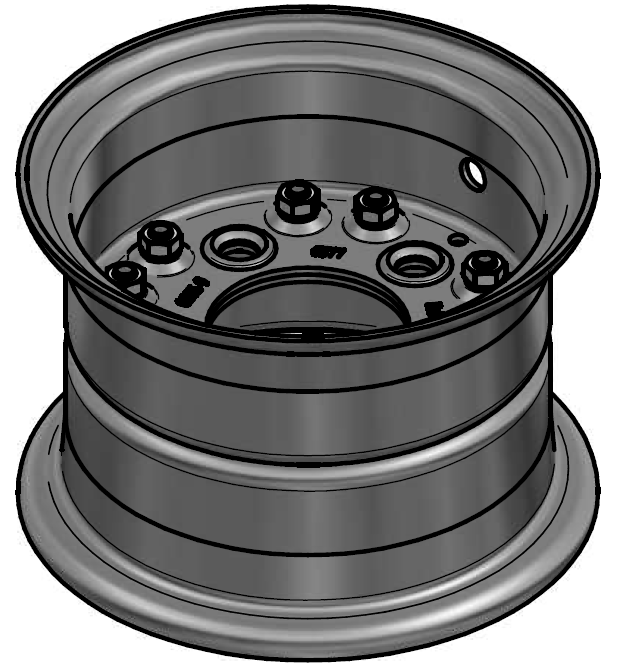

Wheel rim 6.00E-9 for forestry machinery, light solid industrial tires, industrial high load trailers, aerial lift, forklift
This rim can be fitted with tyre size(s):
✓ 21x6.00-9
Technical details
A - Type: Assembled divided rim
B - Rim width: 6.00 inch
C - Diameter rim: 9 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): E
E - Offset:
F - Safety hump: No hump
G - Rim thickness: 4.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 94 mm
V - Pitch circle diameter (PCD): 140 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 18,5 mm
Y - Studhole shape: Raised + Countersink
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Black
Ral Colour : RAL 9005

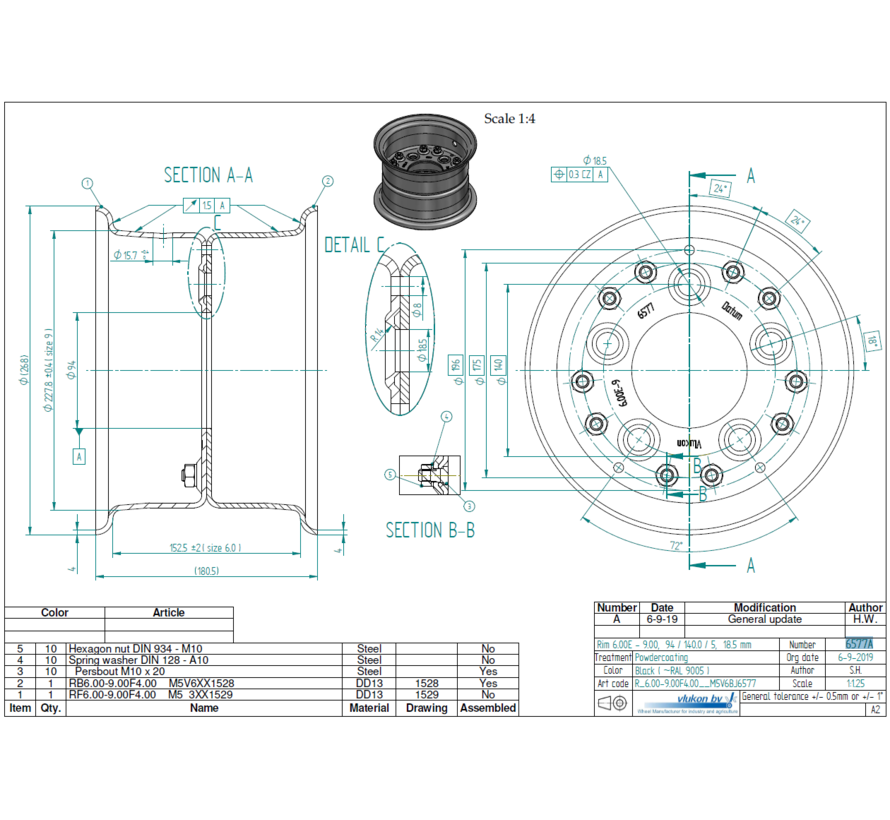

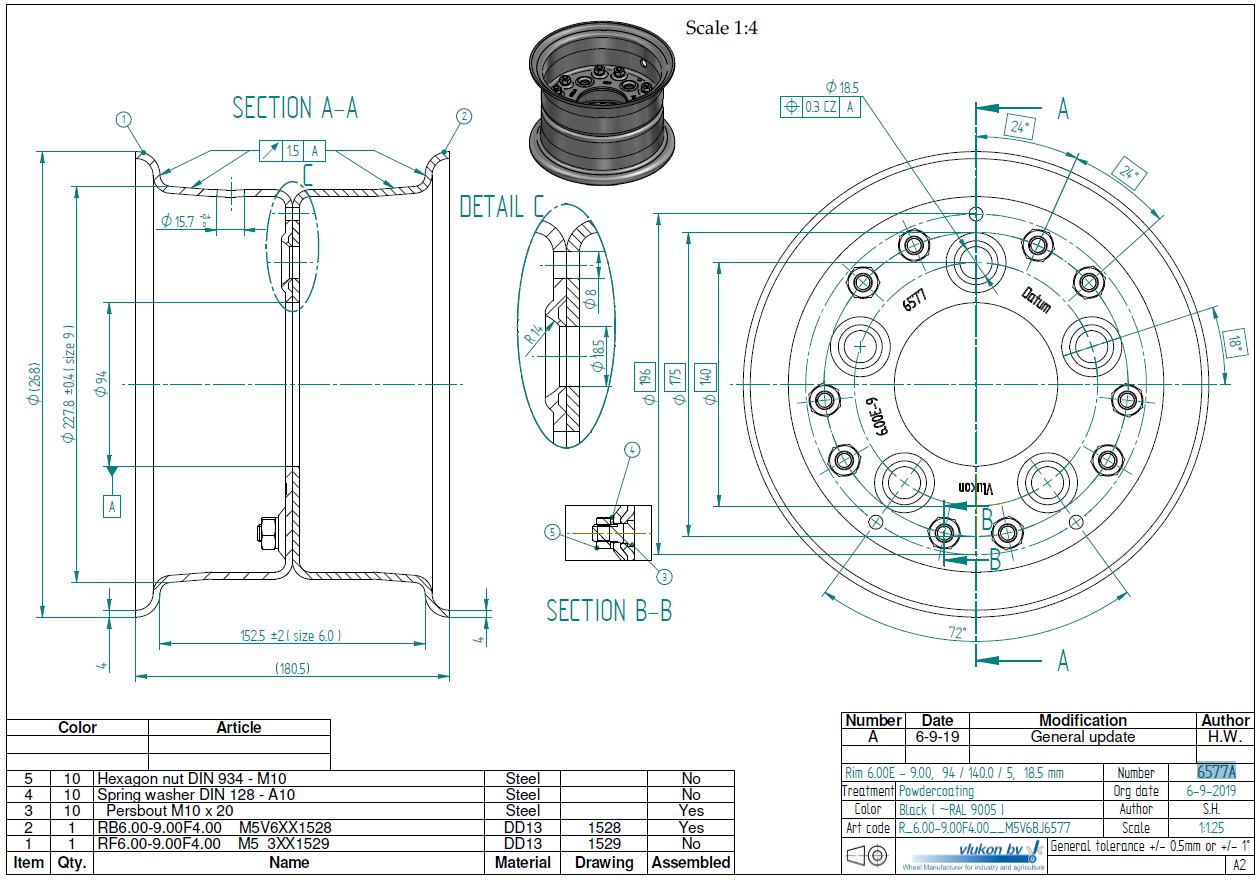

Vlukon Drawing ID: 6577
Old Vlukon ID: G91Z6577
New Vlukon part number: R_6.00-9.00F4.00__M5V6BJ6577
4.00 mm thick two piece divided rim | diameter: 9 inch | width: 6.00 inch | pcd: 140mm & center bore: 94mm l 5 Raised + Countersink bolt holes
Product description
Customizations & Development
Customizations & Development
We are unique in development and productions for small manufacturing series
Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.
Product information
- Article code G91Z6577
- SKU R_6.00-9.00F4.00__M5V6BJ6577
