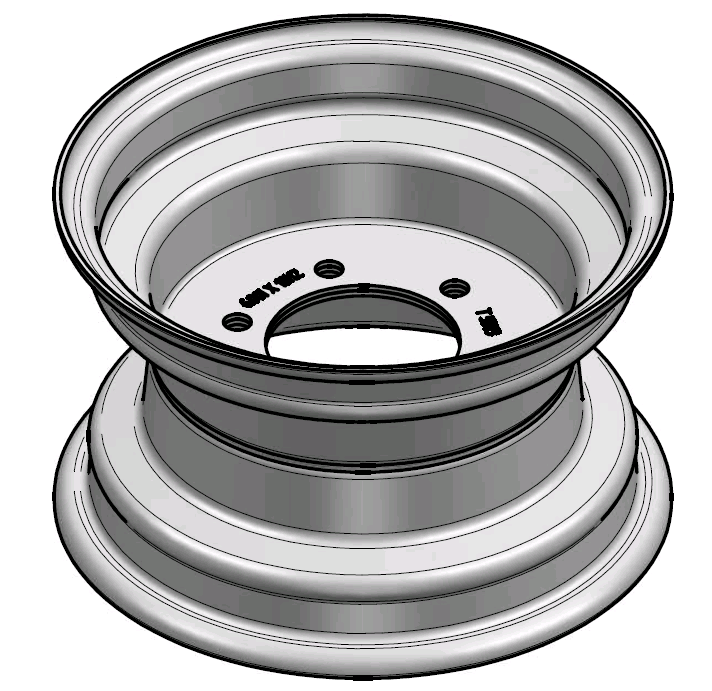

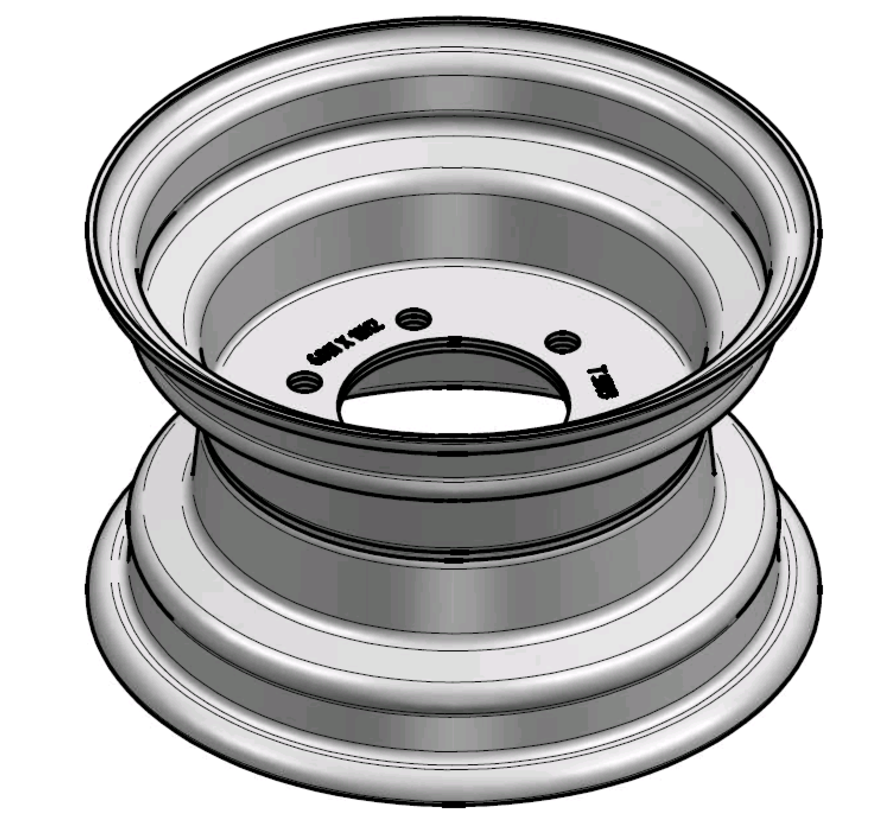

3.00 mm thick one piece welded RIM, diameter: 10 inch, width: 6.00 inch, pcd: 120mm & center bore: 90mm l 6 bolt holes

Wheel rim 6.00IX10 H2 for forestry machinery, agricultural machinery, horticulture transport carts, tractors
This rim can be fitted with tyre size(s):
✓ 20x10.00-10
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 6.00 inch
C - Diameter rim: 10 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): I
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 3.00 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 90 mm
V - Pitch circle diameter (PCD): 120 mm
W - Number of bolt / stud holes: 6
X - Studhole Ø: 13,5 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Vermillion
Ral Colour : RAL 2002

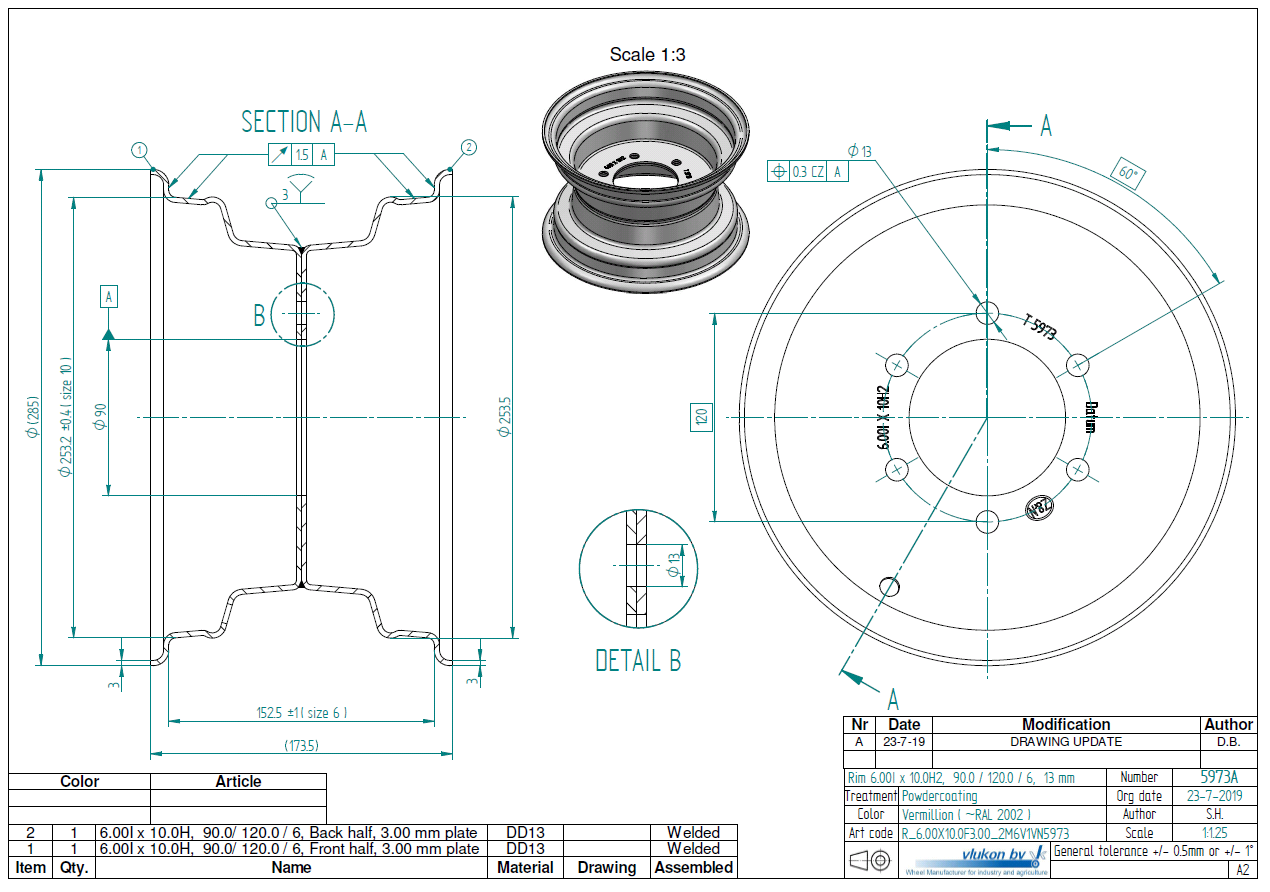

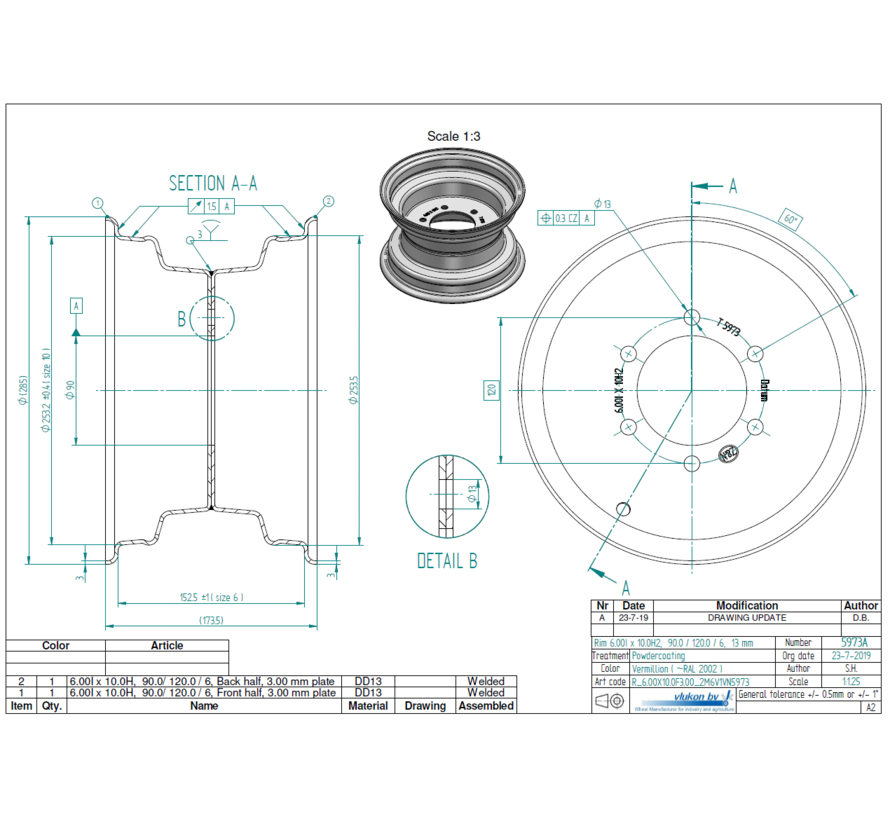

Vlukon Drawing ID: 5973
Old Vlukon ID: G45O5973
New Vlukon part number: R_6.00X10.0F3.00_2M6V1VN5973
