2.50 mm thick one piece welded wheel rim with double saftey hump | diameter: 10 inch | width: 6.00 inch | pcd: 140mm & center bore: 94mm l 5 bolt holes

Wheel rim 6.00X10 H2 ET: 20mm for forestry machinery, agricultural machinery, horticulture transport carts
This rim can be fitted with tyre size(s):
✓ 20x10.00-10
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 6.00 inch
C - Diameter rim: 10 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO):
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 2.50 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 94 mm
V - Pitch circle diameter (PCD): 140 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 16 mm
AB - Valve hole: Valve hole protection cap
Paint finish: Powder coating
Colour: White
Ral Colour : RAL 9010

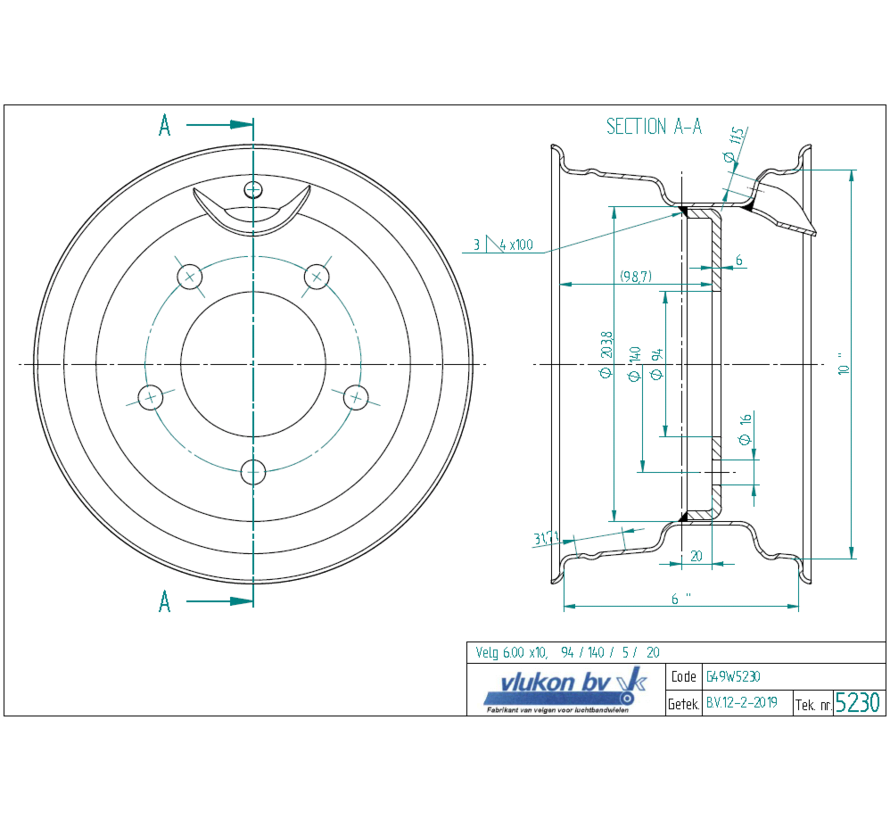

Vlukon Drawing ID: 5230
Old Vlukon ID: G49W5230
New Vlukon part number: R_6.00R10.00F2.50+2M5P_WP5230
