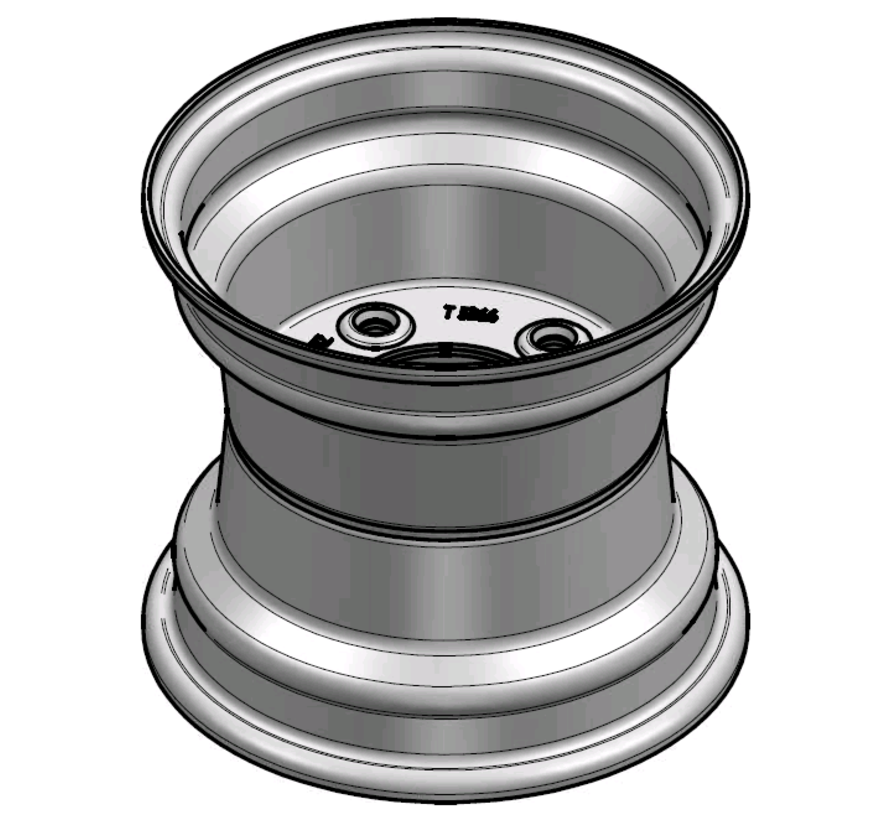

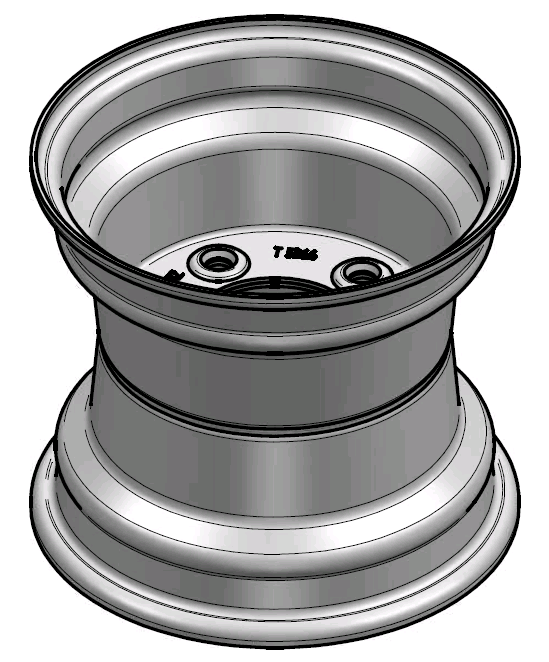

2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 7.00 inch, pcd: 114,3mm & center bore: 79,5mm l 5 Raised bolt holes

Wheel rim 7.00AX8 for forestry machinery, agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 18x8.50-8
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 7.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 2.50 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 79,5 mm
V - Pitch circle diameter (PCD): 114,3 mm
W - Number of bolt / stud holes: 5
X - Studhole Ø: 12,5 mm
Y - Studhole shape: Raised
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

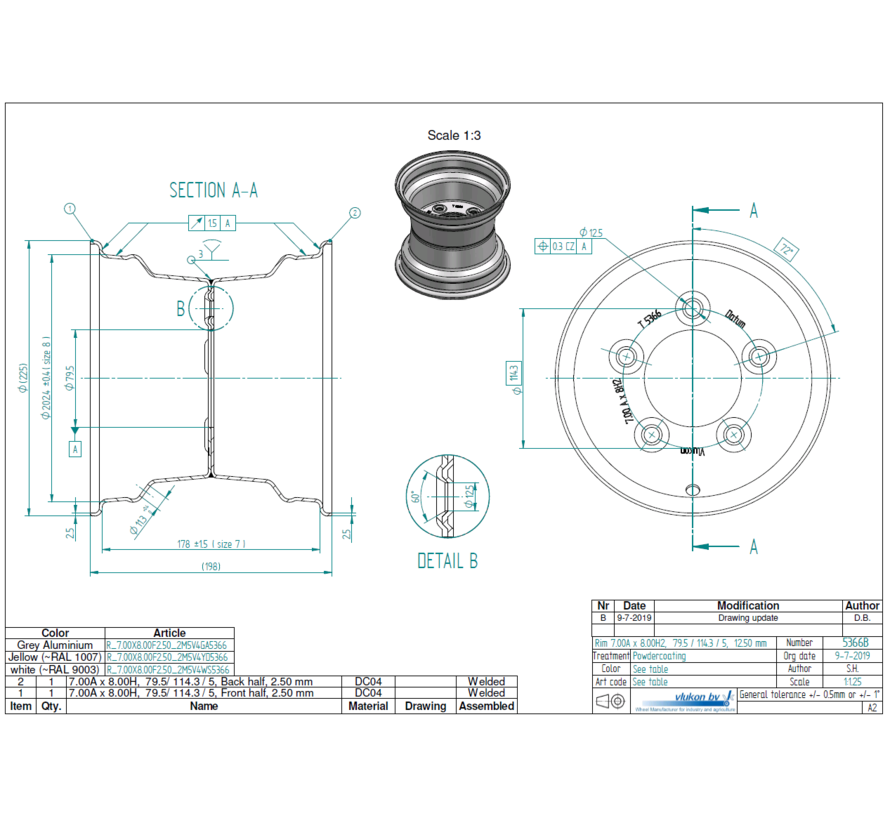

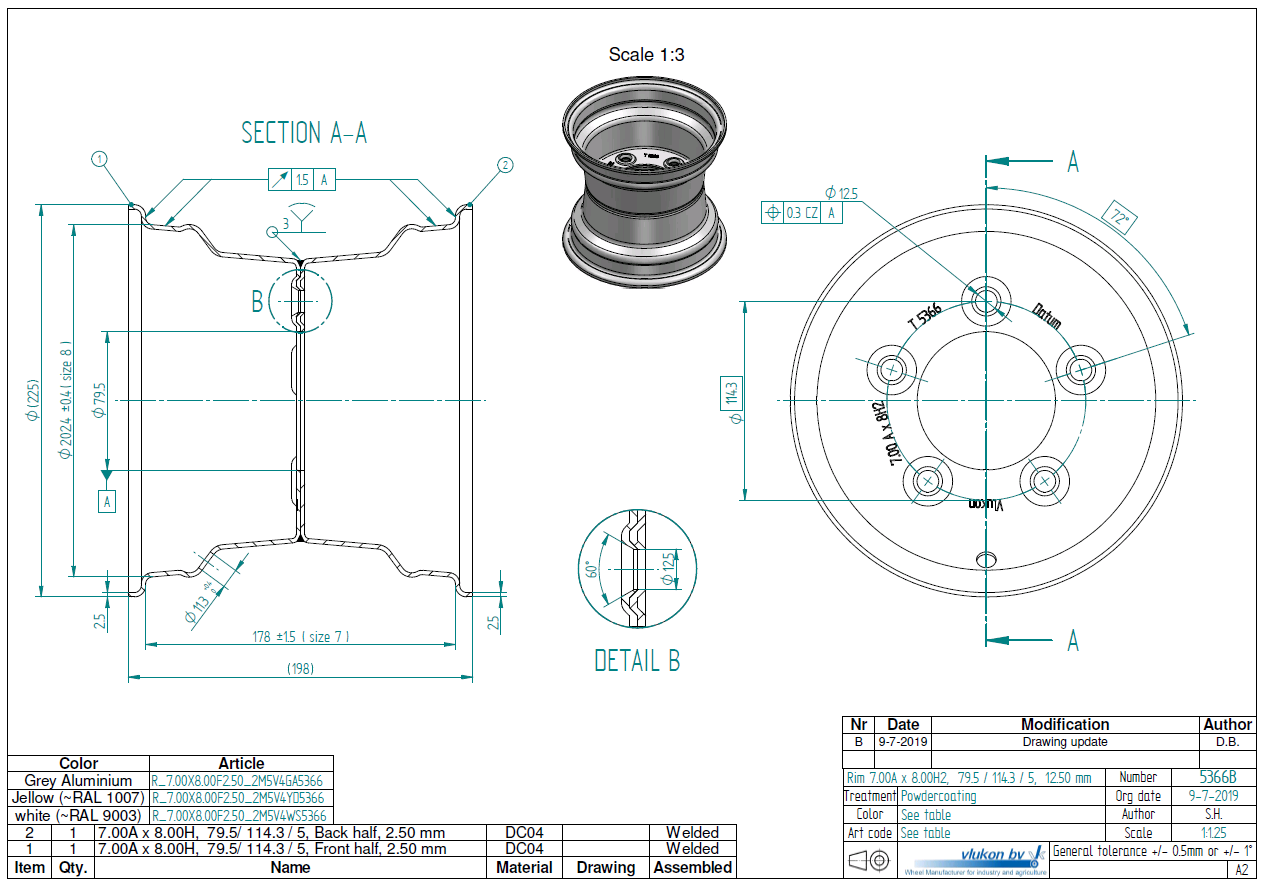

Vlukon Drawing ID: 5366
Old Vlukon ID: G28A5366
New Vlukon part number: R_7.00X8.00F2.50_2M5V4GA5366
