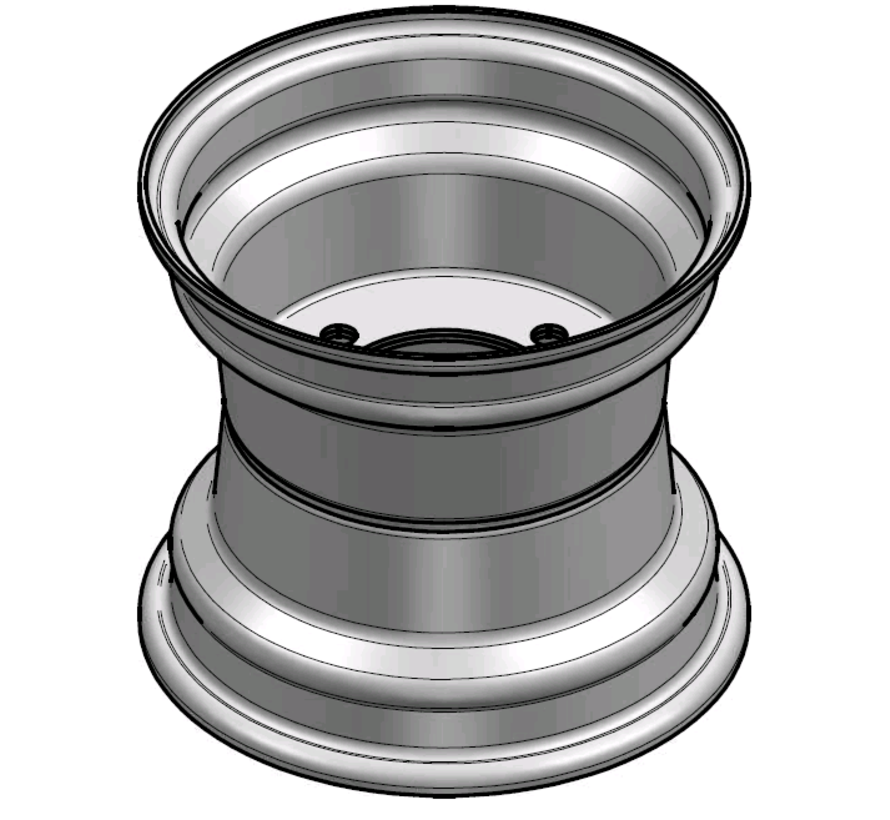

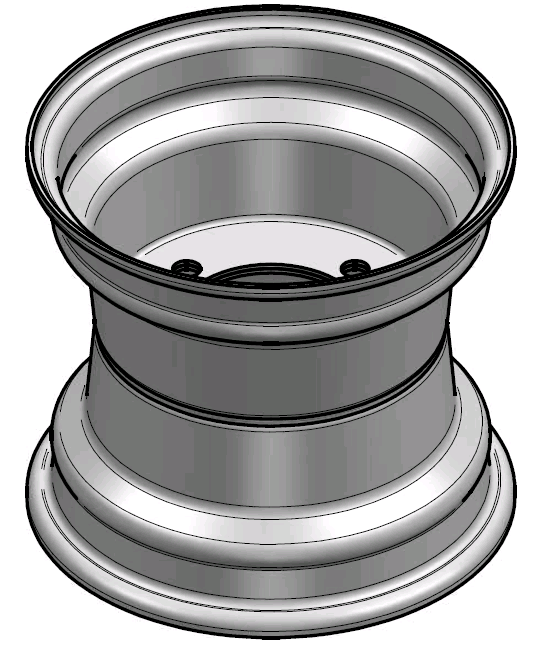

2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 7.00 inch, pcd: 110mm & center bore: 85mm l 4 bolt holes

Wheel rim 7.00AX8 for forestry machinery, agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 18x8.50-8
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 7.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): A
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 2.50 mm
Rim connection: rim with center bore, pcd and bolt fitting
U - Center bore diameter: 85 mm
V - Pitch circle diameter (PCD): 110 mm
W - Number of bolt / stud holes: 4
X - Studhole Ø: 13 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

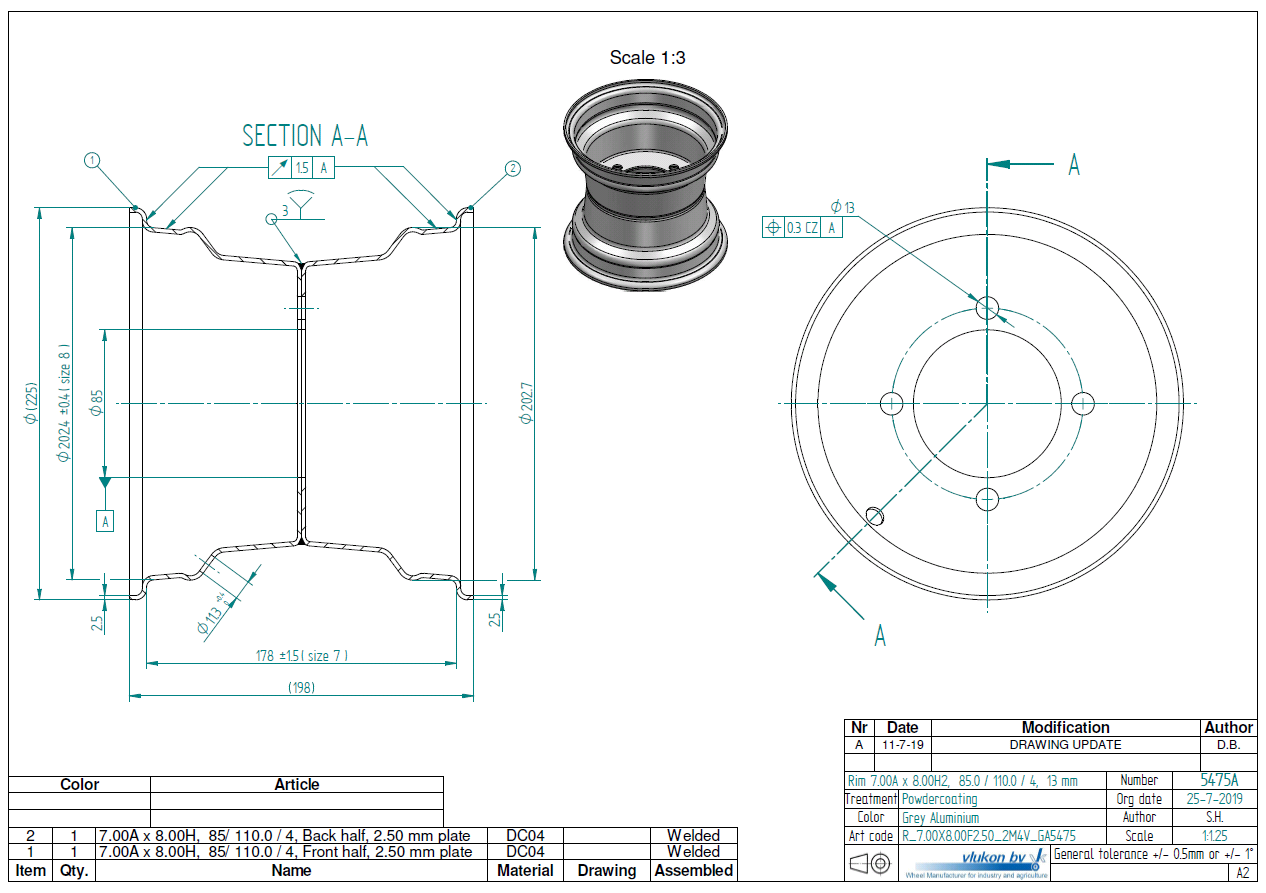

Vlukon Drawing ID: 5475
Old Vlukon ID: G28A5475
New Vlukon part number: R_7.00X8.00F2.50_2M4V_GA5475
