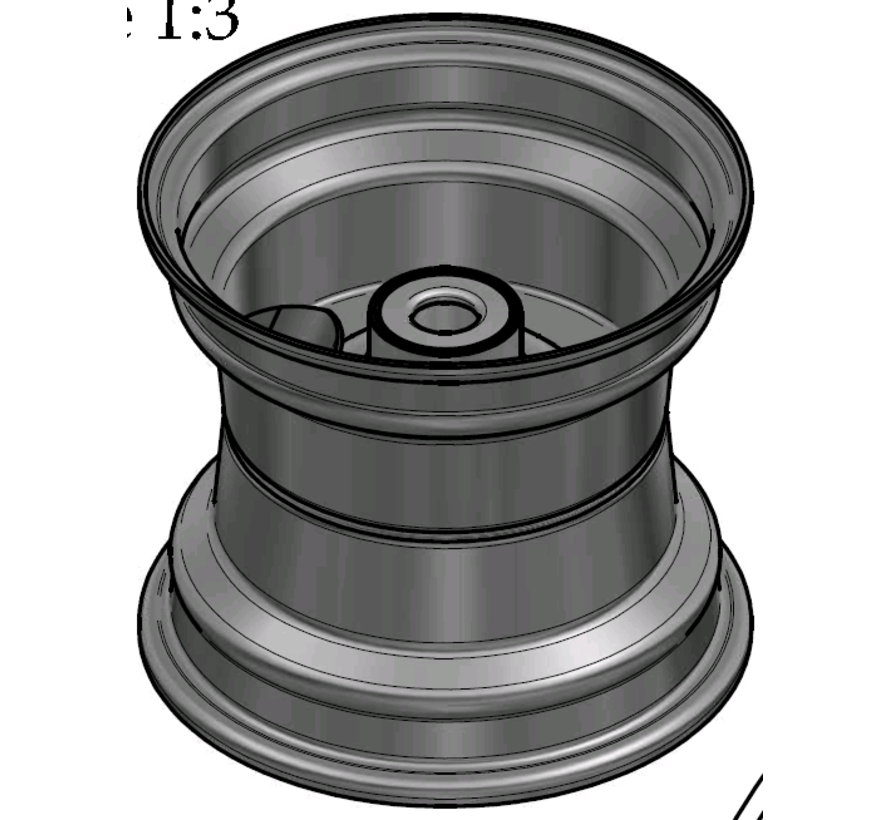

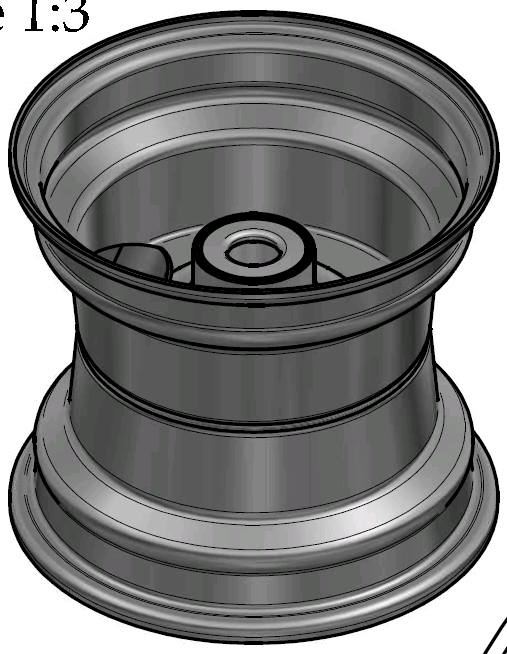

2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 7.00 inch, bearing in hub: 6205-2RS

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 7.00AX8 for forestry machinery, agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 18x8.50-8
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 7.00 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): A
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 2.50 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 90 mm
J - Fitting length: 90 mm
L - Outer diameter hub: 56 mm
N - Bearing in hub: 6205-2RS mm
P - Axle hole diameter: 25 mm
Thickness of hub: 2 mm
AB - Valve hole: Valve hole protection cap
Paint finish: Powder coating
Colour: Grey Aluminium

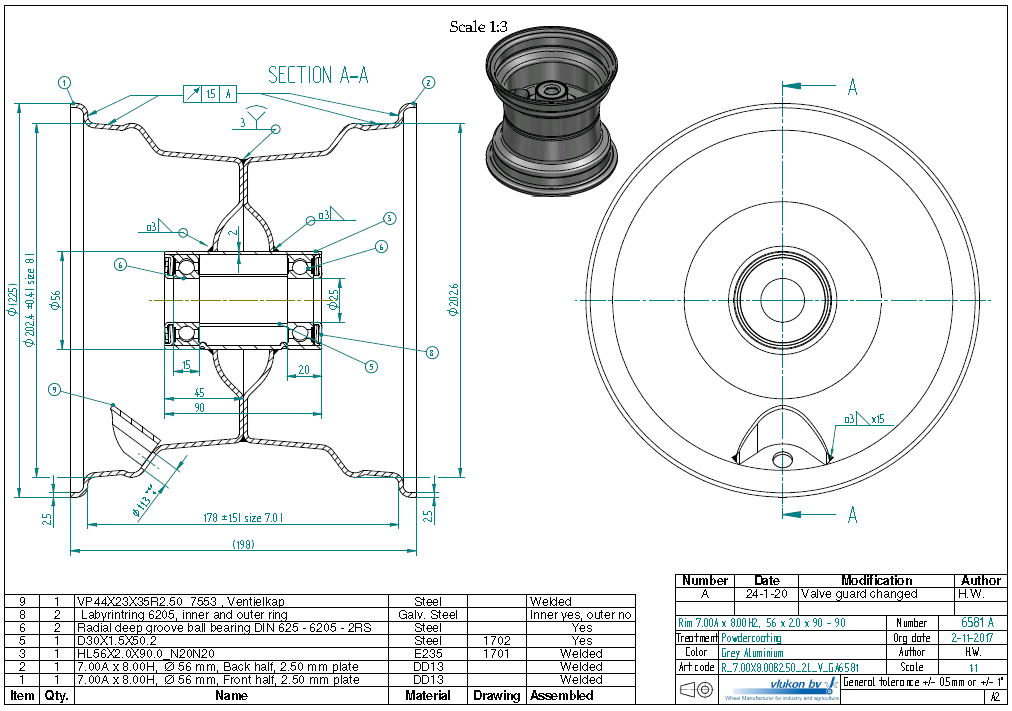

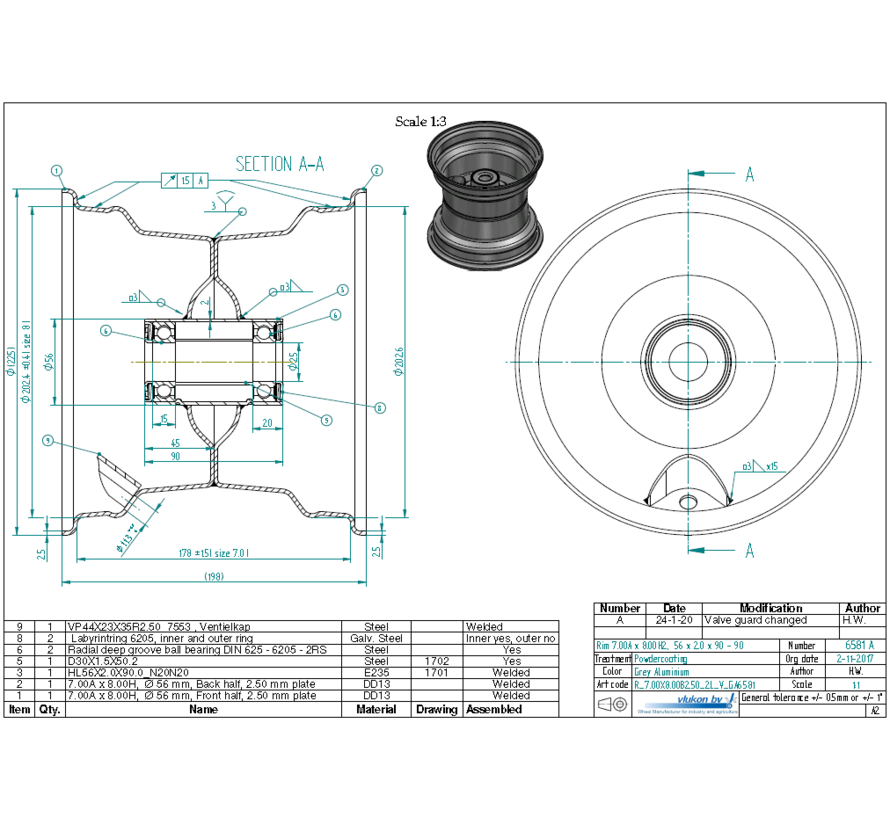

Vlukon Drawing ID: 6581
Old Vlukon ID: A28A6581
New Vlukon part number: R_7.00X8.00B2.50_2L_P_GA6581
