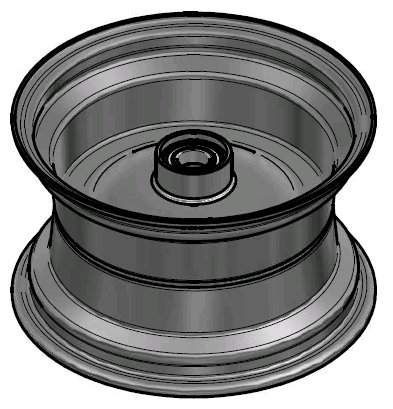

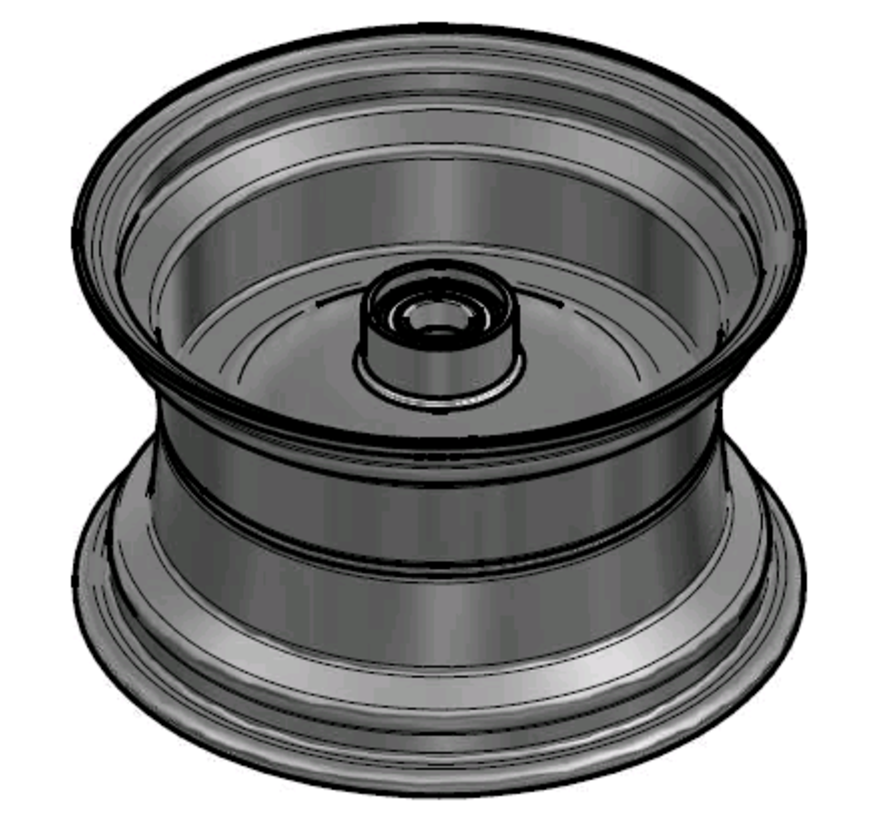

3.00 mm thick one piece welded RIM, diameter: 12 inch, width: 7.00 inch, bearing in hub: 6206-2RS

Wheel rim 7.00JAX12 for lawn mowers, horticulture transport carts
This rim can be fitted with tyre size(s):
✓ 10.0/80-12
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 7.00 inch
C - Diameter rim: 12 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): JA
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 3.00 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 120 mm
J - Fitting length: 104 mm
L - Outer diameter hub: 70 mm
N - Bearing in hub: 6206-2RS mm
P - Axle hole diameter: 30 mm
Thickness of hub: 5 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Red
Ral Colour : RAL 3002

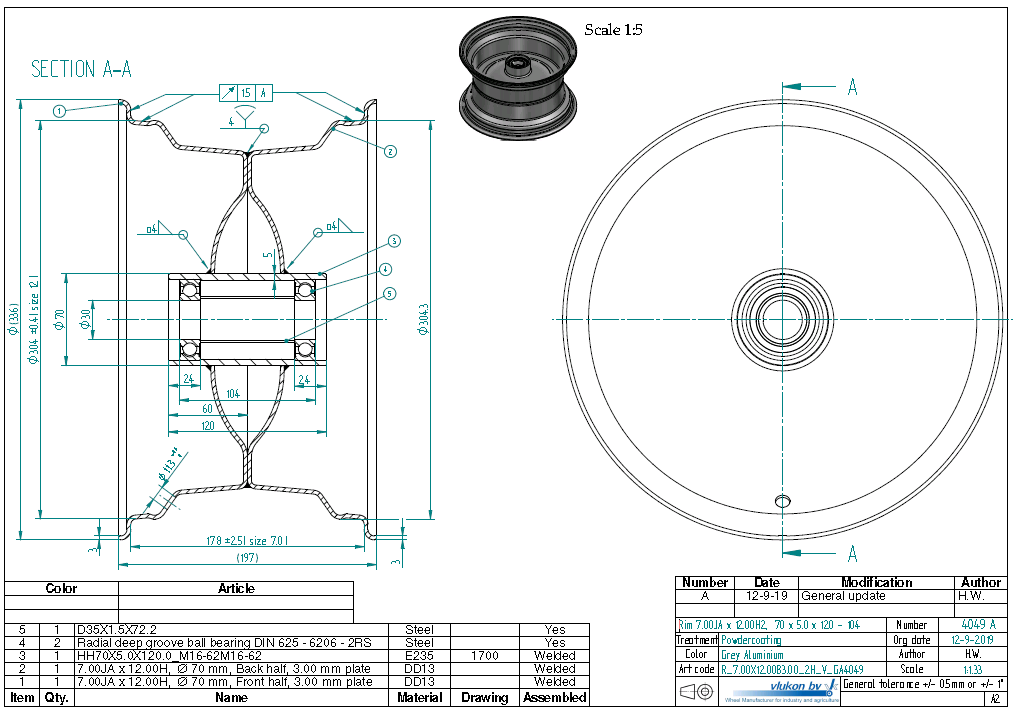

Vlukon Drawing ID: 4049
Old Vlukon ID: A66R4049
New Vlukon part number: R_7.00X12.0B3.00_2H_V_RC4049
