1.75 mm thick one piece welded RIM, diameter: 8 inch, width: 2.50 inch, bearing in hub: 6205-RS

Wheel rim 2.50AX8 for material handling, wheelbarrows and light carts, industrial high load trailers
This rim can be fitted with tyre size(s):
✓ 4.00-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 2.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): A
E - Offset: Neutral / No offset
F - Safety hump: No hump
G - Rim thickness: 1.75 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 81 mm
J - Fitting length: 66 mm
L - Outer diameter hub: 60 mm
N - Bearing in hub: 6205-RS mm
P - Axle hole diameter: 25 mm
Thickness of hub: 6 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: White
Ral Colour : RAL 9010

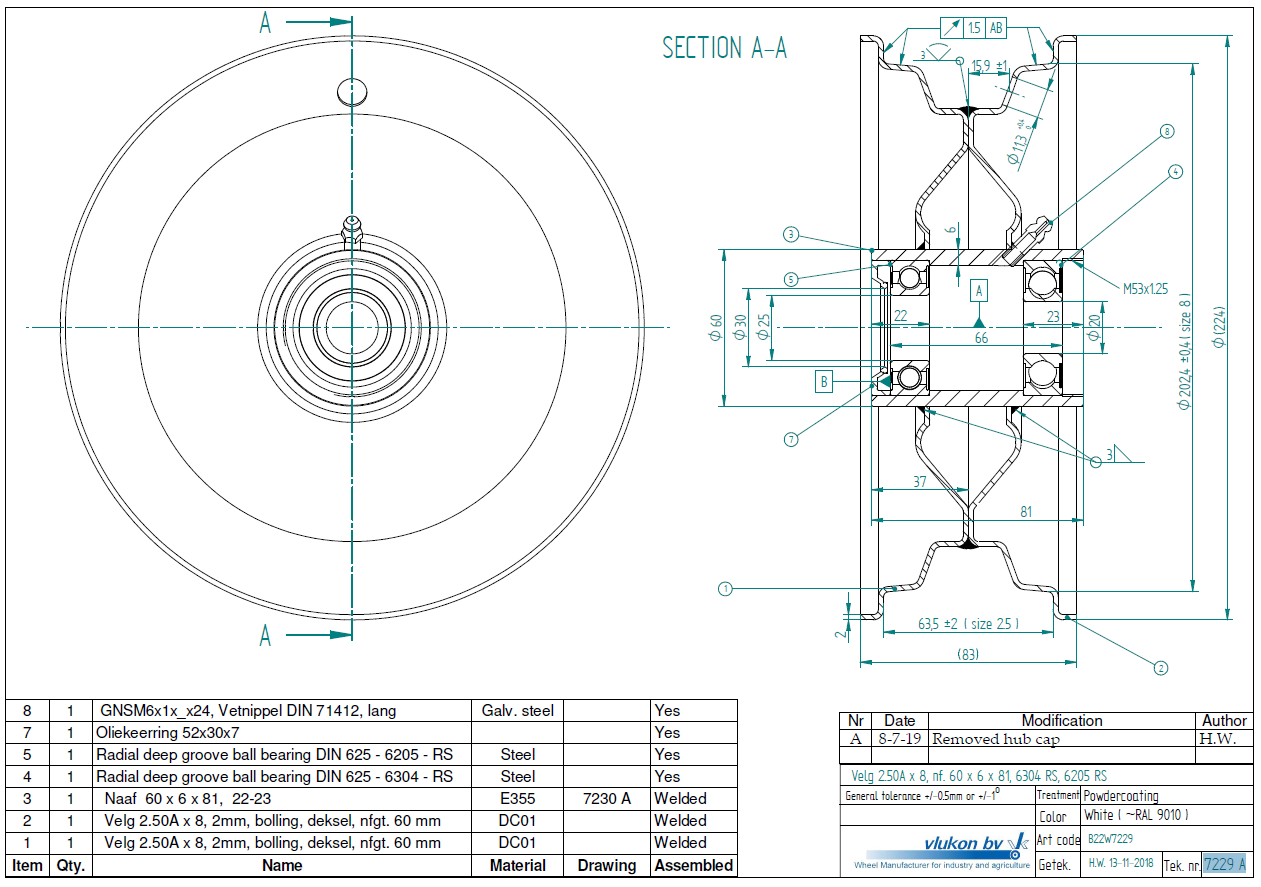

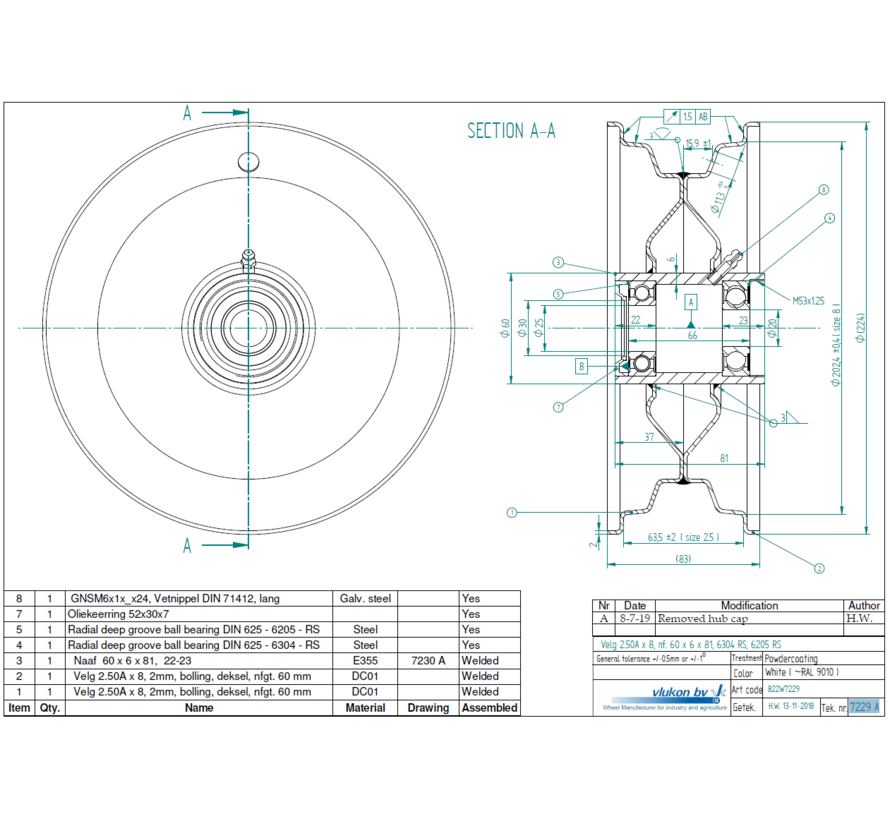

Vlukon Drawing ID: 7229
Old Vlukon ID: B22W7229
New Vlukon part number: R_2.50X8.00B1.75__HGV_WP7229
