2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 5.50 inch, bearing in hub:

In stock
Brand: VLUKON

Product description
Customizations & Development

Wheel rim 5.50AX8 for agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 16x6.50-8
Because the rim is welded airtight all around, it is also suitable for mounting tubeless tyres. However, it is not a hump rim where the edge of the tyre lies in a specially shaped groove to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 5.50 inch
C - Diameter rim: 8 inch
D - Flange disk: Flange disk with Bulge
D - Flange geometry (ETRTO): A
E - Offset:
F - Safety hump: No hump
G - Rim thickness: 2.50 mm
Rim connection: Wheel rim with integral hub
H - Hub lenght: 73 mm
J - Fitting length: 64 mm
L - Outer diameter hub: 56 mm
P - Axle hole diameter: 25 mm
Thickness of hub: 2 mm
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Grey Aluminium

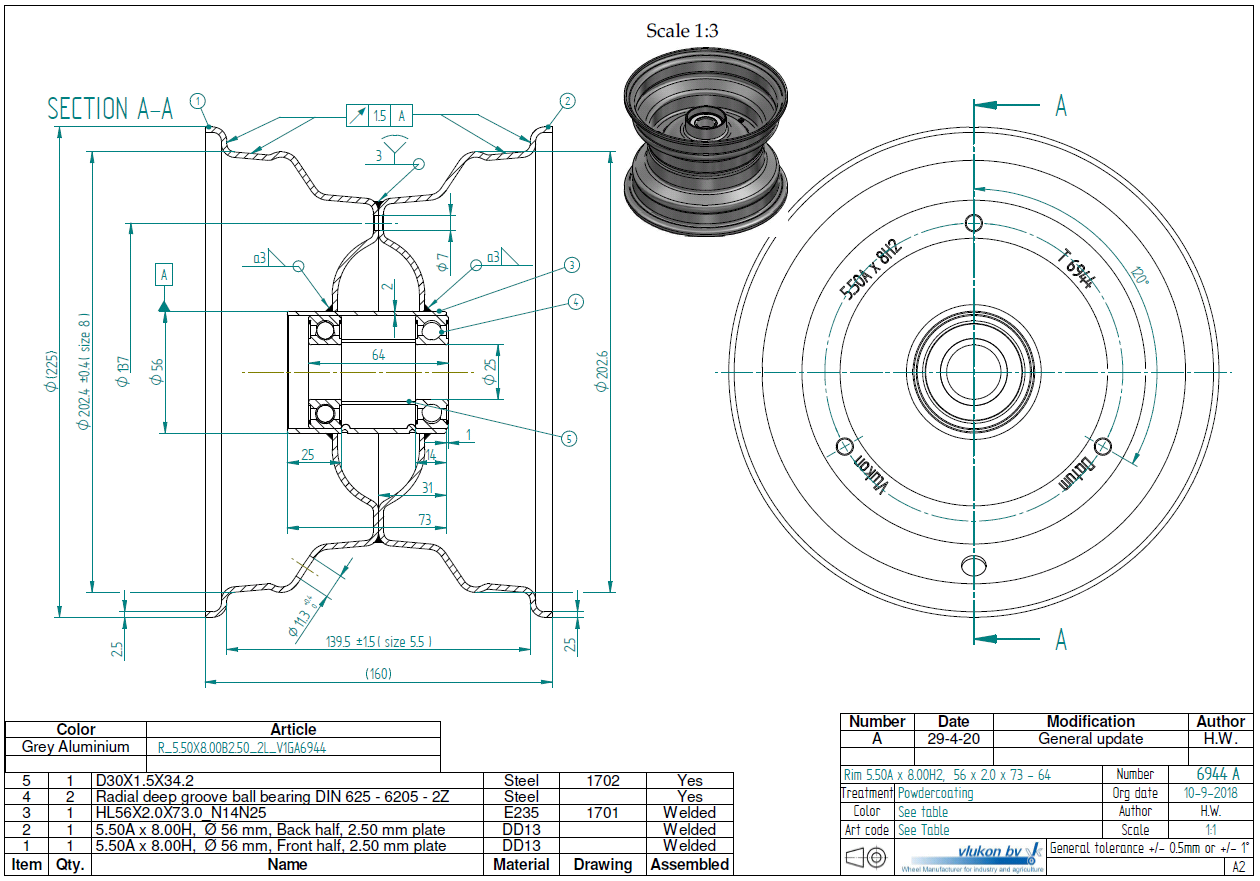

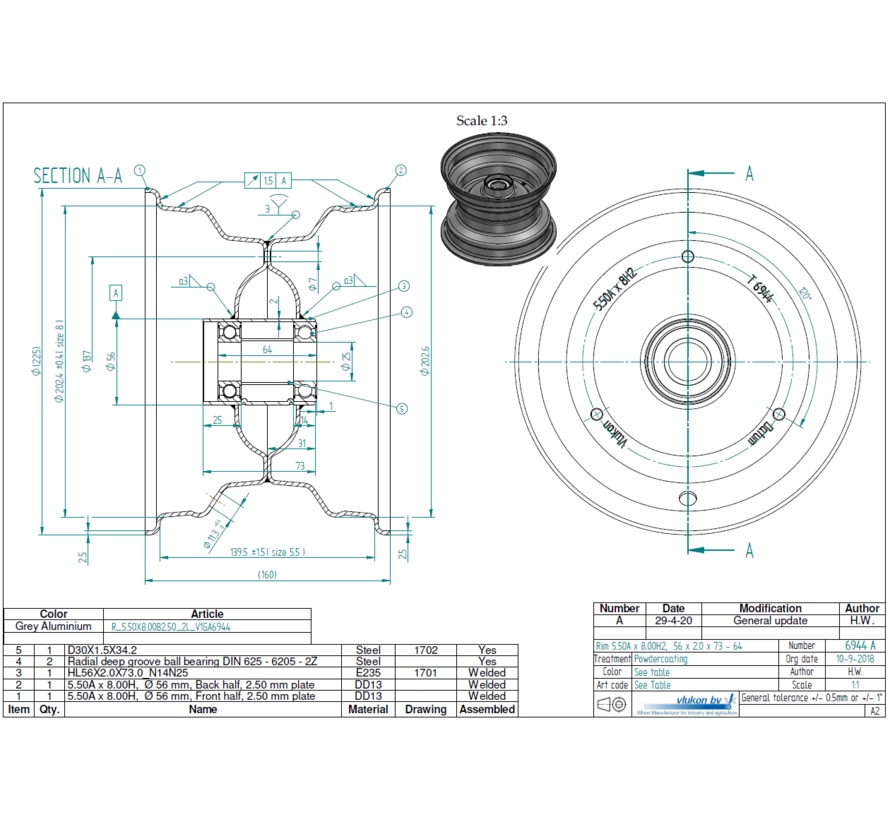

Vlukon Drawing ID: 6944
Old Vlukon ID: B26A6944
New Vlukon part number: R_5.50X8.00B2.50_2L_V1GA6944

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 5.50 inch, bearing in hub:

Rim size 5.50AX8 | 2.50 mm thick one piece welded RIM, diameter: 8 inch, width: 5.50 inch, bearing in hub:

Quantity

Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
Short delivery times
Highest quality available
Ask us any colour you need
