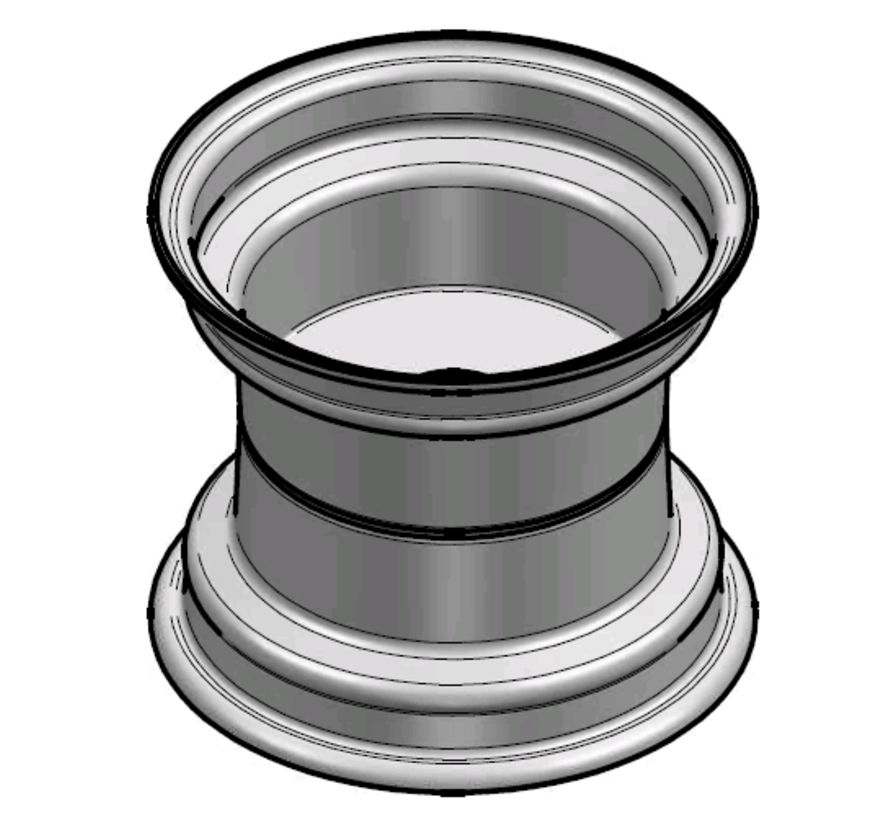

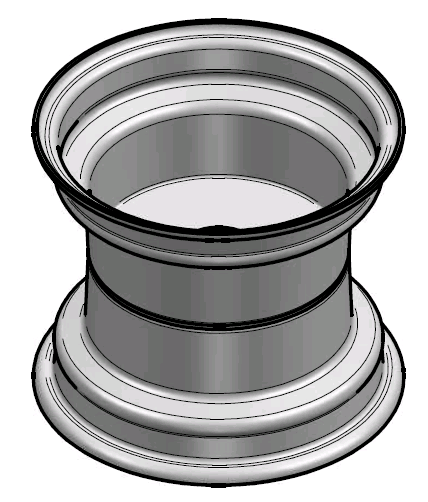

3.00 mm thick one piece welded RIM, diameter: 10 inch, width: 8.50 inch,

Product description

Wheel rim 8.50IX10 for forestry machinery, agricultural machinery, lawn mowers, horticulture transport carts, hay tedders
This rim can be fitted with tyre size(s):
✓ 20.5x10.00-10
Because the rim is welded airtight all around and has a double safety hump (H2 rim), it is also suitable for mounting tubeless tyres. The safety hump is a specially shaped groove for the edge of the tyre to prevent the tyre from rolling off the rim when the tyre is flat.

Technical details
A - Type: Welded wheel rim for a pneumatic or solid rubber tyre
B - Rim width: 8.50 inch
C - Diameter rim: 10 inch
D - Flange disk: Flat flange disk
D - Flange geometry (ETRTO): I
E - Offset:
F - Safety hump: (H2) Double safety hump
G - Rim thickness: 3.00 mm
Rim connection: _
AB - Valve hole: Rim with valve hole
Paint finish: Powder coating
Colour: Blank

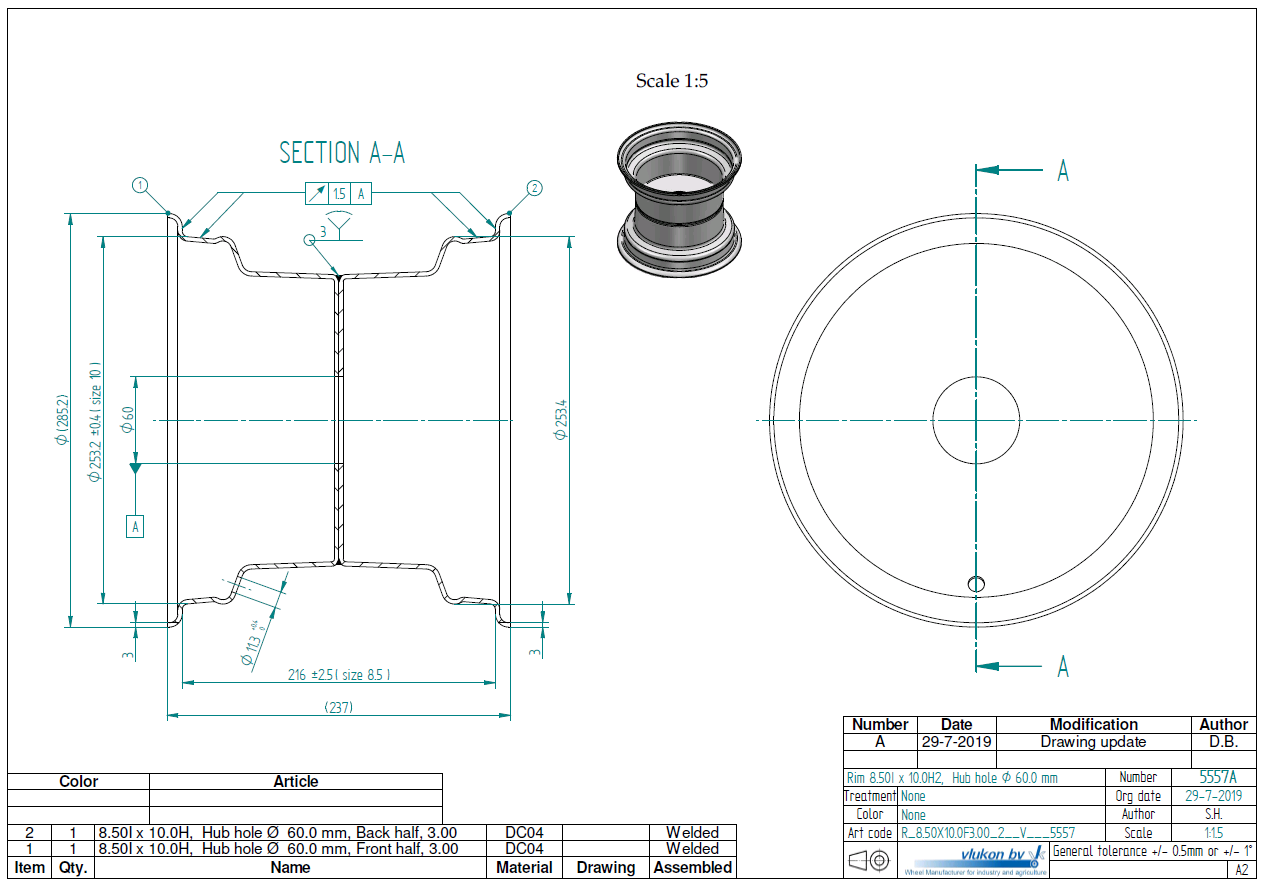

Vlukon Drawing ID: 5557
Old Vlukon ID: G68T5557BLA
New Vlukon part number: R_8.50X10.0F3.00_2__V___5557

Customizations & Development

Customizations & Development

We are unique in development and productions for small manufacturing series

More information

Our team consists of 45 persons who have an extensive knowlegde in customize rim productions.

VLUKON 3.00 mm thick one piece welded RIM, diameter: 10 inch, width: 8.50 inch,

Rim size 8.50IX10H2 | 3.00 mm thick one piece welded RIM, diameter: 10 inch, width: 8.50 inch,

Enter the number of articles below and click

Ok

  • Get engineering support, also for small quantities.. Tooltip Let us help you design the wheel rim that will make the work-life of the end-user easier!
  • Short delivery times
  • Highest quality available
  • Ask us any colour you need

Request special product

Download PDF

Product information

  • Article code G68T5557BLA
  • SKU R_8.50X10.0F3.00_2__V___5557

Specifications
